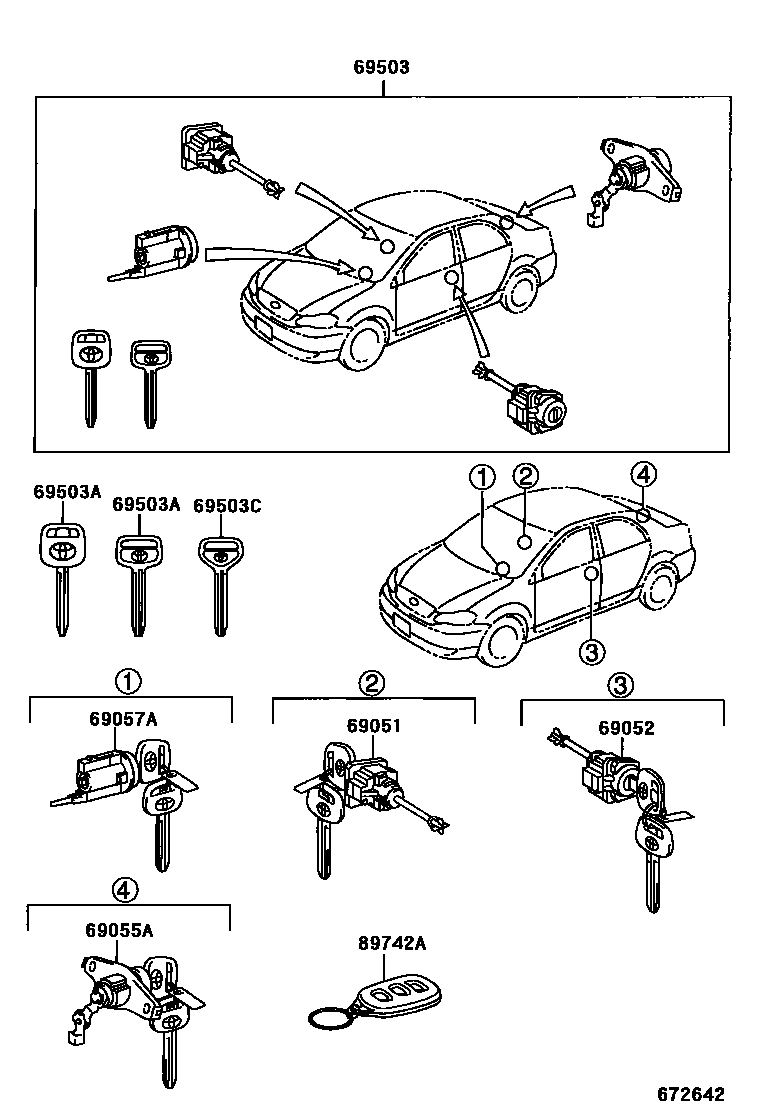

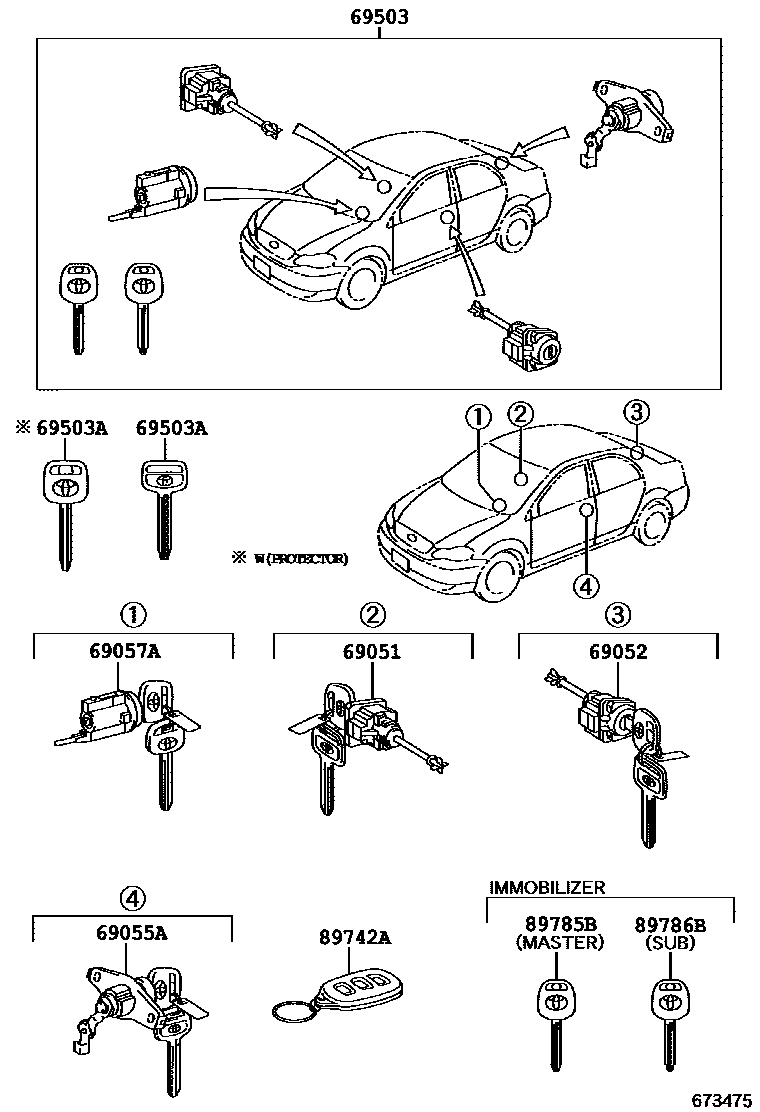

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-02090 |
| 69052 | Left door lock cylinder and key assembly | 69052-02080 |
| 69055A | Luggage lock cylinder and key assembly | 69055-02030 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02030 · 69057-02140 |
| 69503 | Door lock cylinder components | 69005-02080 · 69005-02120 · 69005-12B50 |
| 69503A | external tooth key | 90999-00186 · 90999-00199 |
| 69503C | Deputy key | 90999-00188 |
| 89742A | remote key | 89742-06010 |
| 89785B | transceiver key master transmitter | 89785-08020 |
| 89786B | transceiver key secondary transmitter | 89786-08020 |
