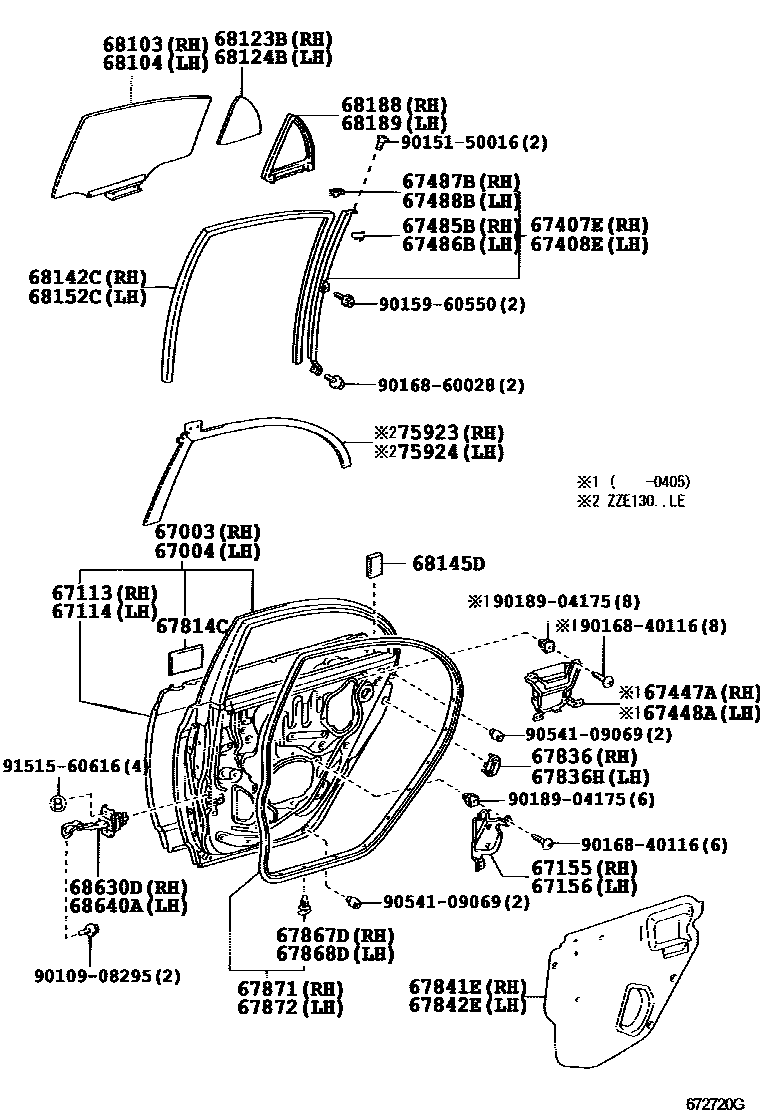

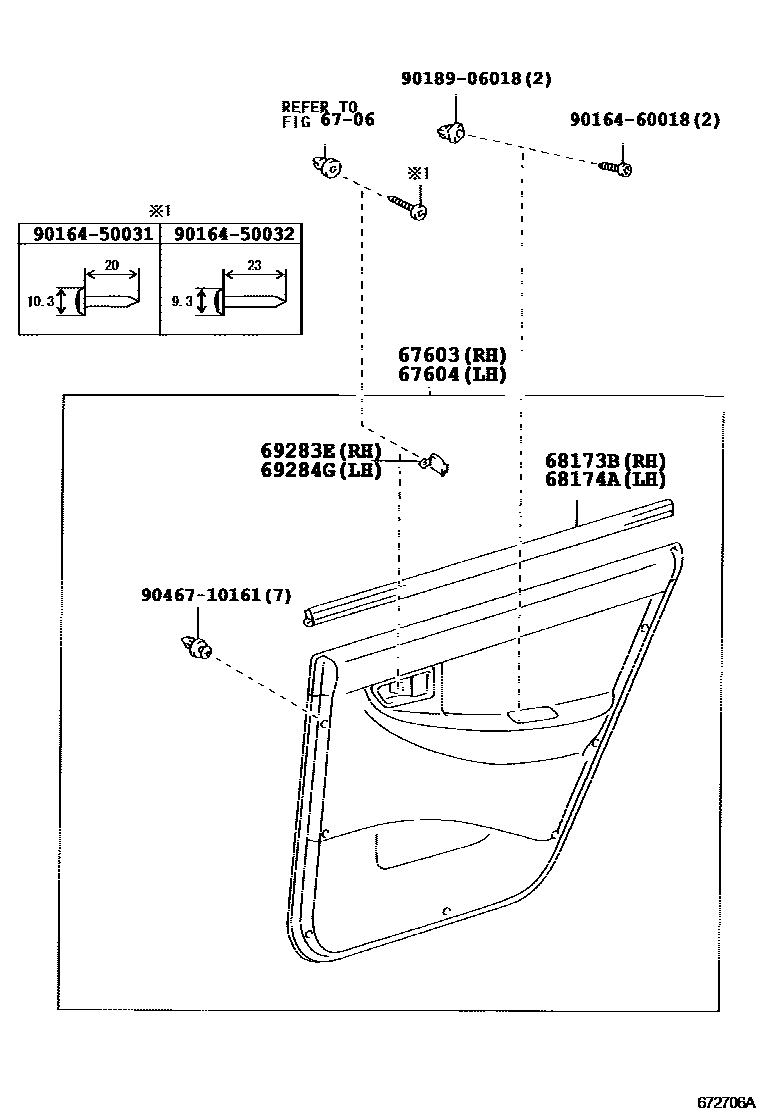

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-1A090 · 67003-1A100 |
| 67004 | Left rear door panel sub-assembly | 67004-1A090 · 67004-1A100 |
| 67113 | Right rear door outer panel | 67113-12270 |
| 67114 | Left rear door outer panel | 67114-12270 |
| 67155 | Right rear door inner panel reinforcement | 67155-02020 |
| 67156 | Left rear door inner panel reinforcement | 67156-02020 |
| 67407E | Right rear door window divider sub-assembly | 67407-12260 |
| 67408E | Left rear door window divider sub-assembly | 67408-12260 |
| 67447A | Right rear door inner panel | 67077-12011 |
| 67448A | Left rear door inner panel | 67078-12011 |
| 67485B | Right rear door divider inner seal | 67485-53010 |
| 67486B | Left rear door divider inner seal | 67486-53010 |
| 67487B | Right rear door divider seal | 67487-53010 |
| 67488B | Left rear door divider seal | 67488-53010 |
| 67814C | door guard seals | 67817-47010 |
| 67836 | Right rear door lock child restraint cover | 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-02090 · 67841-02120 |
| 67842E | Left rear door access hole cover | 67842-02070 · 67842-02120 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-12500 |
| 67872 | Left rear door sealing strip | 67872-12500 |
| 68103 | Right rear door glass sub-assembly | 68103-12700 · 68113-12680 · 68113-12690 · 68113-12720 |
| 68104 | Left rear door glass sub-assembly | 68104-12710 · 68114-12680 · 68114-12690 · 68114-12720 |
| 68123B | Right rear door corner window glass | 68123-12720 · 68123-12730 · 68123-12760 |
| 68124B | Left rear door corner window glass | 68124-12720 · 68124-12730 · 68124-12760 |
| 68142C | Right rear door glass lift slot | 68142-12240 |
| 68145D | Rear door window cushion | 69759-12110 |
| 68152C | Left rear door glass lift slot | 68152-12150 |
| 68173B | Right rear door glass inner sealing strip | 68173-02090 · 68173-12270 · 68173-12290 |
| 68174A | Left rear door glass inner sealing strip | 68174-02060 · 68174-12130 · 68174-12150 |
| 68188 | Right rear door corner window seal | 68188-12280 |
| 68189 | Left rear door corner window seal | 68189-12280 |
| 68630D | Right rear door opening limiter assembly | 68630-12070 · 68630-12071 |
| 68640A | Left rear door opening limiter assembly | 68640-12040 · 68640-12041 |
| 75923 | No. 2 right side light-shielding film | 75923-12011 · 75923-12012 |
| 75924 | No. 2 left shading film | 75924-12011 · 75924-12012 |
