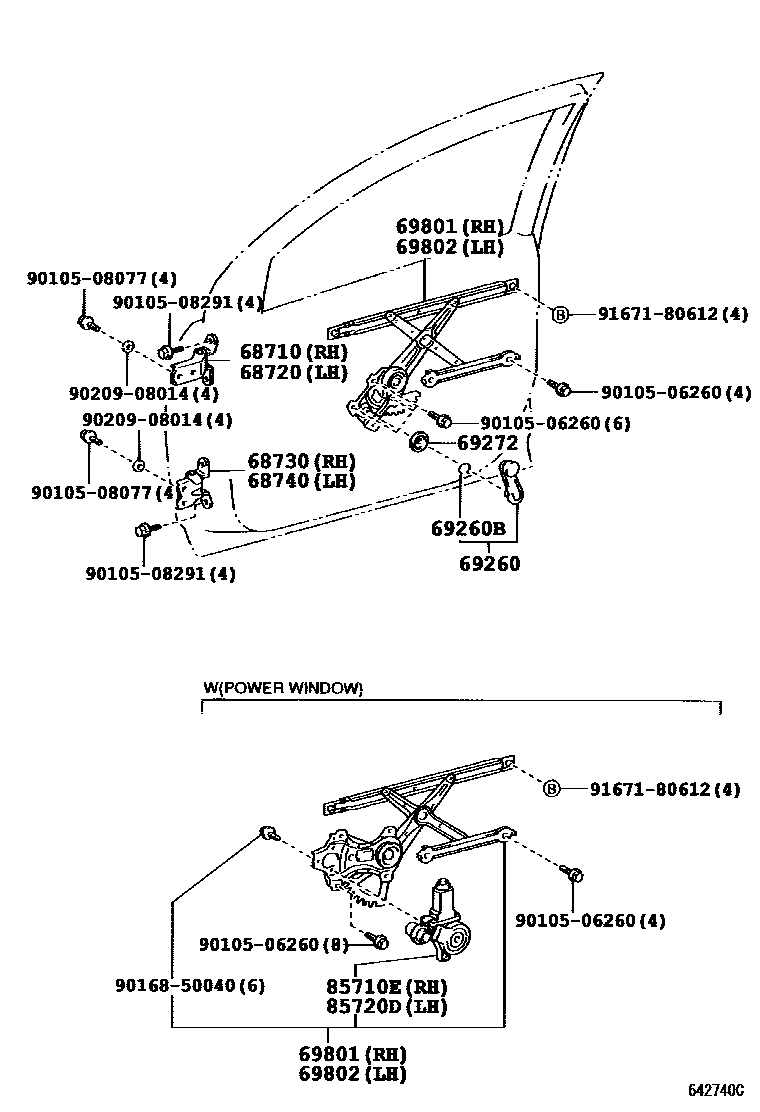

Toyota COROLLA 前门车窗升降器和合页 — Figure 6704
Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-12150 · 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-12150 · 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-52010 |
| 68740 | Left front door lower hinge assembly | 68740-52010 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90080-52001 |
| 69272 | Front door window lift inner handle plate | 69268-12020 |
| 69801 | Right front door window lifter sub-assembly | 69810-12600 · 69810-12610 · 69810-12730 |
| 69802 | Left front door window lifter sub-assembly | 69820-12550 · 69820-12590 · 69820-12710 |
| 85710E | Right power window lift motor assembly | 85710-AA050 |
| 85720D | Left electric window lift motor assembly | 85720-AA050 |
