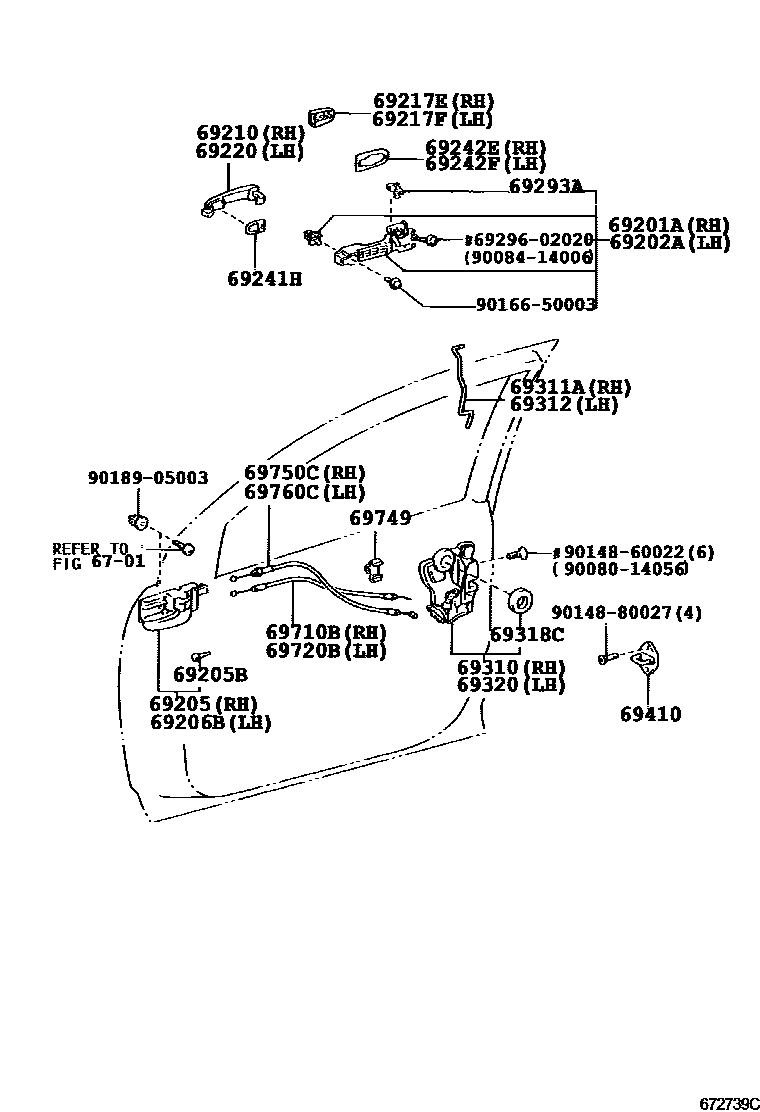

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69201A | Right front door outer handle frame sub-assembly | 69201-AA010 · 69201-AA011 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-AA010 · 69202-AA011 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69210 | Right front door outer handle assembly | 69211-02080 |
| 69217E | Right front door outer handle cover | 69227-02040 |
| 69217F | Left front door outer handle cover | 69227-02040 |
| 69220 | Left front door outer handle assembly | 69211-02080 |
| 69241H | Front door exterior handle pad | 69241-42020 · 69241-AA010 |
| 69242E | Front door rear outer handle pad | 69242-42010 |
| 69242F | Front door rear outer handle pad | 69242-42010 |
| 69293A | Front door outer handle buckle | 69293-33010 · 69293-33020 |
| 69310 | Right front door lock assembly | 69030-33221 · 69310-12660 |
| 69311A | Right front door lock opening lever | 69311-13020 |
| 69312 | Left front door lock opening lever | 69312-13020 |
| 69318C | door lock harness seal | 69318-51010 |
| 69320 | Left front door lock assembly | 69040-33221 · 69320-12650 |
| 69410 | Front door lock plate assembly | 69410-20110 · 69410-33010 |
| 69710B | Right front door lock remote control cable assembly | 69710-02020 |
| 69720B | Left front door lock remote control cable assembly | 69710-02020 |
| 69749 | Front door lock link clip | 69749-32040 |
| 69750C | Right front door inner lock cable assembly | 69750-02030 |
| 69760C | Left front door inner lock cable assembly | 69760-02030 |
