Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

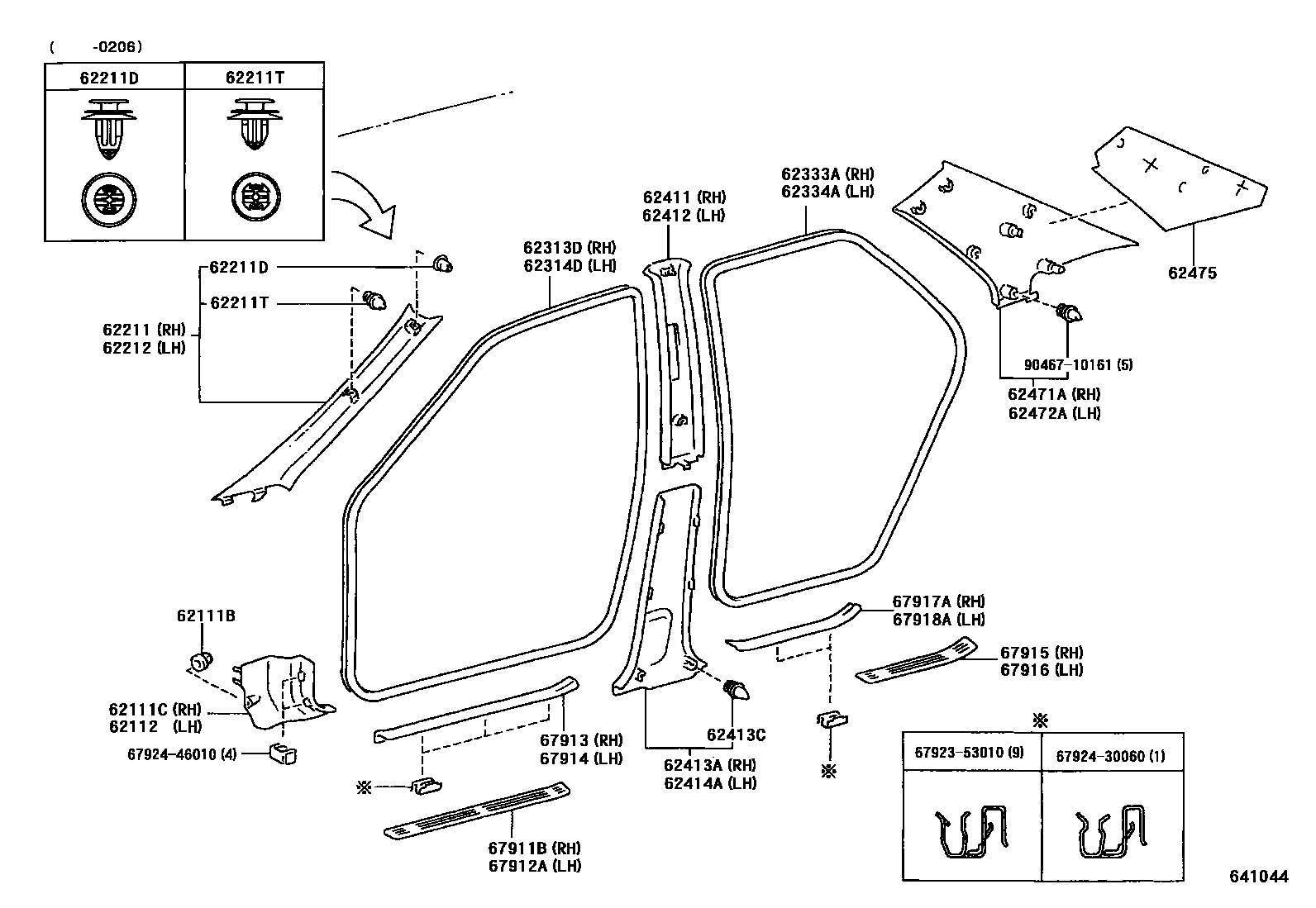

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06120 |
| 62211D | Clip (for body front pillar decorative panel) | 67771-12080 · 90467-10188 |
| 62211T | Clip (for front pillar decorative panel) | 62217-13010 · 90467-10192 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62475 | Roof side interior trim panel lining | 62475-12140 |
| 67911B | Right front door outer wear plate | 67911-02040 · 67911-02120 |
| 67912A | Left front door outer wear plate | 67912-02040 · 67912-02080 |
| 67915 | Right rear door outer wear plate | 67915-02030 · 67915-02070 |
| 67916 | Left rear door outer wear plate | 67916-02030 · 67916-02070 |
