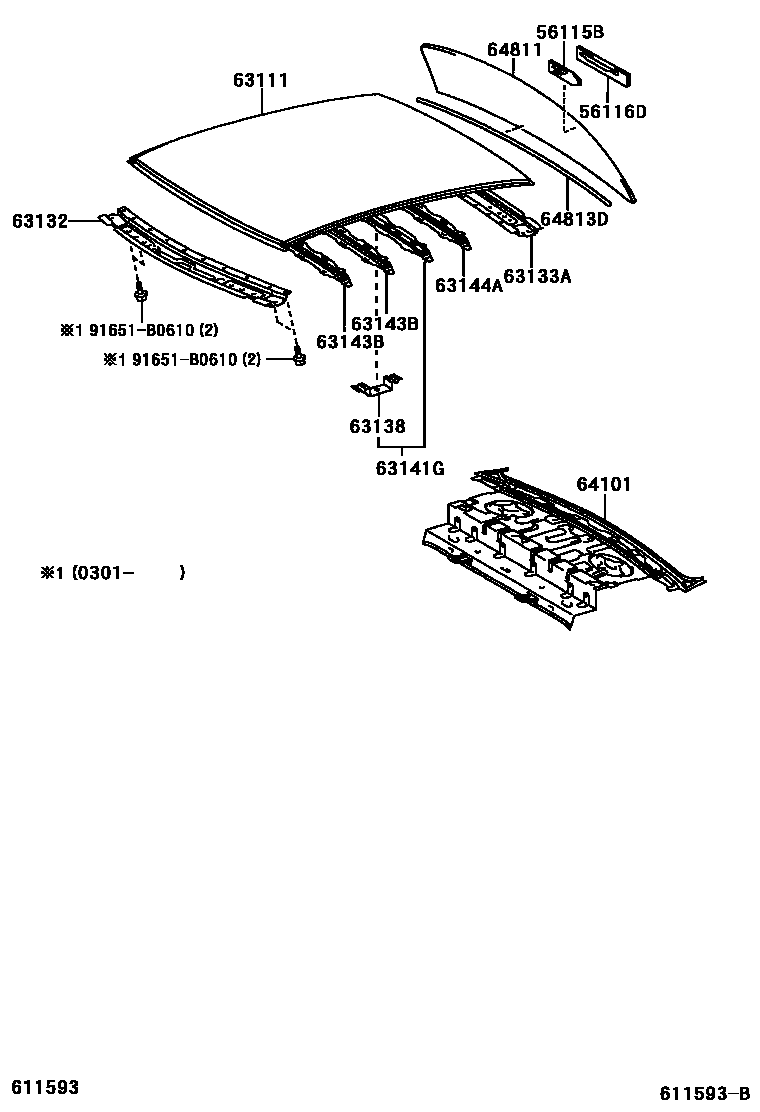

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30100 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63111 | roof panel | 63111-12800 |
| 63132 | Windshield inner roof panel | 63132-12261 · 63132-12310 |
| 63133A | upper frame of back window | 63133-12260 · 63133-12271 |
| 63138 | No. 2 ceiling light bracket | 63138-02010 |
| 63141G | No. 1 roof panel reinforcement | 63106-02010 |
| 63143B | No. 3 roof panel reinforcement | 63143-12100 |
| 63144A | No. 4 roof panel reinforcement | 63144-12080 |
| 64101 | Upper back panel sub-assembly | 64101-12820 |
| 64811 | back window glass | 64811-12A10 · 64811-1E350 |
| 64813D | Back window glass adhesive seal | 56117-12240 · 56117-47010 |
