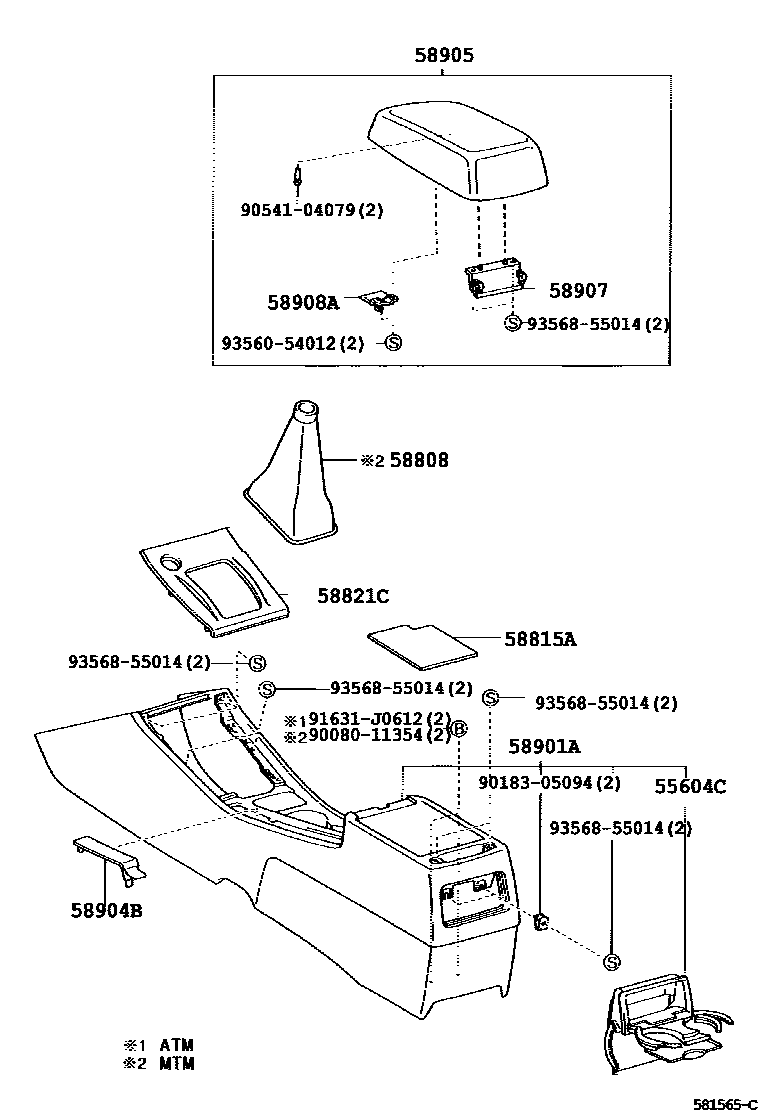

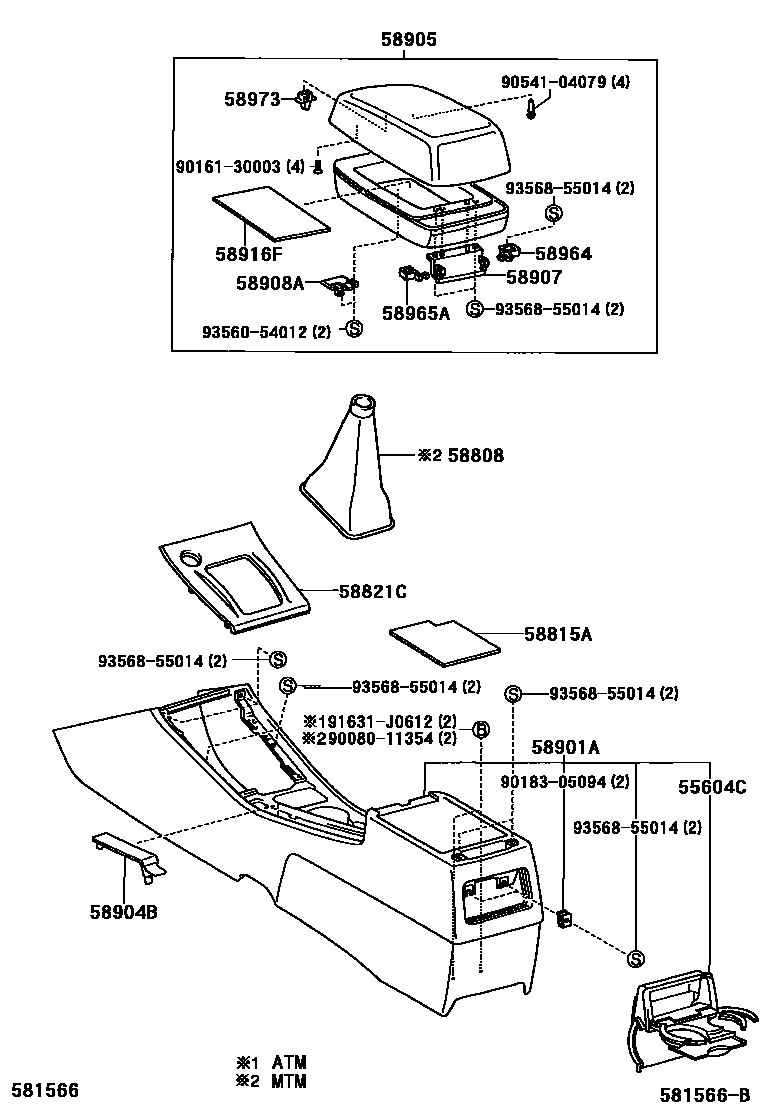

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58815A | Armrest box felt pad | 58815-02030 · 58815-12090 |
| 58821C | Armrest box upper panel | 58821-02190 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-02020 · 58907-12070 |
| 58908A | Armrest box lid lock assembly | 58908-02020 · 58908-33030 |
| 58916F | Armrest box bottom pad No. 1 | 58916-02060 · 58916-12090 |
| 58964 | Armrest box cover No. 1 stop | 58964-02060 · 58964-20040 |
| 58965A | Armrest box cover No. 2 stopper | 58965-02060 · 58965-20050 |
| 58973 | Armrest box lid lock pin | 58973-02020 · 58973-34010 |
