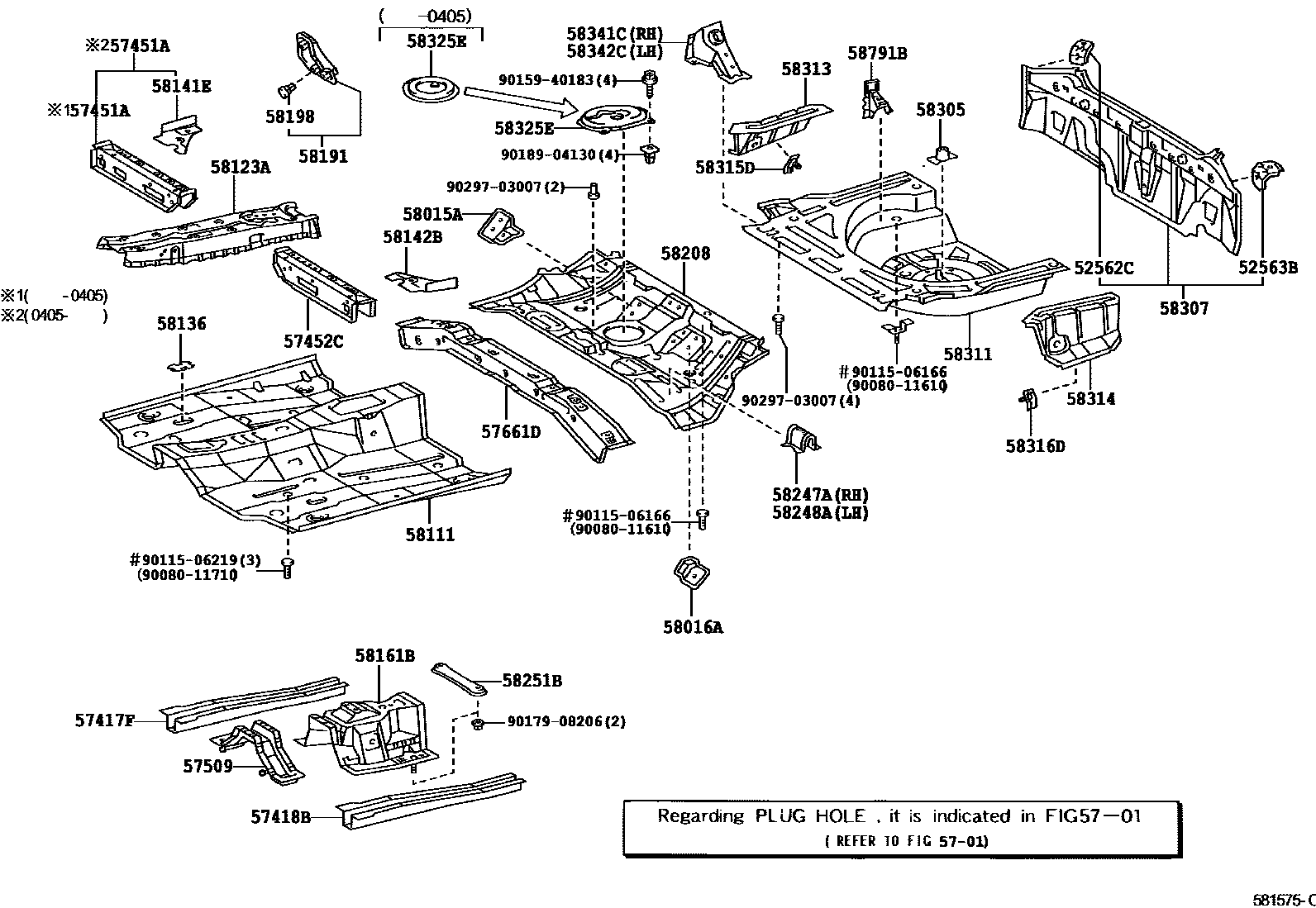

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562C | Rear bumper upper right fixing bracket | 52562-02020 |
| 52563B | Rear bumper upper left fixing bracket | 52562-02020 |
| 57417F | Front floor lower right reinforcement | 57417-13020 |
| 57418B | Front floor lower left reinforcement | 57418-13020 |
| 57451A | Front floor right cross member | 57051-12902 · 57451-01020 |
| 57452C | Front floor left cross member | 57452-01010 |
| 57509 | Front floor center reinforcement sub-assembly | 57509-12050 |
| 57661D | rear floor front cross member | 57661-02050 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02020 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-02040 |
| 58111 | front floor pan | 58111-12281 · 58111-12902 |
| 58123A | shift lever bracket | 58013-12040 |
| 58136 | Front floor hole cover | 58136-33010 |
| 58141E | Right front longitudinal beam to floor panel reinforcement | 58141-13040 |
| 58142B | Left front longitudinal beam to floor panel reinforcement | 58142-13020 |
| 58161B | Seat belt anchor to floor pan reinforcement | 57805-12120 |
| 58191 | Front floor footrest | 58192-12070 |
| 58198 | Footrest clip | 58198-20210 · 90467-09220 |
| 58208 | central floor base | 58211-02130 · 58211-02140 · 58211-02170 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-12070 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-12070 |
| 58251B | front floor bracket | 58251-12030 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-12A10 · 58307-1A660 |
| 58311 | rear floor pan | 58311-02904 |
| 58313 | Rear floor right panel | 58313-02040 |
| 58314 | rear floor left panel | 58314-02040 |
| 58315D | Rear floor pan right extension | 58315-12080 |
| 58316D | Rear floor pan left extension | 58316-12080 |
| 58325E | Rear floor access hole cover | 58325-02060 · 58325-02071 |
| 58341C | No. 1 right rear shock absorber mounting bracket | 58341-02030 |
| 58342C | No. 1 left rear shock absorber mounting bracket | 58342-02030 |
| 58791B | jack bracket | 58791-12200 |
