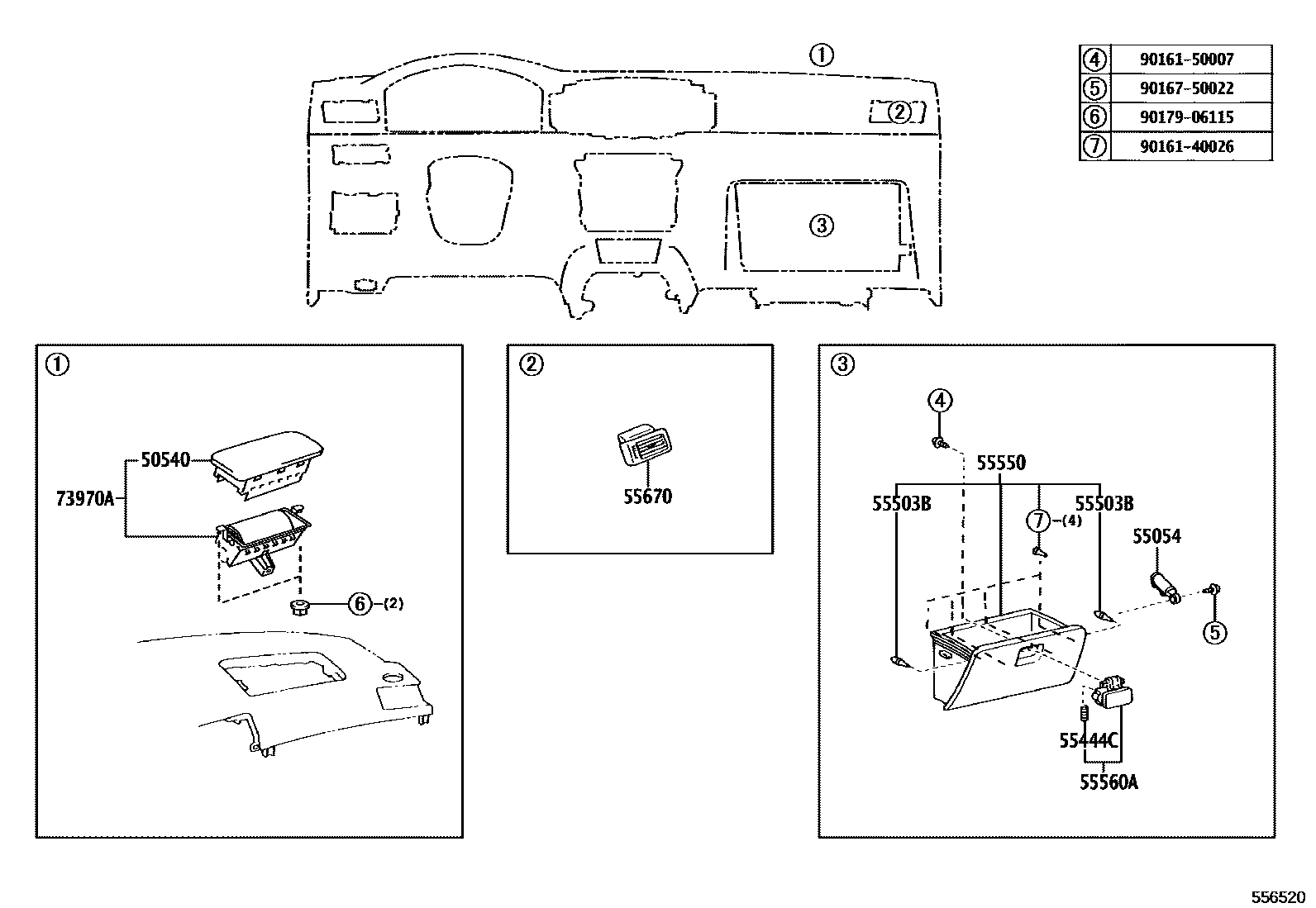

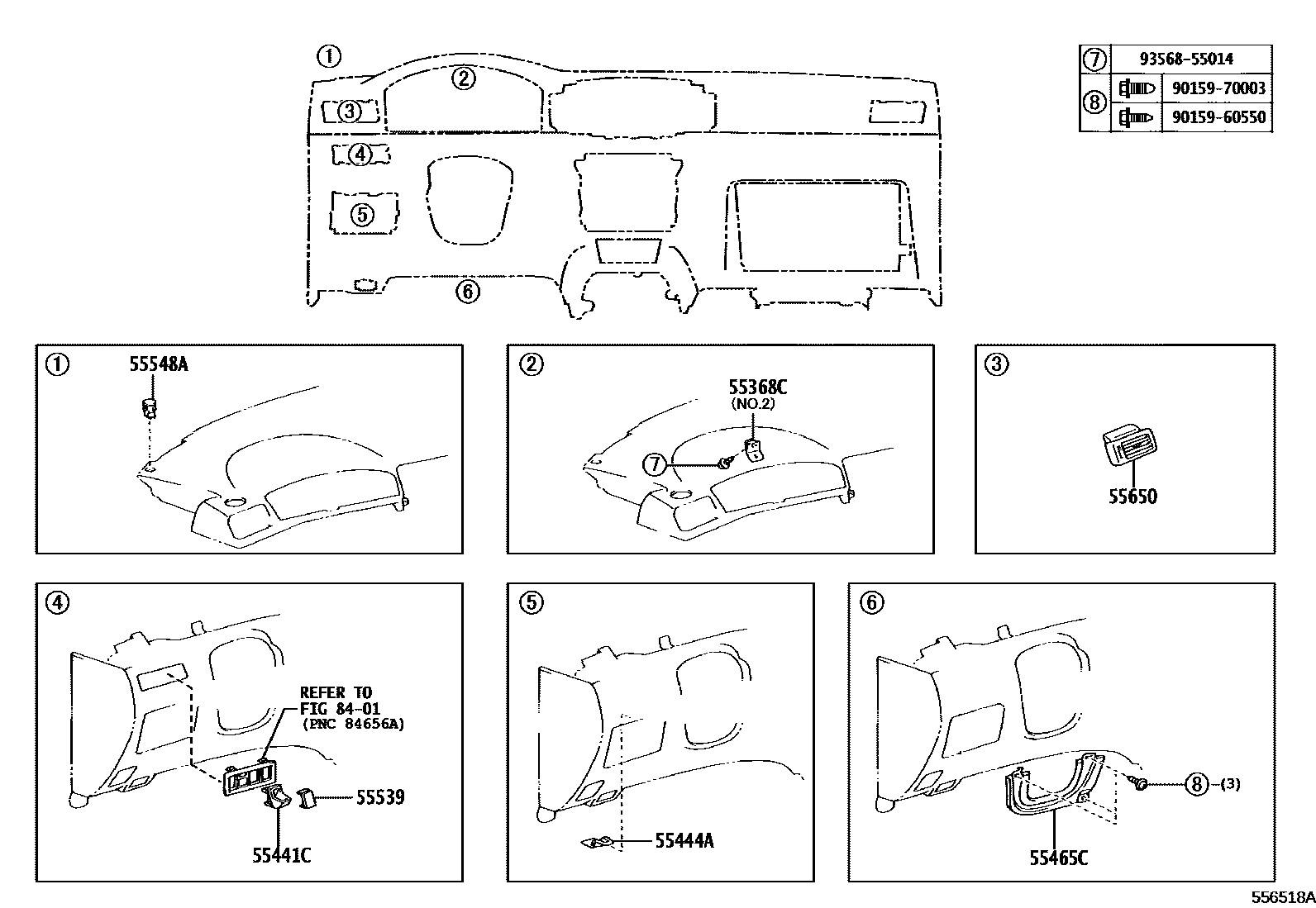

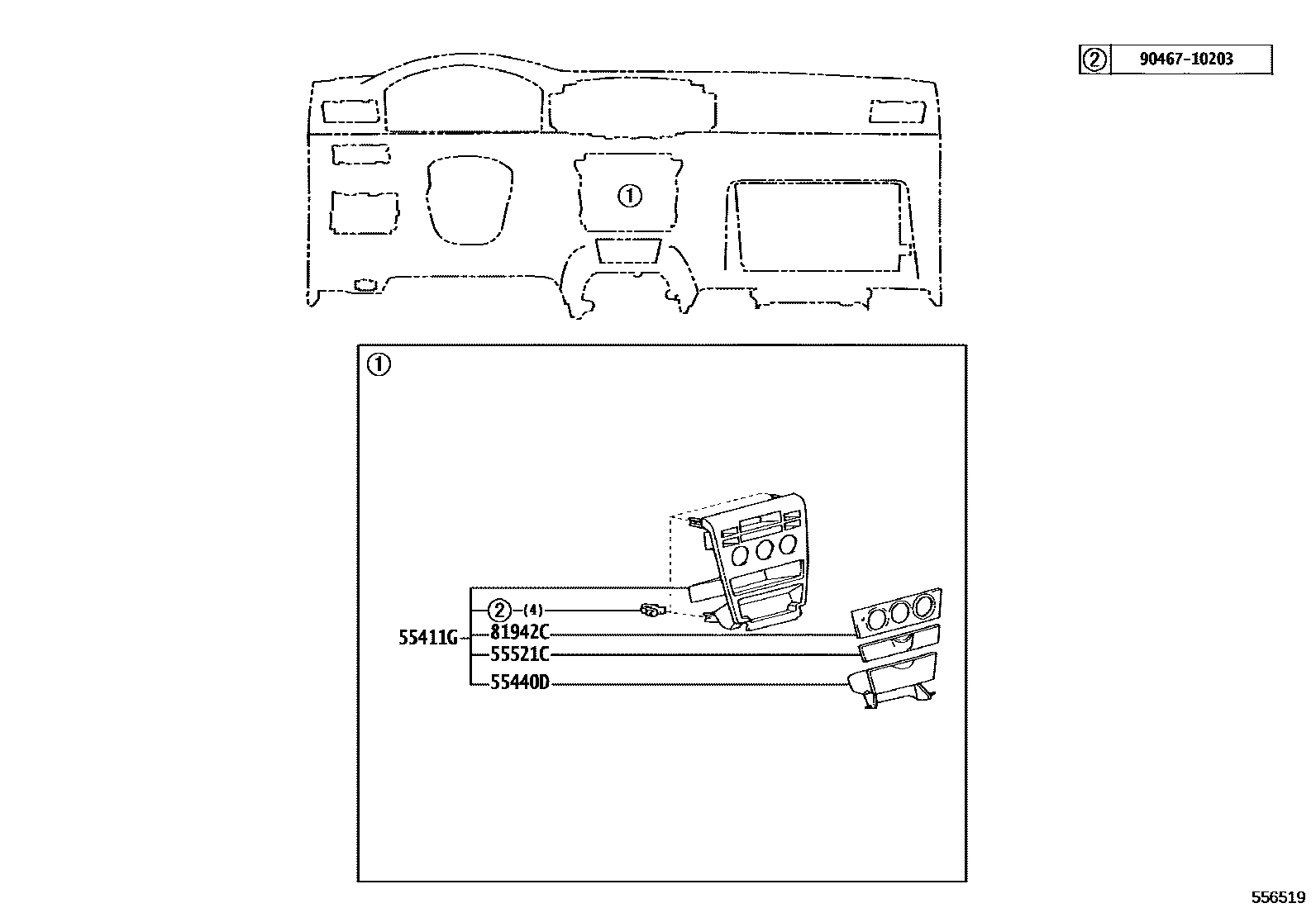

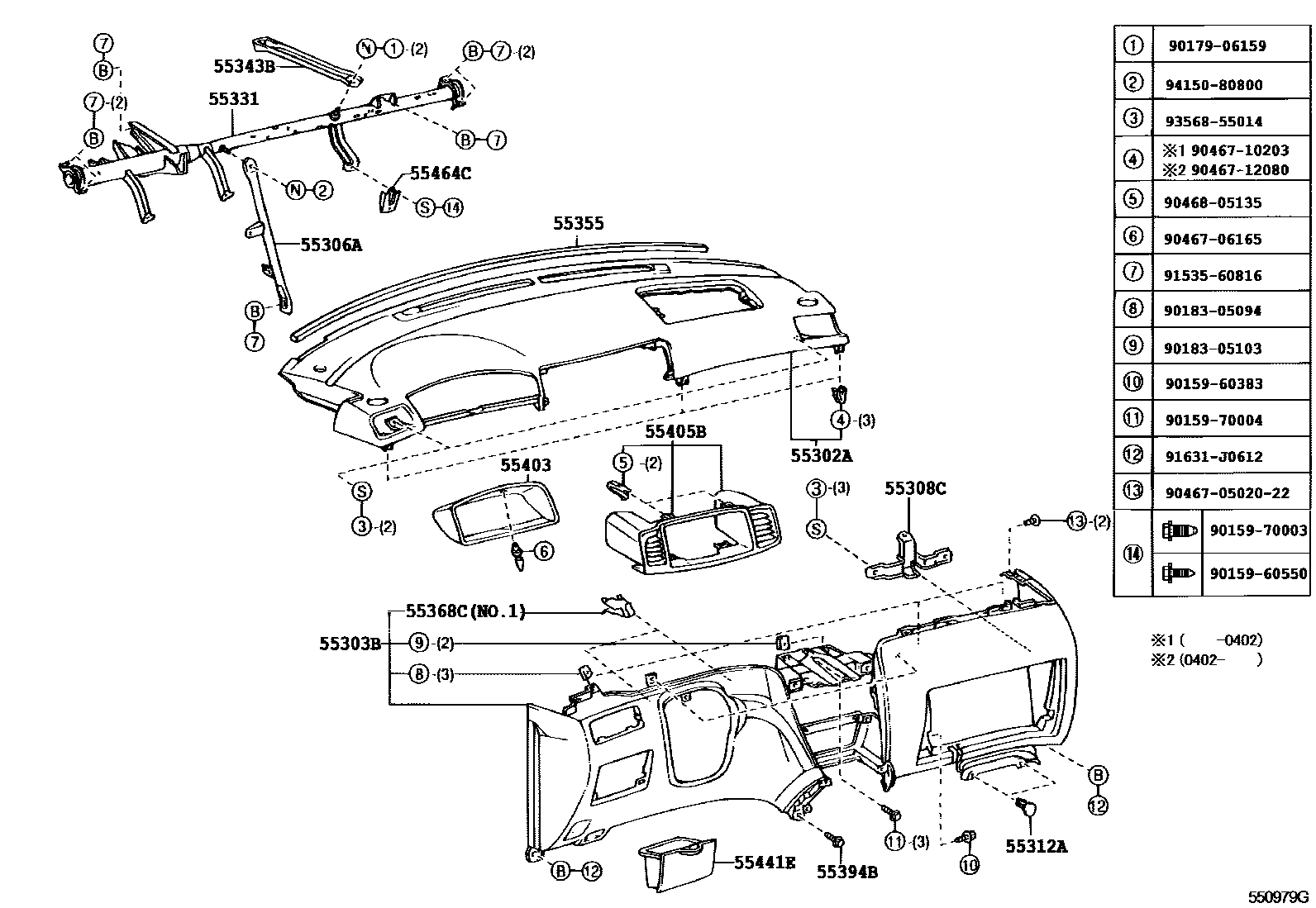

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02140 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-02120 · 55308-02121 |
| 55331 | Dashboard reinforcement | 55330-12450 · 55330-12540 · 55330-12541 · 55330-12542 |
| 55343B | Center bracket (dashboard to cowl) | 55343-12060 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-52012 |
| 55368C | Instrument mounting bracket | 55362-12050 · 55368-12090 |
| 55394B | Dashboard bolts | 55394-12020 |
| 55403 | Instrument cover sub-assembly | 55403-02080 |
| 55440D | Dashboard storage box assembly | 55440-02020 · 55440-02021 |
| 55444A | Dashboard storage box spring | 55444-12080 · 55444-13040 |
| 55444C | Dashboard storage box spring | 55444-02030 |
| 55464C | Dashboard lower right pad insert | 55464-02030 |
| 55465C | Dashboard lower left pad insert | 55465-02020 |
| 55503B | Cushion pad (for glove box) | 90080-54038 |
| 55521C | stereo system hole cover | 55520-02100 |
| 81942C | Heater control nameplate | 81942-02200 · 81942-02201 |
