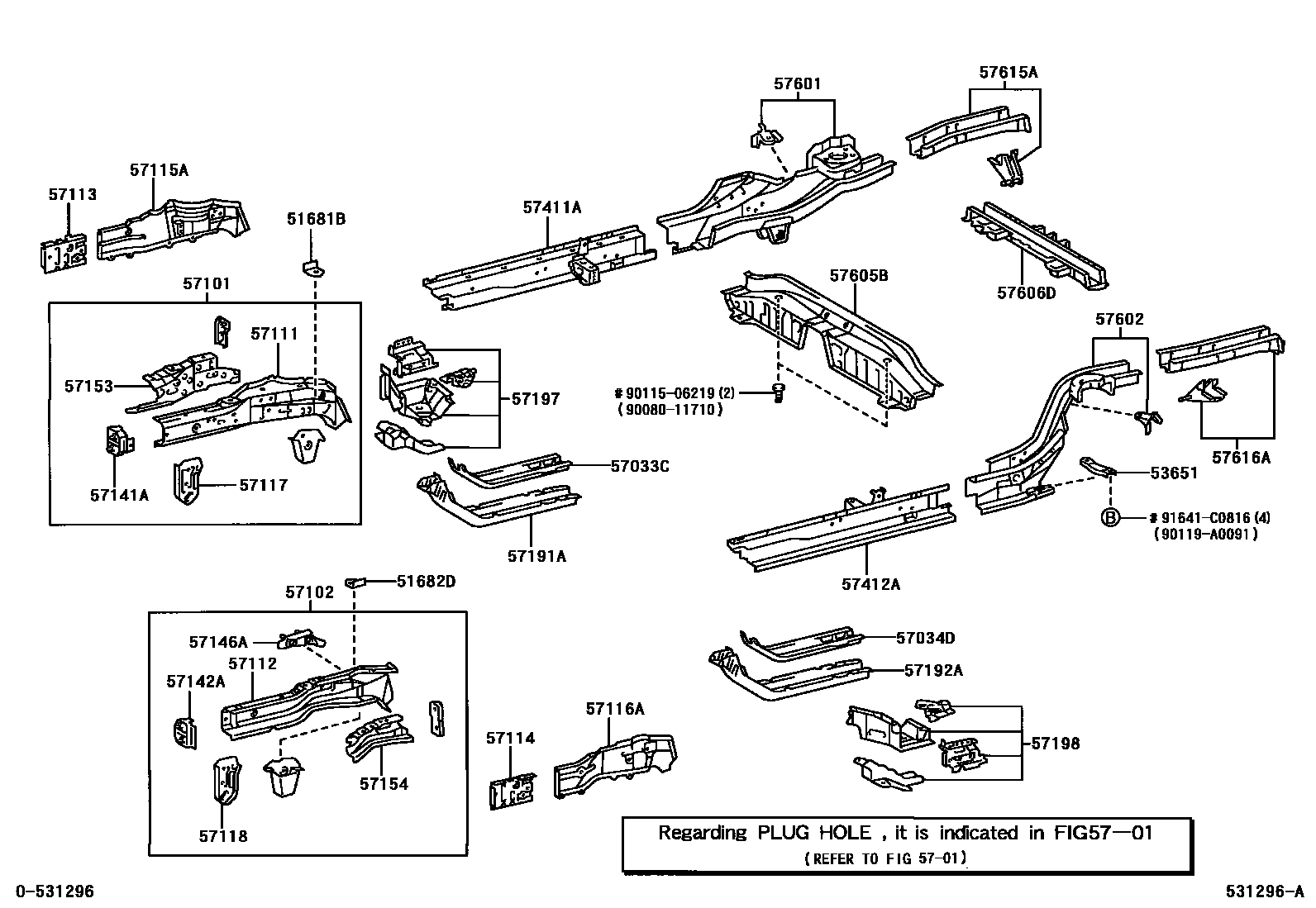

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51681B | Right front wheel brake flexible hose support plate | 51681-32050 |
| 51682D | Left front wheel brake flexible hose support plate | 51682-32040 |
| 53651 | Rear floor longitudinal beam bracket | 53651-32010 |
| 57033C | No. 3 right front longitudinal beam reinforcement sub-assembly | 57033-13010 |
| 57034D | No. 3 left front longitudinal beam reinforcement sub-assembly | 57034-13010 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-02902 |
| 57102 | Left front longitudinal beam sub-assembly | 57112-1A900 |
| 57111 | Right front longitudinal beam | 57111-02050 |
| 57112 | Left front longitudinal beam | 57112-02080 |
| 57113 | Right front longitudinal beam extension | 57113-02040 |
| 57114 | Left front longitudinal beam extension | 57114-02040 |
| 57115A | Right front longitudinal beam outer panel | 57115-12080 |
| 57116A | Left front longitudinal beam outer panel | 57116-12080 |
| 57117 | Right front longitudinal beam front plate sub-assembly | 57117-12130 |
| 57118 | Left front longitudinal beam front plate sub-assembly | 57118-12130 |
| 57141A | Front bumper arm right bracket | 57141-02020 |
| 57142A | Front bumper arm left bracket | 57142-02010 |
| 57146A | Left front longitudinal beam rear reinforcement | 57146-12020 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57016-13020 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57017-12060 |
| 57191A | Right rear longitudinal member inside front floor | 57191-13010 |
| 57192A | Left rear longitudinal member inside front floor | 57192-13010 |
| 57197 | Right front torsion box section piece | 57197-12900 |
| 57198 | Left front anti-torsion box section piece | 57198-12900 |
| 57411A | Floor right inner longitudinal beam | 57401-12590 |
| 57412A | Floor left inner longitudinal beam | 57402-12600 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-02914 · 57601-1A912 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-02911 · 57602-1A912 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-12240 |
| 57606D | Rear shock absorber mounting beam sub-assembly | 57606-12180 · 57606-12181 · 57606-13151 |
| 57615A | Rear floor right rear longitudinal member | 57615-12910 |
| 57616A | Rear floor left rear longitudinal member | 57616-02907 |
