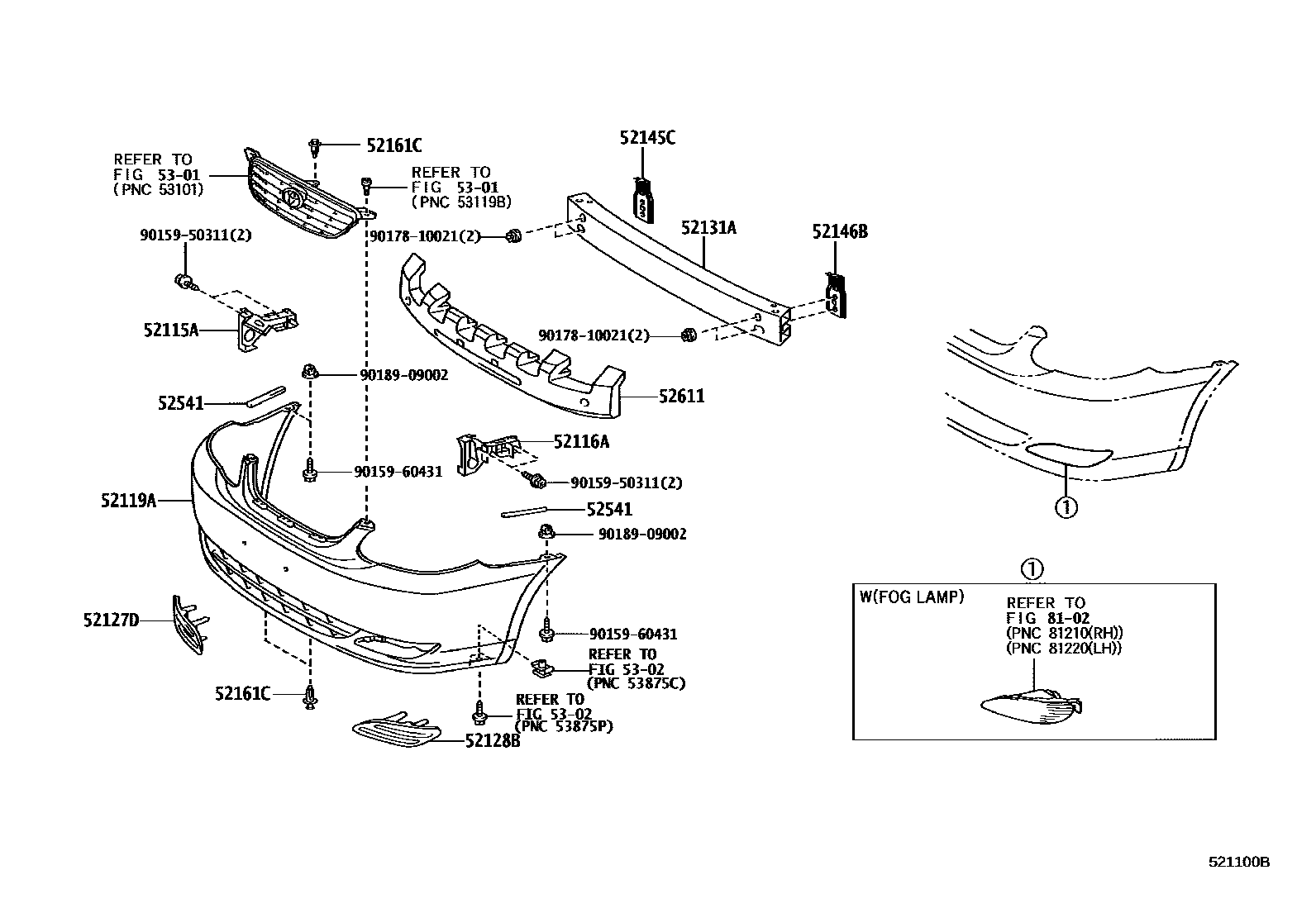

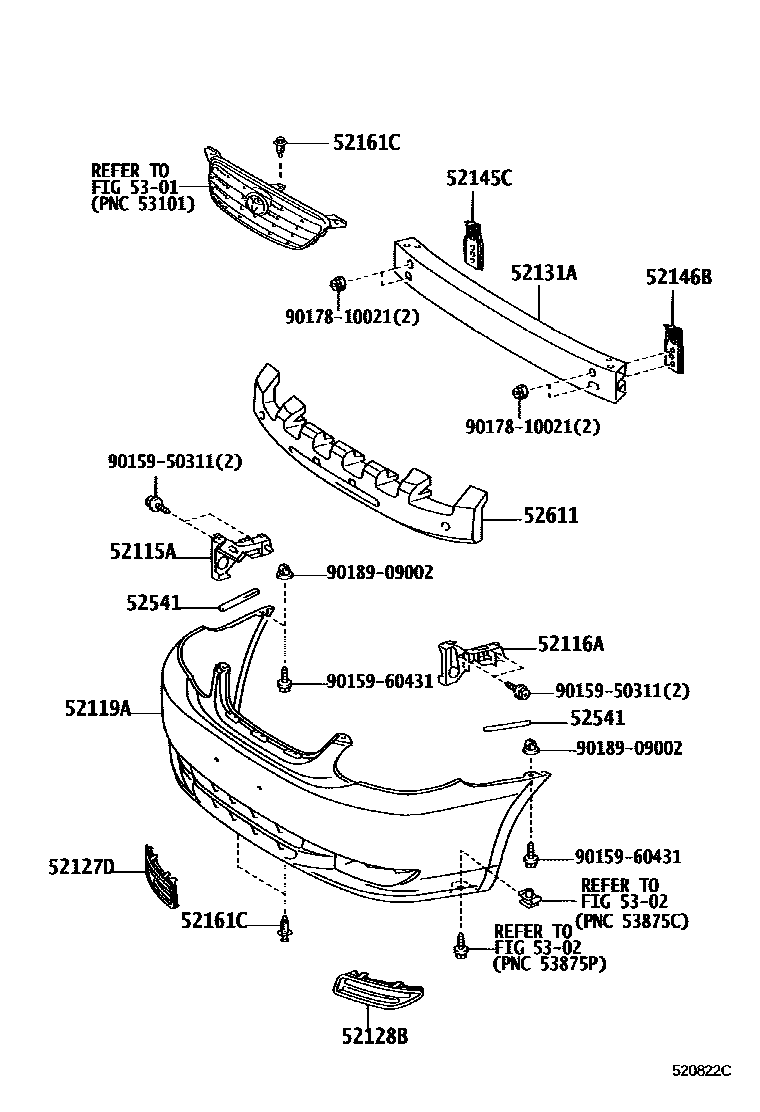

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52115A | Front bumper right side bracket | 52115-02060 · 52115-02061 |
| 52116A | Front bumper left bracket | 52116-02060 · 52116-02061 |
| 52119A | front bumper cover | 52119-12928 · 52119-1E922 |
| 52127D | Front bumper right hole cover | 52127-02070 · 52127-02170 |
| 52128B | Front bumper left hole cover | 52128-02060 · 52128-02200 |
| 52131A | Front bumper reinforcement | 52021-12210 |
| 52145C | Front bumper right side mounting bracket | 52145-02080 |
| 52146B | Front bumper left mounting bracket | 52146-02070 |
| 52161C | front bumper insert | 52161-16010 |
| 52541 | front bumper protector | 52541-02020 |
| 52611 | front bumper energy absorber | 52611-02070 · 52611-12160 |
