Toyota COROLLA 制动配管和卡箍 — Figure 4708

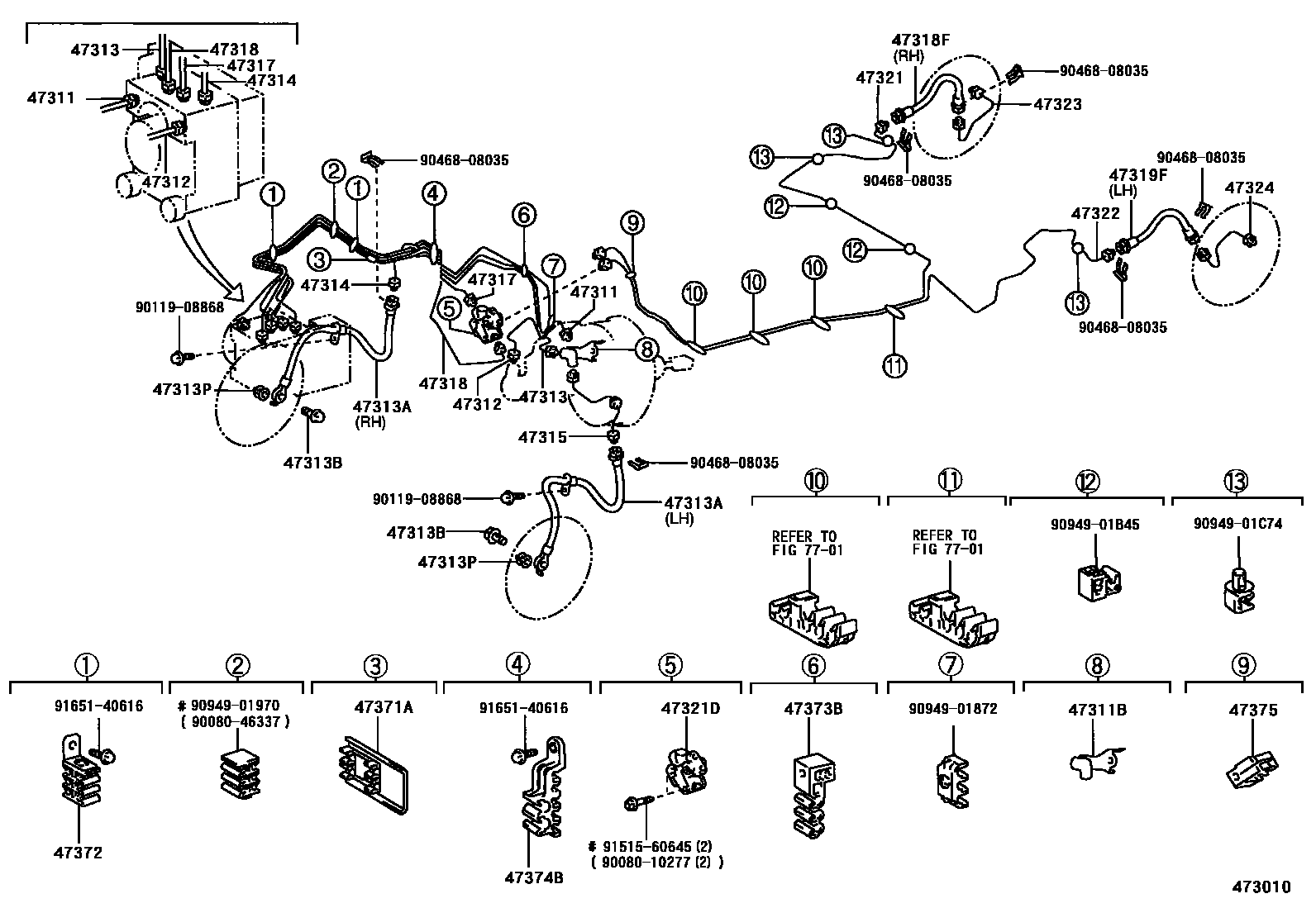

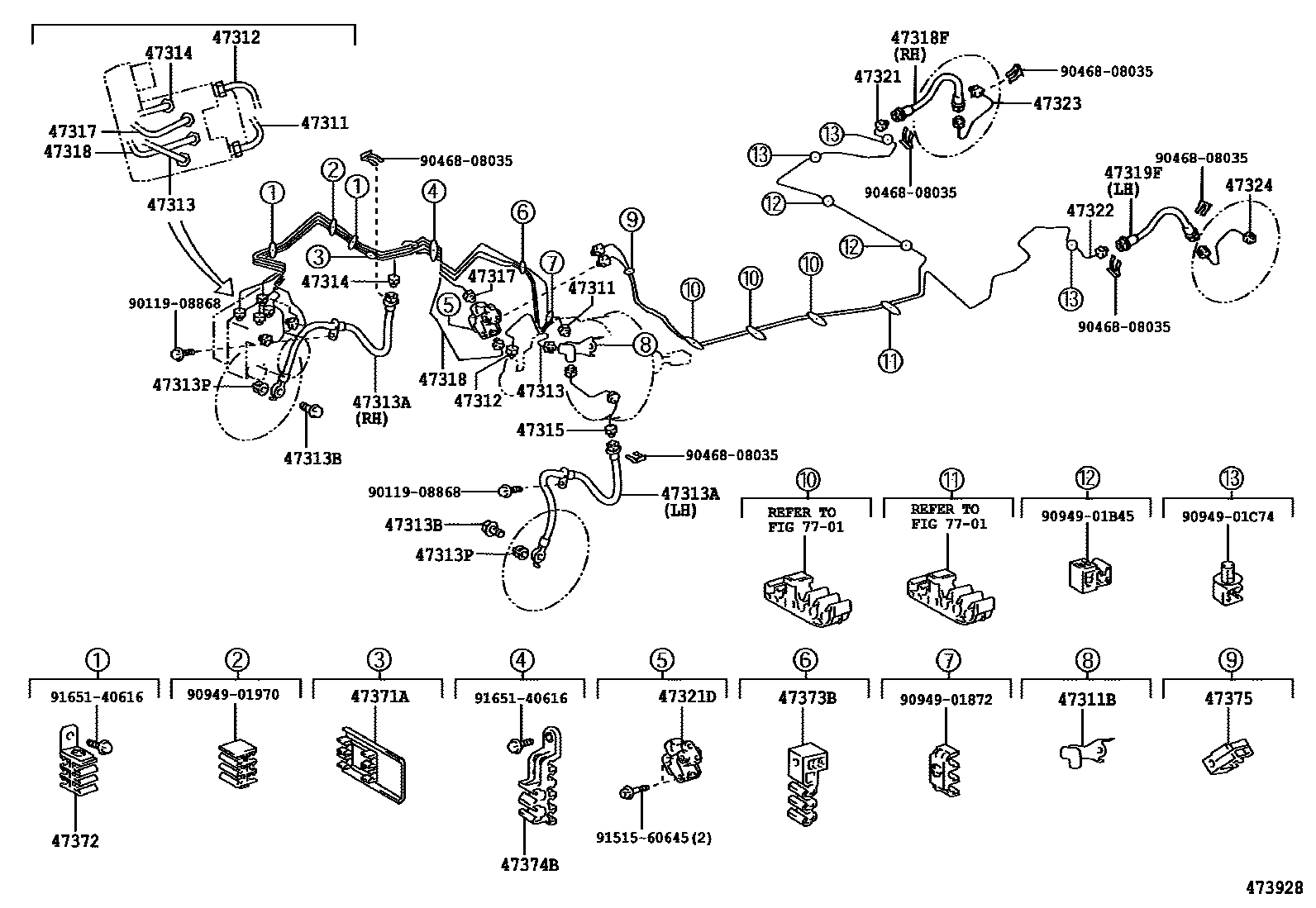

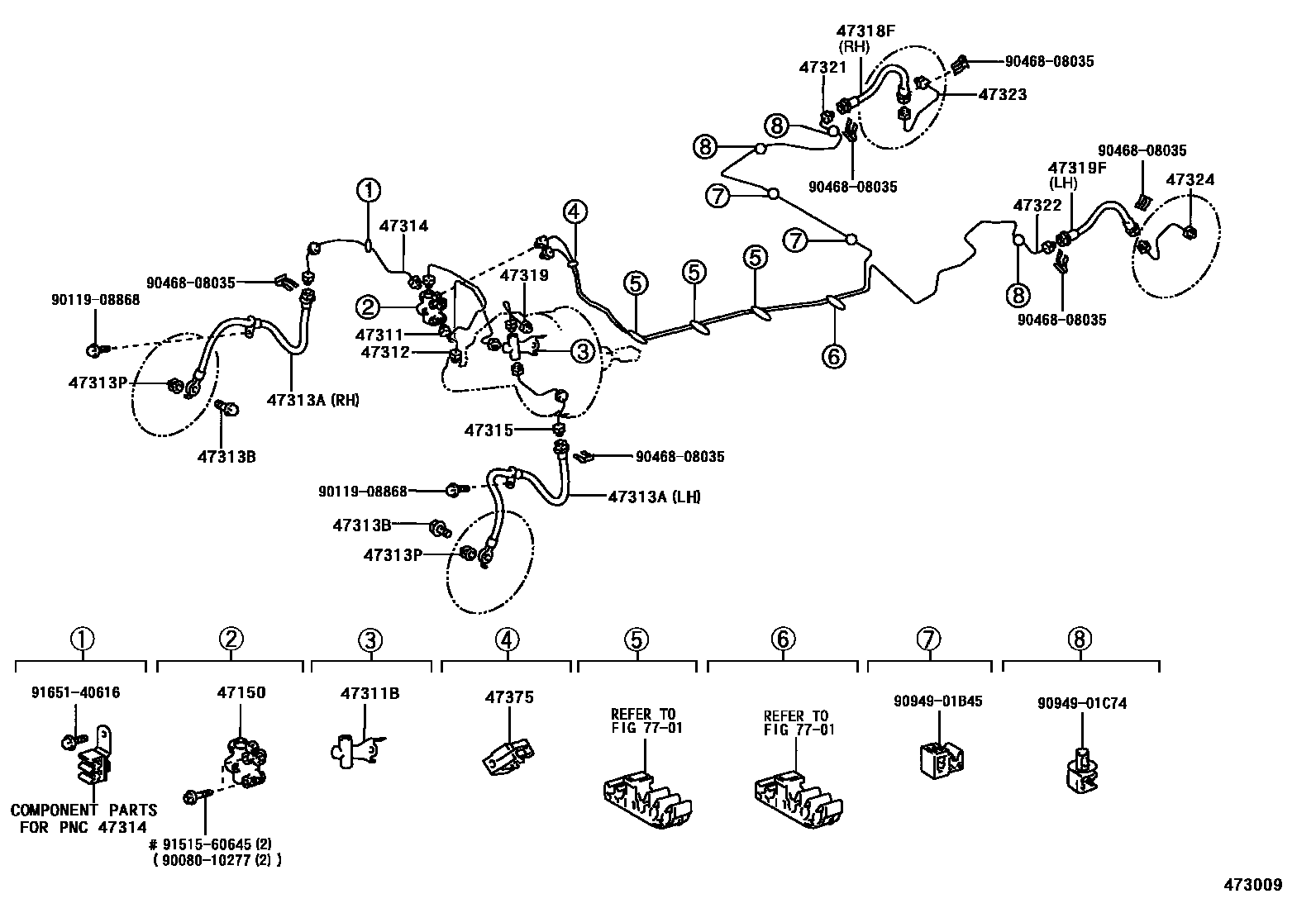

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

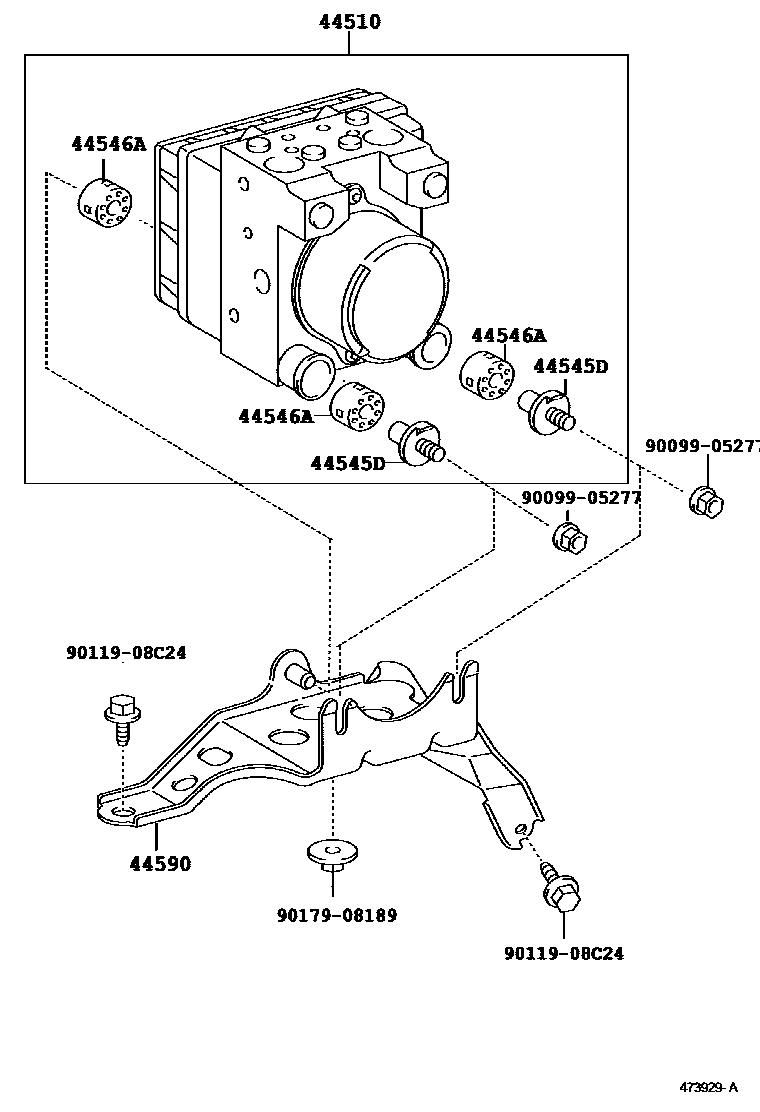

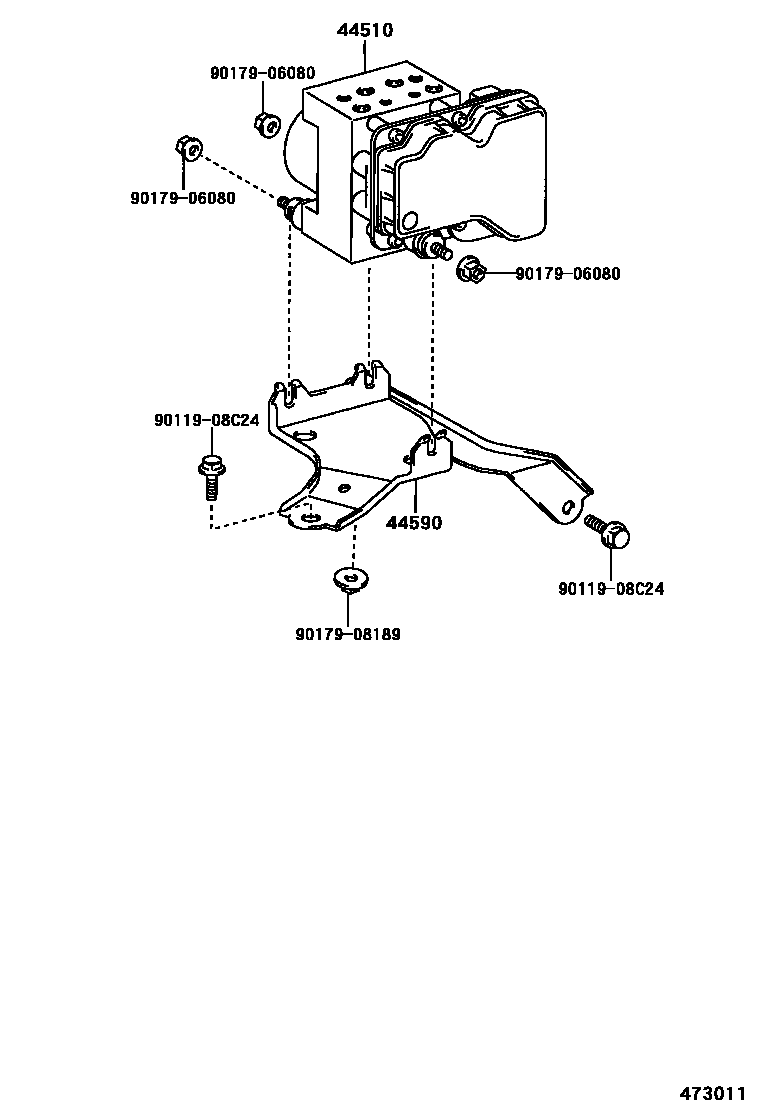

| 44510 | brake actuator assembly | 44050-02060 · 44050-02130 |
| 44545D | Brake actuator bolt mount | 44545-0C050 |
| 44546A | Brake actuator bolt cushion | 44546-0C050 |
| 44590 | Brake actuator bracket assembly | 44590-02040 · 44590-02100 |
| 47150 | Proportional valve assembly | 47150-12260 |
| 47311 | No. 1 front brake pipe | 47311-12880 · 47311-12890 · 47311-1A040 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90904-12051 · 90904-13067 |
| 47312 | No. 2 front brake pipe | 47312-12470 · 47312-12480 · 47312-12500 |
| 47313 | No. 3 front brake pipe | 47313-12650 · 47313-12670 |
| 47313A | No. 1 front flexible hose | 90080-94136 · 90080-94137 · 90947-02C47 · 90947-02C48 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-12480 · 47314-12530 · 47314-12550 |
| 47315 | No. 5 front brake pipe | 47315-12600 |
| 47317 | No. 7 front brake pipe | 47317-12290 · 47317-12310 |
| 47318 | No. 8 front brake pipe | 47318-12430 · 47318-12450 |
| 47318F | Right rear flexible hose | 90080-94139 · 90947-02C49 |
| 47319 | No. 9 front brake pipe | 47319-02030 |
| 47319F | Left rear flexible hose | 90080-94139 · 90947-02C49 |
| 47321 | No. 1 rear brake pipe | 47321-12250 · 47321-12270 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90904-12088 |
| 47322 | No. 2 rear brake pipe | 47322-12420 · 47322-12440 |
| 47323 | No. 3 rear brake pipe | 47323-63010 |
| 47324 | No. 4 rear brake pipe | 47324-63010 |
| 47371A | No. 1 brake pipe clamp | 47371-12230 |
| 47372 | No. 2 brake pipe clamp | 47374-12050 |
| 47373B | No. 3 brake pipe clamp | 47371-52010 |
| 47374B | No. 4 brake pipe clamp | 47372-52010 |
| 47375 | No. 5 brake pipe clamp | 77299-32030 |
