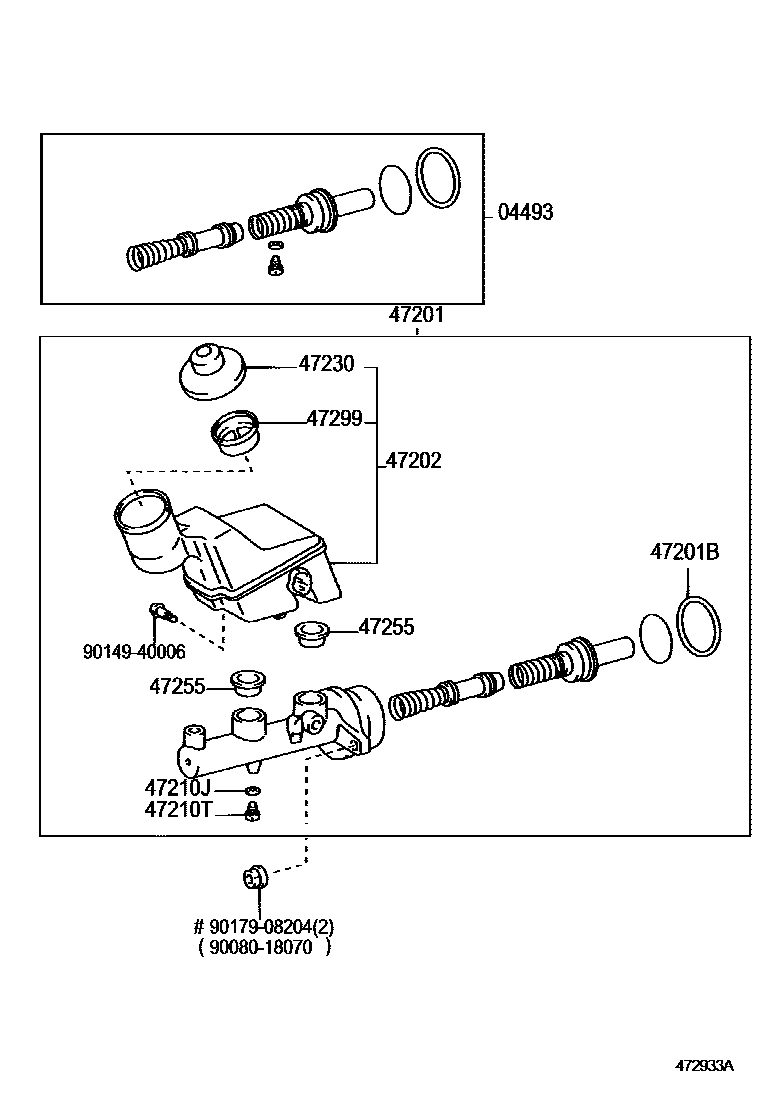

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-01020 |
| 47201 | Brake master cylinder sub-assembly | 47201-02290 · 47201-02300 · 47201-02310 · 47201-02320 |
| 47201B | O-ring (for brake master cylinder) | 90029-20059 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-02130 · 47220-02140 |
| 47210J | Gasket (for master cylinder) | 90029-43001 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-01030 |
| 47255 | Master pump reservoir seal | 47255-03010 |
| 47299 | Brake master cylinder reservoir filter | 47299-25010 |
