Toyota COROLLA Front Drive Shaft — Figure 4302

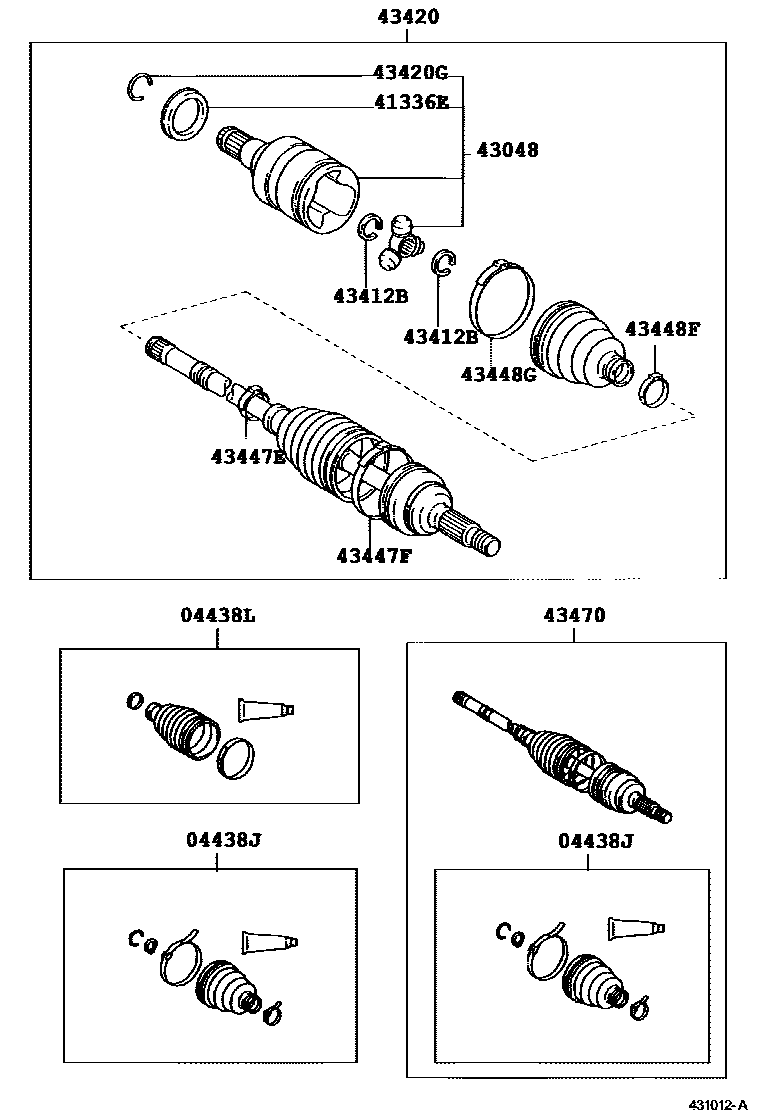

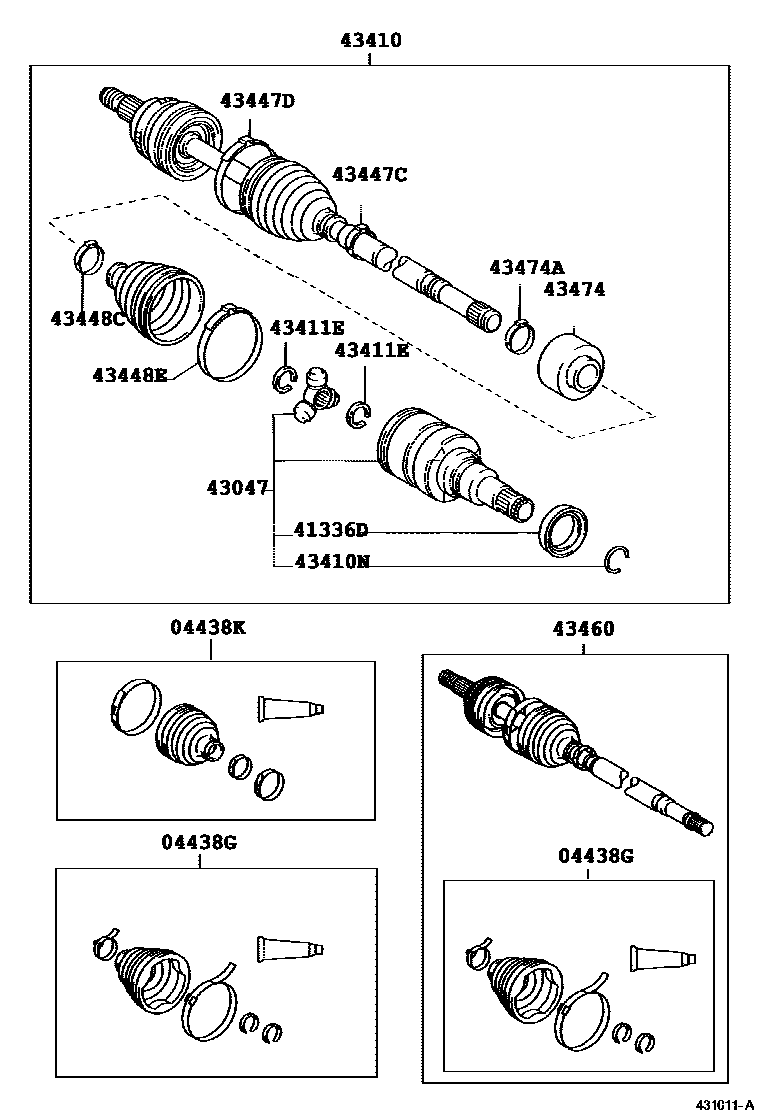

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-02180 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-02180 |
| 04438K | Right front drive shaft outer universal joint dust boot assembly | 04438-01080 |
| 04438L | Left front drive shaft outer universal joint dust boot assembly | 04438-01080 |
| 41336D | Right front driveshaft dust cover | 41336-01010 · 41336-02030 |
| 41336E | Left front driveshaft dust cover | 41336-01010 · 41336-02030 |
| 43047 | Front axle right half shaft inner universal joint sub-assembly | 43047-02070 · 43047-02090 |
| 43048 | Front axle left half shaft inner universal joint sub-assembly | 43047-02070 · 43047-02090 |
| 43410 | Right front driveshaft assembly | 43410-02290 · 43410-02310 · 43410-02330 · 43410-02350 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-02050 · 90080-52015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90080-52008 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90080-52008 |
| 43420 | Left front drive shaft assembly | 43420-02320 · 43420-02340 · 43420-02360 · 43420-02380 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-02050 · 90080-52015 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 90080-46147 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 90080-46149 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 90080-46147 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 90080-46149 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 90080-46148 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02120 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 90080-46148 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02120 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09780 · 43460-09840 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09A10 · 43470-09A12 |
| 43474 | drive shaft damper | 43474-02120 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-02130 |
