Toyota COROLLA 阀体和滤油网(ATM) — Figure 3512

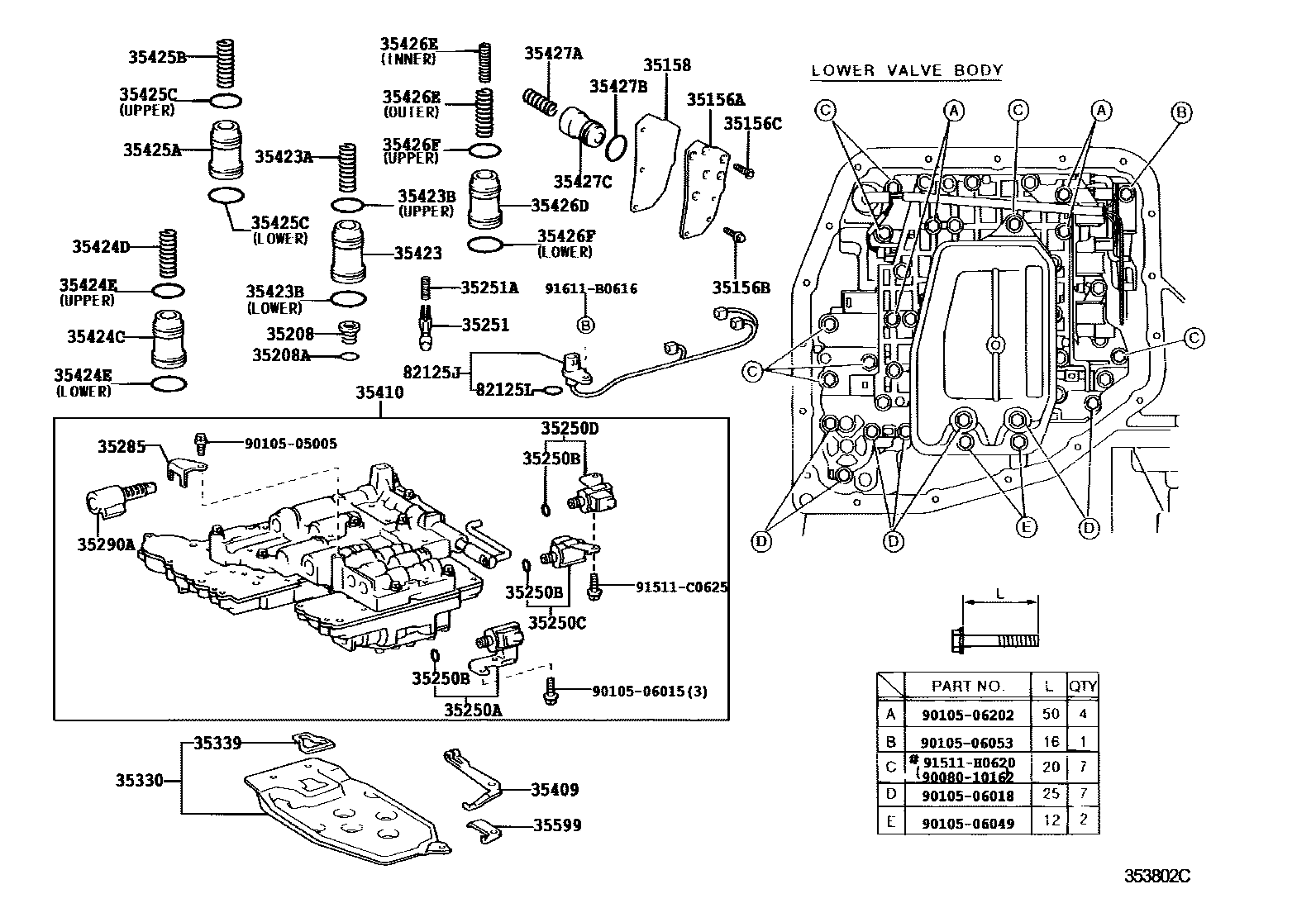

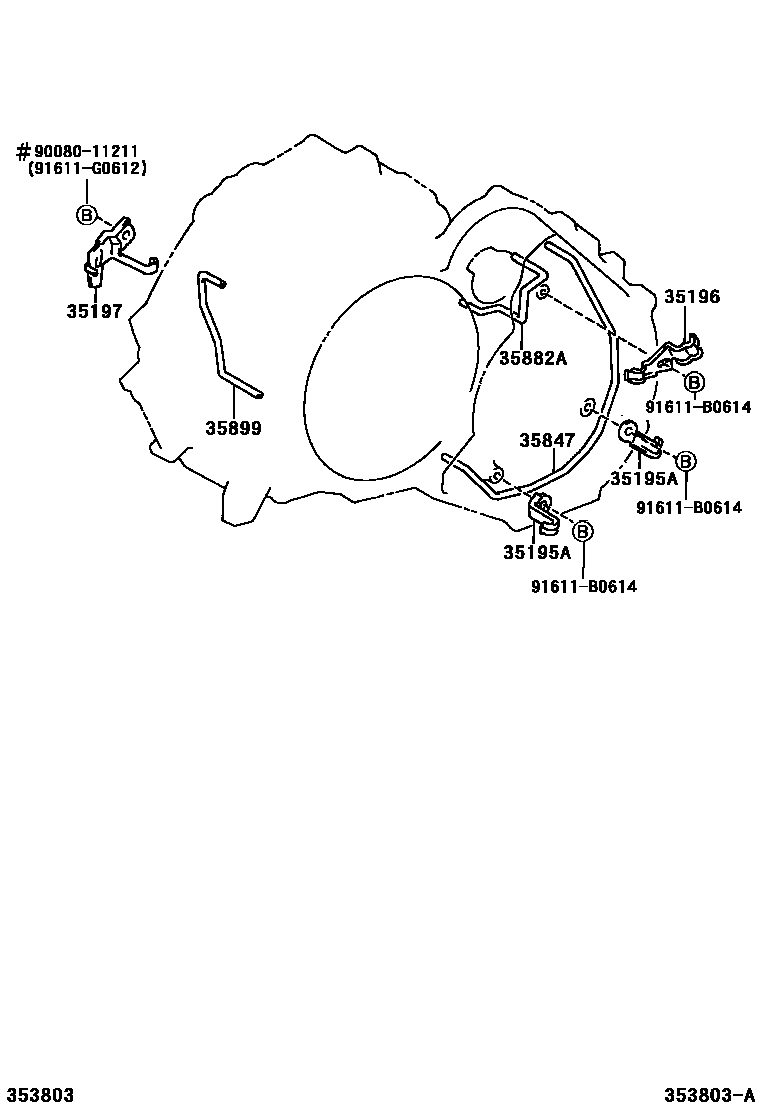

Toyota COROLLA EPC diagram 3512, 阀体和滤油网(ATM), with 2 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35156A | No. 2 gearbox block | 35108-12020 |
| 35156B | Bolt (for gearbox block No. 2) | 90105-06049 |
| 35156C | Bolt (for gearbox block No. 2) | 90149-60041 |
| 35158 | No. 2 gearbox shield gasket | 35158-12020 |
| 35195A | No. 1 transmission axle fuel supply pipe clamp | 35195-12030 |
| 35196 | No. 2 transmission axle fuel supply pipe clamp | 35196-12030 |
| 35197 | No. 3 transmission axle oil supply pipe clamp | 35197-12030 |
| 35208 | B-2 Accumulator Spring Sub-Assembly | 35205-12010 |
| 35208A | Hole snap ring (for B-2 accumulator spring) | 90521-22004 |
| 35250A | No. 3 transmission solenoid valve assembly | 35250-12030 |
| 35250B | No. 3 O-ring (for transmission solenoid valve) | 90301-06004 |
| 35250C | No. 1 transmission solenoid valve assembly | 35250-12010 |
| 35250D | No. 2 transmission solenoid valve assembly | 35250-12020 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90501-03005 |
| 35285 | Solenoid valve lock plate | 35285-12020 |
| 35290A | Pipe pressure control solenoid valve assembly | 35290-12020 · 35290-12030 |
| 35330 | Valve body oil filter assembly | 35330-12040 |
| 35339 | Oil filter gasket | 35339-12020 |
| 35409 | Manual lock spring sub-assembly | 35409-12030 · 35409-12060 |
| 35410 | Transmission valve body assembly | 35410-12700 · 35410-12770 · 35410-12810 |
| 35423 | B-2 Accumulator Piston | 35423-12020 |
| 35423A | Compression spring (for B-2 accumulator piston) | 90501-22034 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-21012 · 90301-29011 |
| 35424C | C-1 Accumulator Piston | 35424-12050 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-22058 |
| 35424E | O-ring (for C-1 accumulator piston) | 90301-23010 · 90301-29011 |
| 35425A | C-2 Accumulator Piston | 35425-12050 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-22057 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-26012 · 90301-29011 |
| 35426D | C-3 Accumulator Piston | 35423-12020 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90501-20134 · 90501-23129 |
| 35426F | O-ring (for C-3 accumulator piston) | 90301-21012 · 90301-29011 |
| 35427A | Compression spring (for B-4 accumulator piston) | 90501-23126 |
| 35427B | O-ring (for B-4 accumulator piston) | 90301-21012 |
| 35427C | B-4 Accumulator Piston | 35427-12020 |
| 35599 | Manual locking spring cover | 35599-12020 · 35599-12040 |
| 35847 | Transmission lubricant supply pipe | 35847-12030 |
| 35882A | Differential gear lubricant oil supply pipe | 35882-12020 |
| 35899 | Governor pressure oil pipe | 35899-12040 |
| 82125J | Transmission wiring harness | 82125-12380 · 82125-12390 |
| 82125L | O-ring (for transmission wiring harness) | 90301-21009 |
