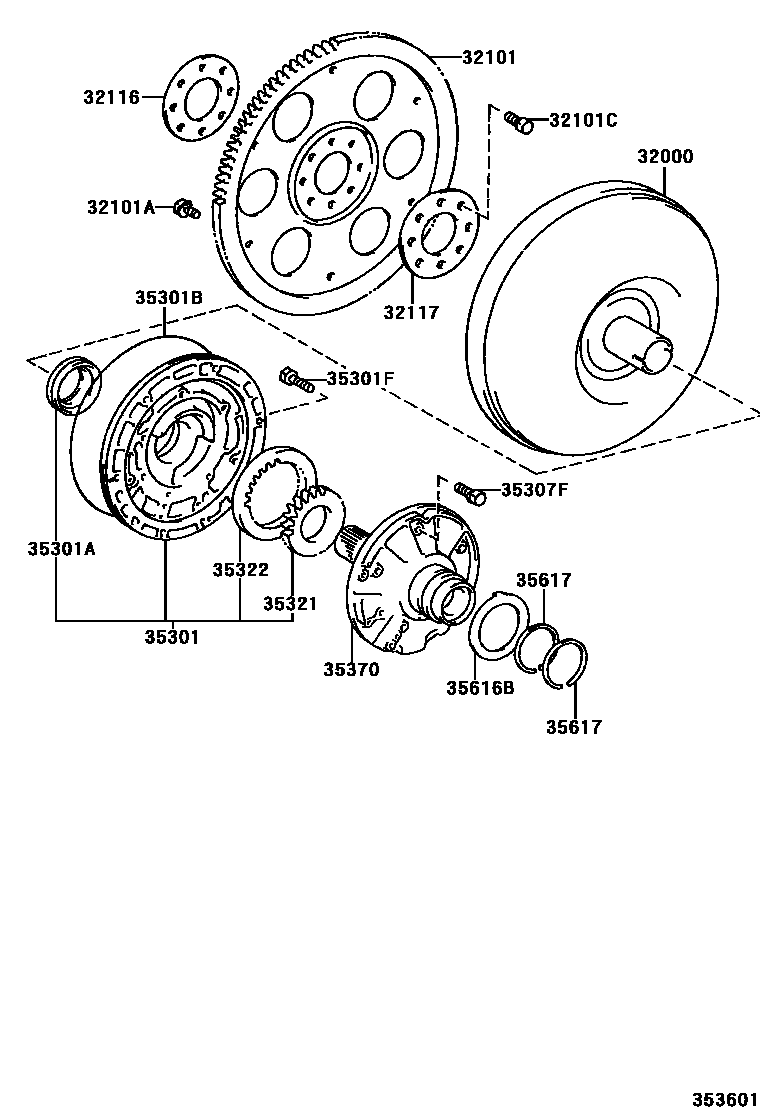

Toyota COROLLA 变矩器、前油泵和链条(ATM) — Figure 3502
Toyota COROLLA EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-12380 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-12090 · 32101-12091 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-08107 · 90109-08113 · 90119-08269 · 90119-08498 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 |
| 32116 | Front transmission plate spacer | 32116-12020 |
| 32117 | Rear transmission plate spacer | 32117-12030 |
| 35301 | Front oil pump body sub-assembly | 35035-20010 |
| 35301A | Oil seal (for front oil pump) | 90311-38082 |
| 35301B | O-ring (for front oil pump body) | 90301-99024 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08198 |
| 35307F | Bolt (for stator shaft) | 90119-06559 |
| 35321 | Front oil pump driving gear | 35321-12070 · 35321-12080 · 35321-12090 · 35321-12100 · 35321-12110 |
| 35322 | Front oil pump driven gear | 35322-12060 · 35322-12070 · 35322-12080 · 35322-12090 · 35322-12100 |
| 35370 | stator shaft assembly | 35370-32060 |
| 35616B | Clutch drum thrust washer (for stator shaft) | 35616-32010 |
| 35617 | Clutch drum oil ring | 35617-32011 |
