Toyota COROLLA 燃油喷射系统 — Figure 2211

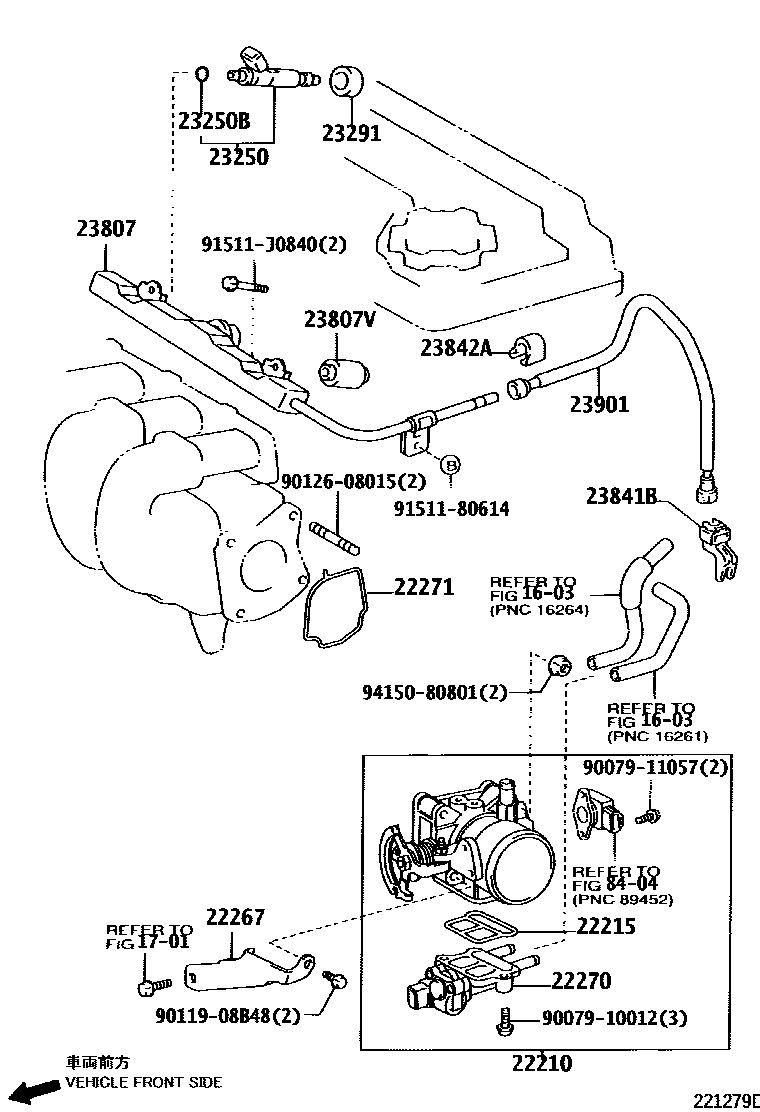

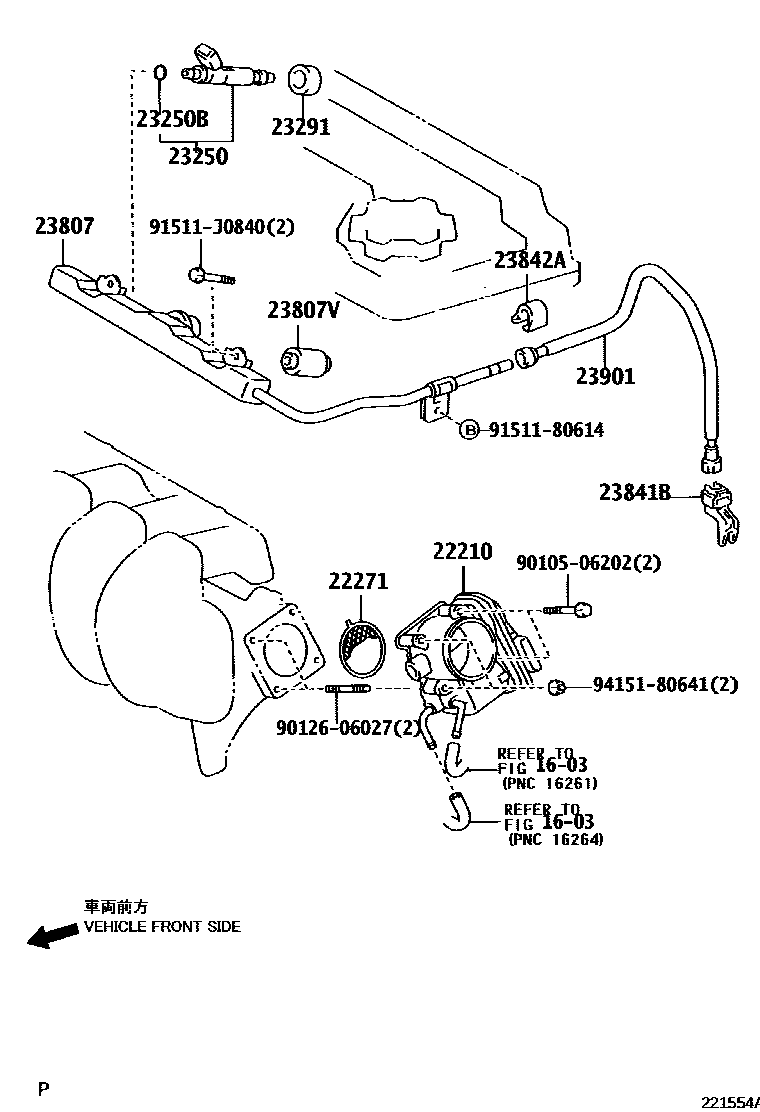

Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22030-0D030 · 22030-0D031 · 22030-22040 · 22030-22041 · 22210-22170 |
| 22215 | Throttle body cover gasket | 22215-7A680 |
| 22267 | Throttle body bracket | 22267-22030 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-0D040 · 22270-22060 · 22270-22061 |
| 22271 | Throttle body gasket | 22271-22040 · 22271-75031 |
| 23250 | Fuel injector assembly | 23209-22040 · 23209-22090 |
| 23250B | O-ring (for fuel injector) | 90301-07024 · 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-22020 |
| 23807 | Oil pipe sub-assembly | 23807-22030 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08055 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-21050 · 23841-28010 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-22020 |
| 23901 | Fuel pipe sub-assembly | 23901-0D010 · 23901-22150 |
