Toyota COROLLA 点火线圈和火花塞 — Figure 1901

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 1 images and 2 PNC and OE references.

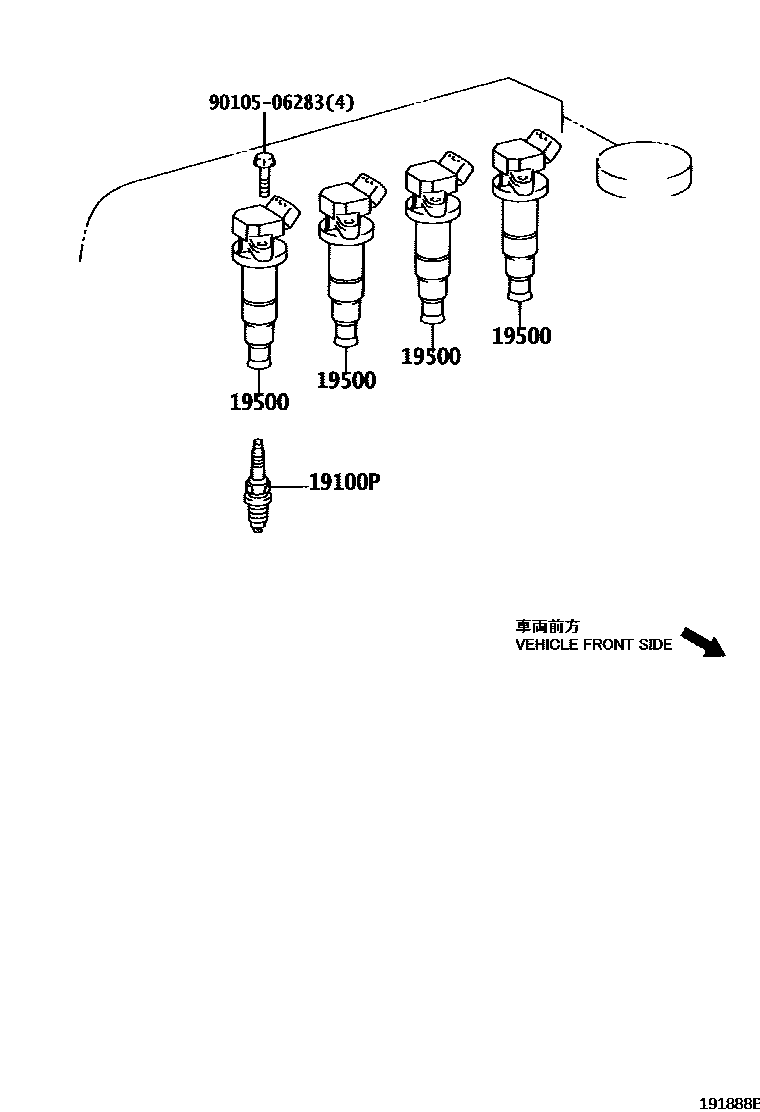

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 191888B
点火线圈和火花塞 — 191888B (200204 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01217 · 90919-01218 · 90919-01240
19500Ignition coil assembly90080-19015 · 90080-19019 · 90919-02239 · 90919-T2002
