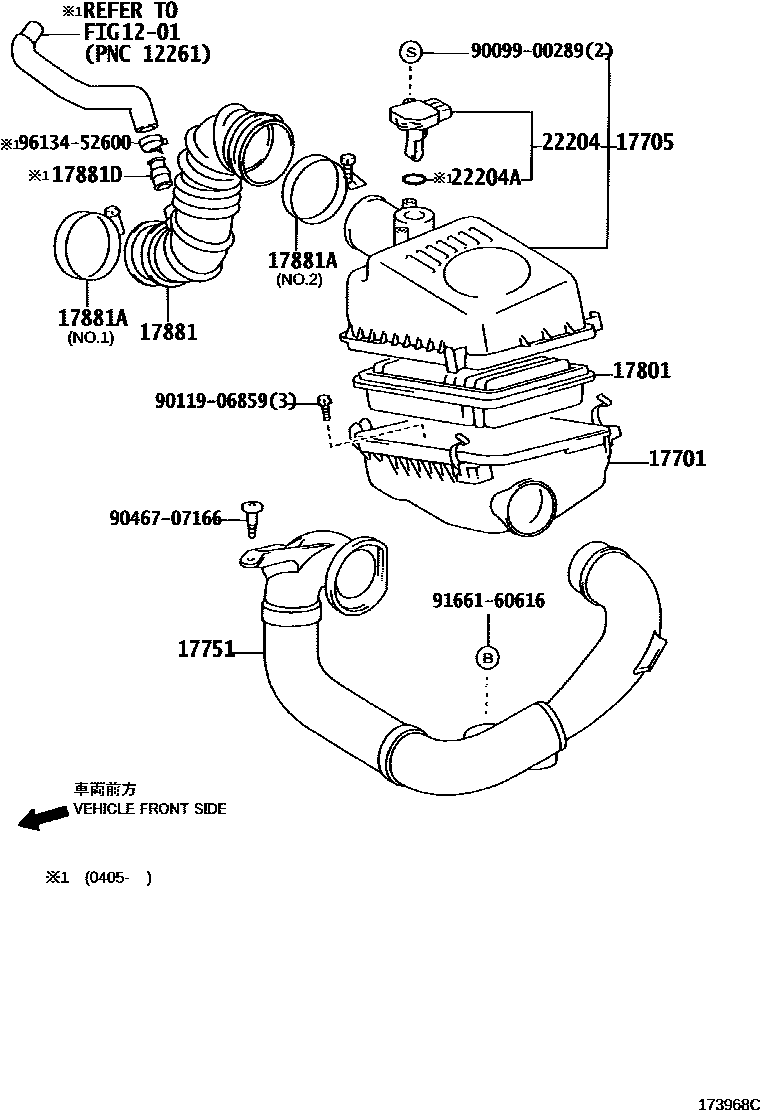

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17701 | Air filter housing sub-assembly | 17701-0D050 · 17701-22150 |
| 17705 | Air filter cover sub-assembly | 17705-0D050 · 17705-22180 |
| 17751 | No. 1 air filter air inlet | 17751-21060 |
| 17801 | Air filter element sub-assembly | 17801-0D020 · 17801-22020 |
| 17881 | No. 1 air cleaner hose | 17881-22080 · 17881-22120 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10750 · 96111-10800 |
| 17881D | Connector tube (for air cleaner hose) | 90406-28001 |
| 22204 | Intake air flow meter assembly | 22204-0D030 · 22204-22010 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
