Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 6 PNC and OE references.

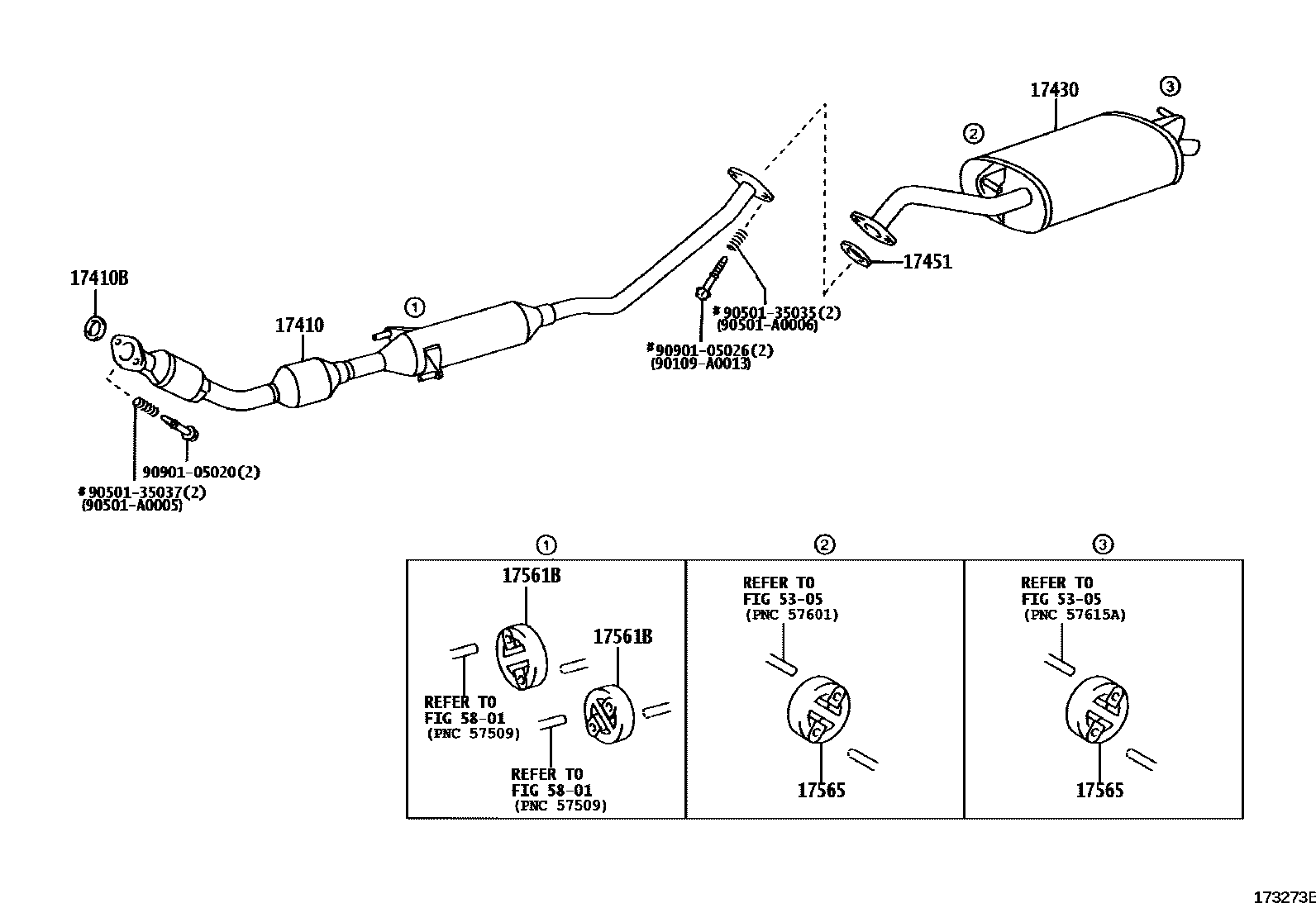

Toyota COROLLA Exhaust Pipe EPC diagram — 173273B — Exhaust Pipe — 173273B (200204 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-22410 · 17410-22470 · 17410-22500
17410B	Exhaust pipe gasket	17451-22070
17430	Exhaust tailpipe assembly	17430-22350 · 17430-22390 · 17430-22470
17451	Exhaust pipe gasket	17451-16030 · 17451-20010
17561B	No. 1 exhaust pipe lifting lug	17565-21030 · 17565-22030
17565	No. 5 exhaust pipe lifting lug	17565-21040
