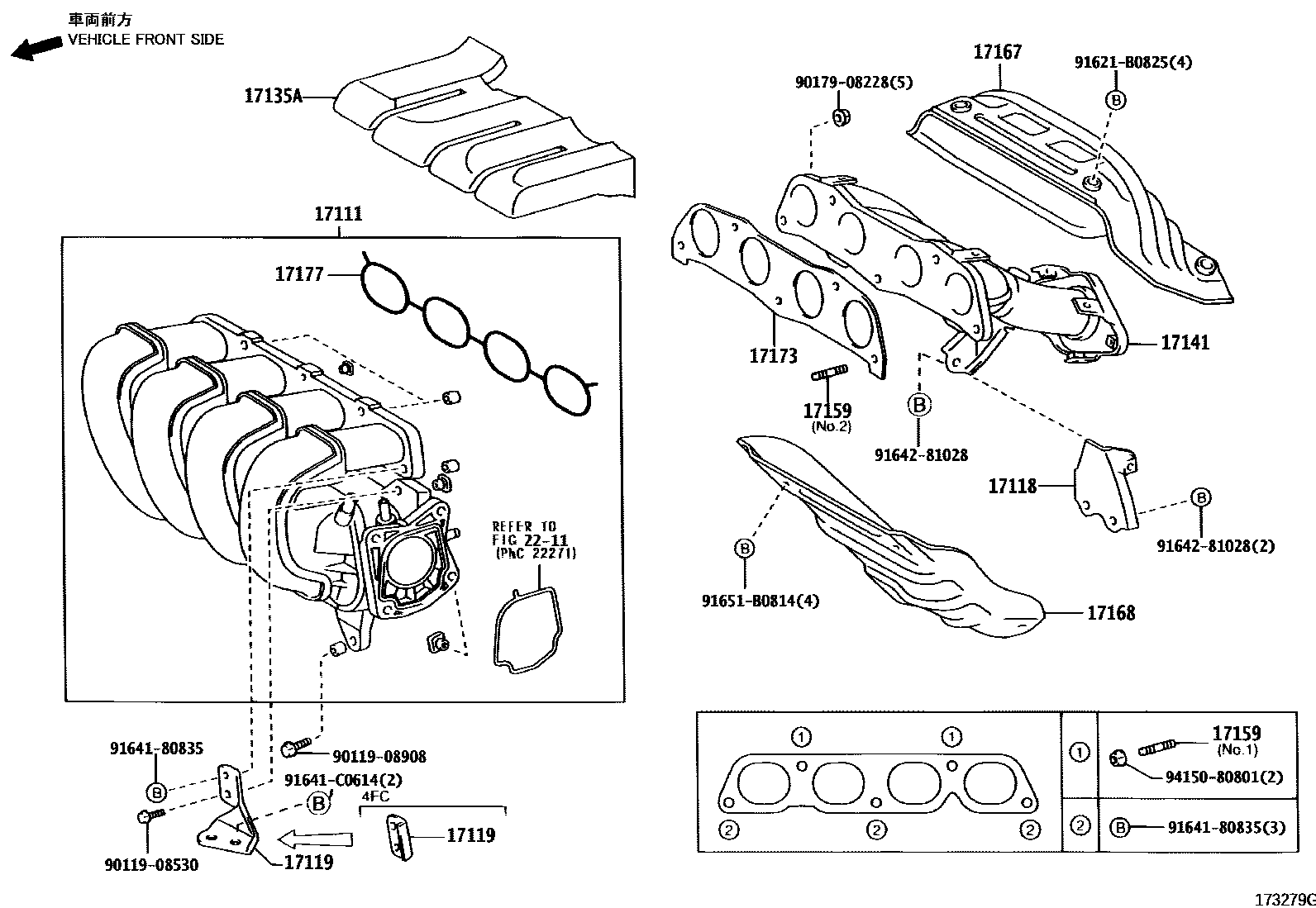

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17120-22030 · 17120-22070 |
| 17118 | Manifold stays | 17118-22020 |
| 17119 | No. 2 manifold stay | 17139-22030 · 17139-22040 |
| 17135A | Intake manifold No. 1 heat shield | 17135-22010 |
| 17141 | exhaust manifold | 17104-22100 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08026 · 90126-08043 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-22080 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-22080 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-22010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-22030 |
