Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 1 PNC and OE references.

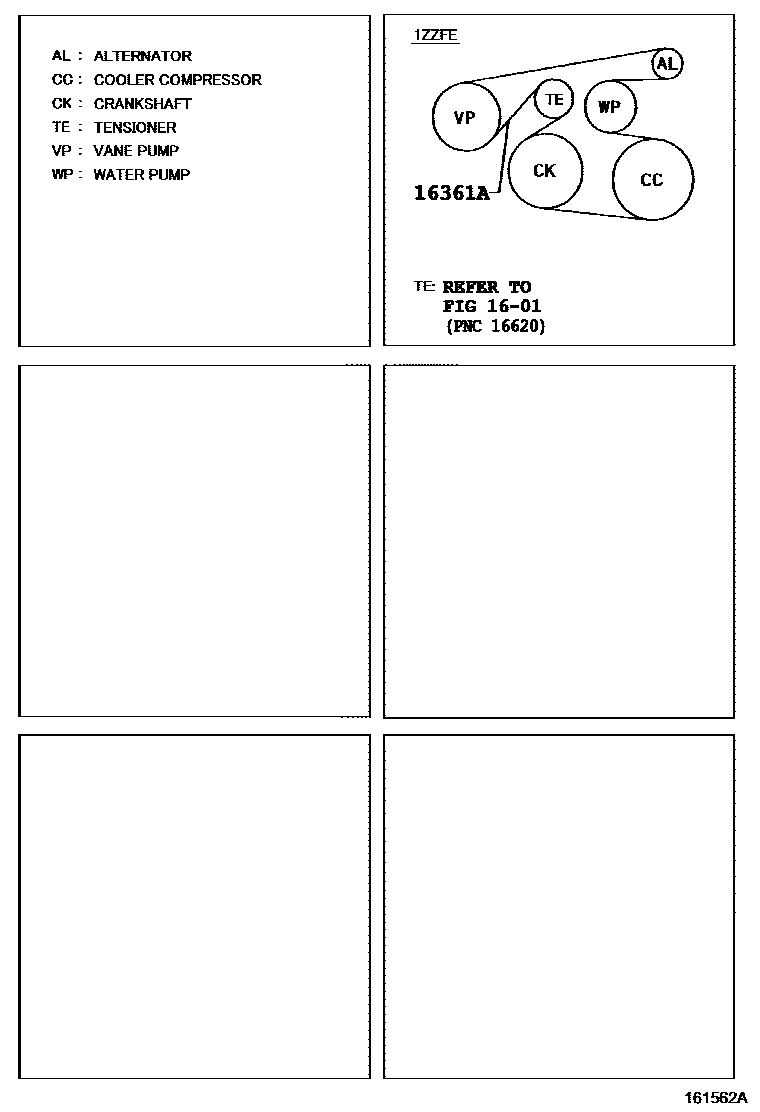

Toyota COROLLA V-Belt EPC diagram — 161562A
V-Belt — 161562A (200204 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90080-91134 · 90080-91139 · 90916-02468 · 90916-02547
