Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 1 images and 5 PNC and OE references.

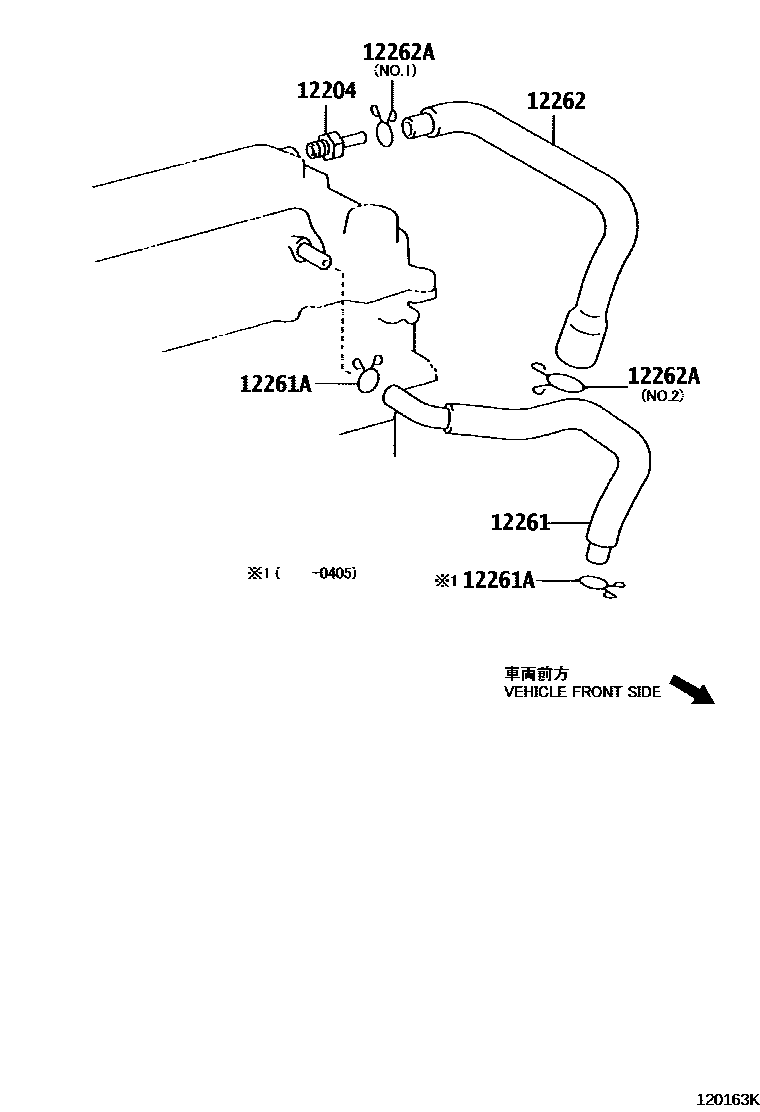

Toyota COROLLA Ventilation Hose EPC diagram — 120163K
Ventilation Hose — 120163K (200204 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-22050 · 12204-22051
12261Ventilation Hose12261-22050 · 12261-22070
12261AClip or clip (for vent hose)90467-21152
12262Ventilation hose No. 212262-0D050 · 12262-22040
12262AClamp (for vent hose No. 2)90466-18002 · 90467-13103 · 90467-19003
