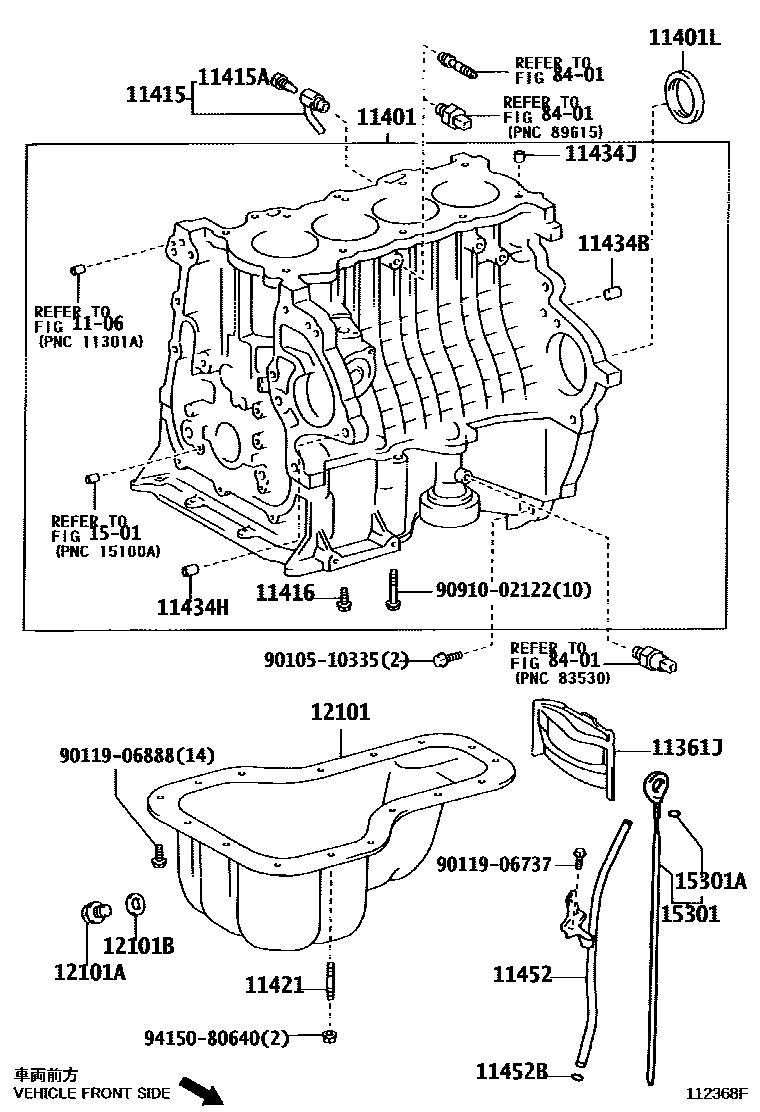

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-22021 |
| 11401 | Cylinder block sub-assembly | 11410-09070 · 11410-29096 · 11410-29165 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-76001 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09107 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90080-10199 · 91511-K0840 |
| 11421 | Stud bolts (for oil pan) | 90126-06010 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 · 90250-A0018 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-14003 · 90253-A0009 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 · 90253-A0008 |
| 11452 | Engine oil level gauge guide | 11452-22030 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 12101 | Oil pan sub-assembly | 12101-22024 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 15301 | Engine oil level scoring assembly | 15301-22030 · 15301-22050 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
