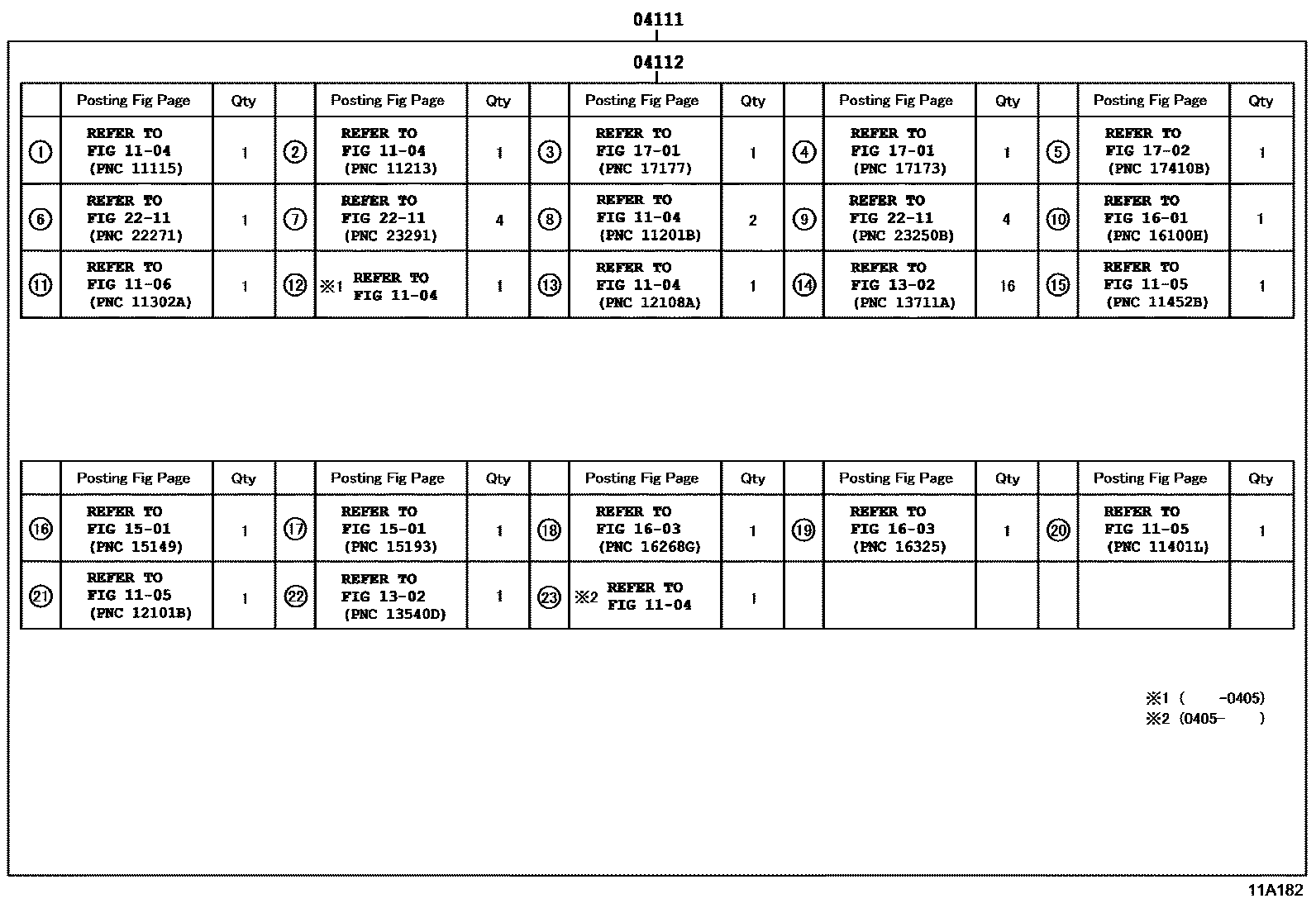

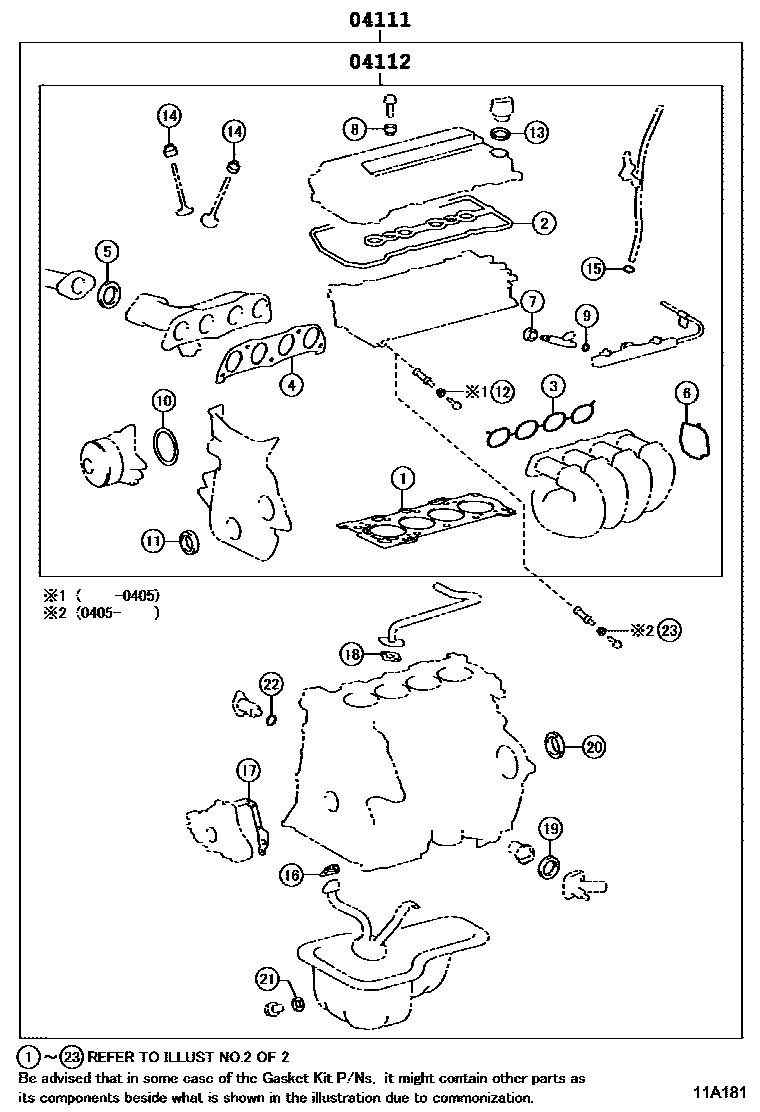

Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103
Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-22190 · 04111-22191 · 04111-22192 · 04111-22740 · 04111-22741 |
| 04112 | Engine valve grinding pad assembly | 04112-22190 · 04112-22191 · 04112-22192 · 04112-22251 · 04112-22252 |
