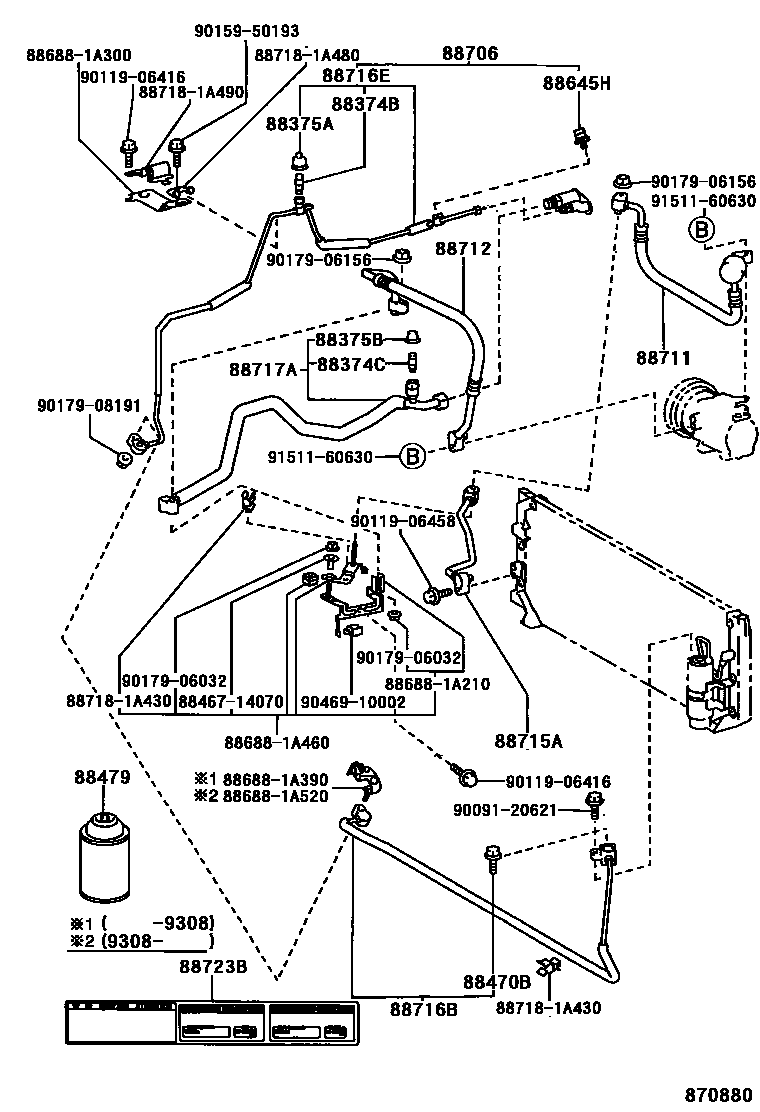

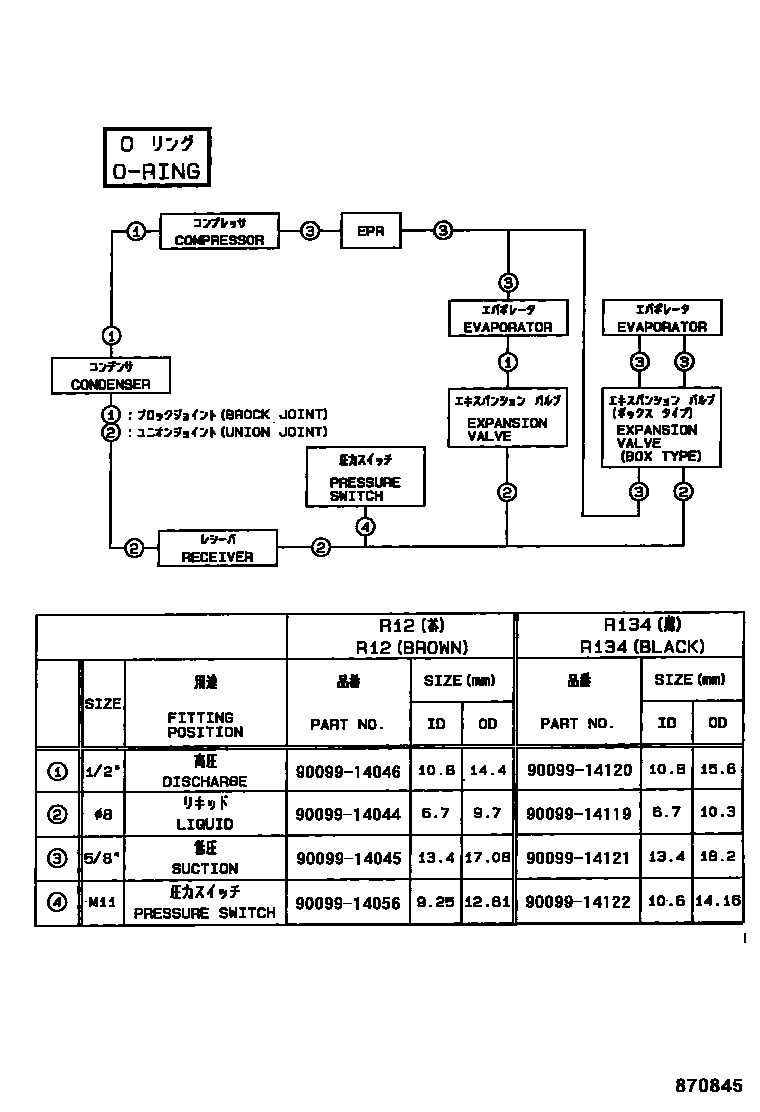

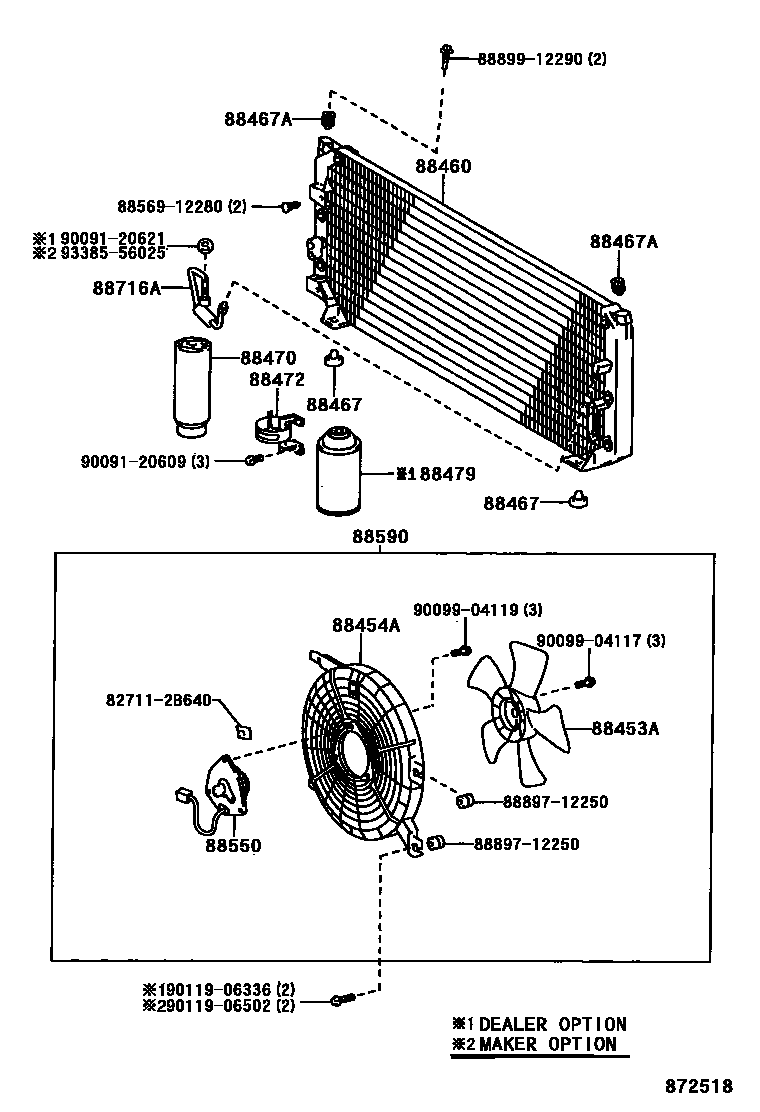

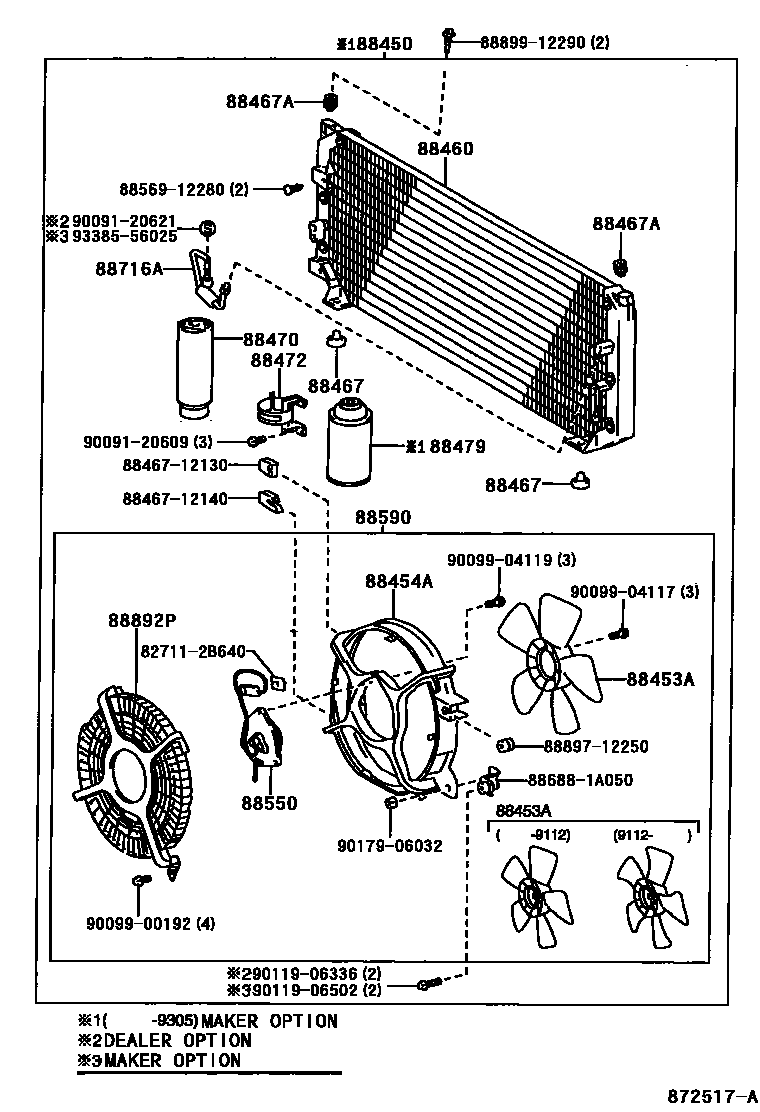

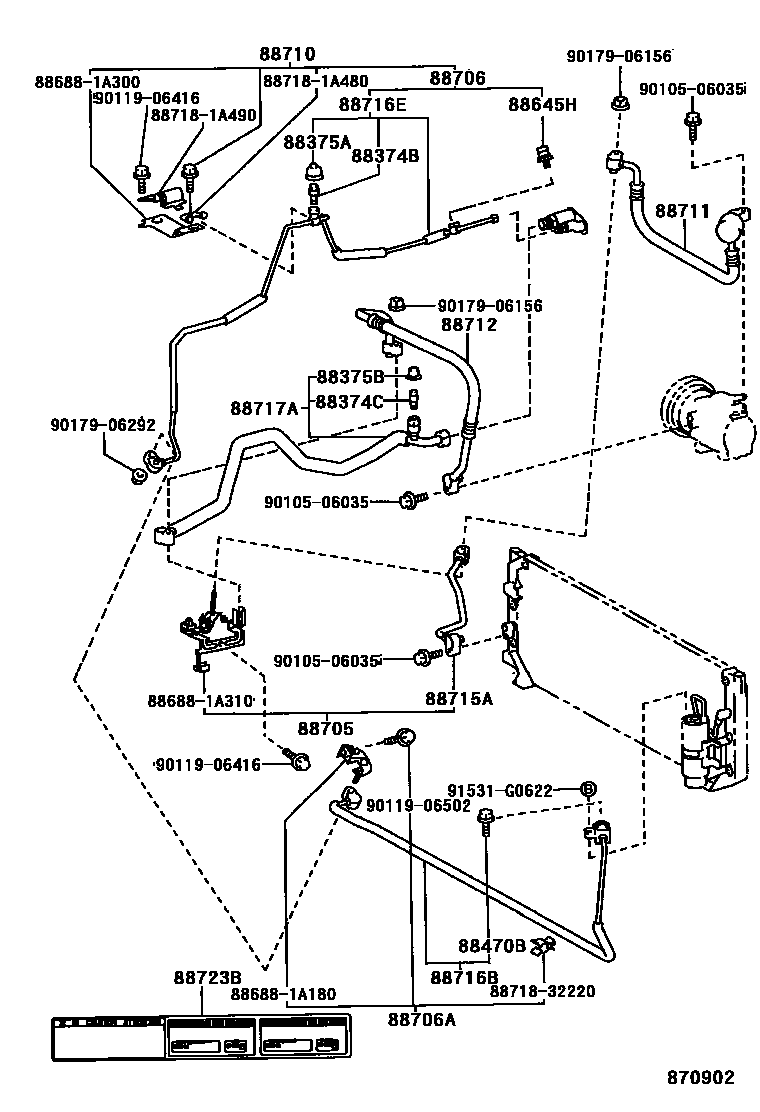

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 48094-10010 · 88374-30010 |
| 88374C | Service valve No. 2 | 48094-10010 · 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-24010 · 88375-30280 |
| 88375B | No. 1 maintenance valve cover | 88375-30270 · 88375-30290 |
| 88450 | Condenser assembly with liquid reservoir | 88450-12110 |
| 88453A | cooling fan | 88453-02030 · 88453-10021 · 88453-10022 · 88453-12080 |
| 88454A | fan cover | 88454-02030 · 88454-12130 · 88454-12150 |
| 88460 | Air conditioning condenser assembly | 88460-02040 · 88460-12410 · 88460-12460 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-02050 · 88467-12100 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-02030 · 88467-12110 |
| 88470 | Cooler reservoir and dryer assembly | 88471-12020 · 88471-60010 |
| 88470B | fuse bolt | 88475-12020 |
| 88472 | No. 1 liquid storage tank bracket | 88473-12080 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02004 · 90986-02006 · 90986-02008 |
| 88550 | Blower motor assembly (for condenser) | 88550-02030 · 88550-12130 · 88550-12150 · 88550-12160 |
| 88590 | Blower assembly with hood | 88590-02040 · 88590-12210 · 88590-12270 |
| 88645H | No. 1 pressure switch | 88645-20050 · 88645-50010 |
| 88705 | Discharge pipe sub-assembly | 88705-12040 · 88705-12080 |
| 88706 | Liquid pipe sub-assembly | 88706-12120 · 88706-12280 |
| 88706A | Liquid pipe A sub-assembly | 88706-12170 · 88706-12290 |
| 88710 | Air conditioning pipe assembly | 88710-12260 · 88710-12300 · 88710-12400 · 88710-12430 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-12740 · 88711-1A130 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-1A010 · 88712-1A150 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-12420 · 88715-12460 |
| 88716A | Cooler refrigerant liquid pipe A | 88726-02020 · 88726-12360 · 88726-12410 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-1A060 · 88716-1A220 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-1A070 · 88716-1A210 |
| 88717A | Cooler refrigerant suction pipe A | 88717-12570 · 88717-12720 |
| 88723B | Cooler maintenance warning label | 88723-12060 · 88723-12080 · 88723-12130 |
| 88892P | fan cover mesh | 88892-02010 · 88892-12200 |
