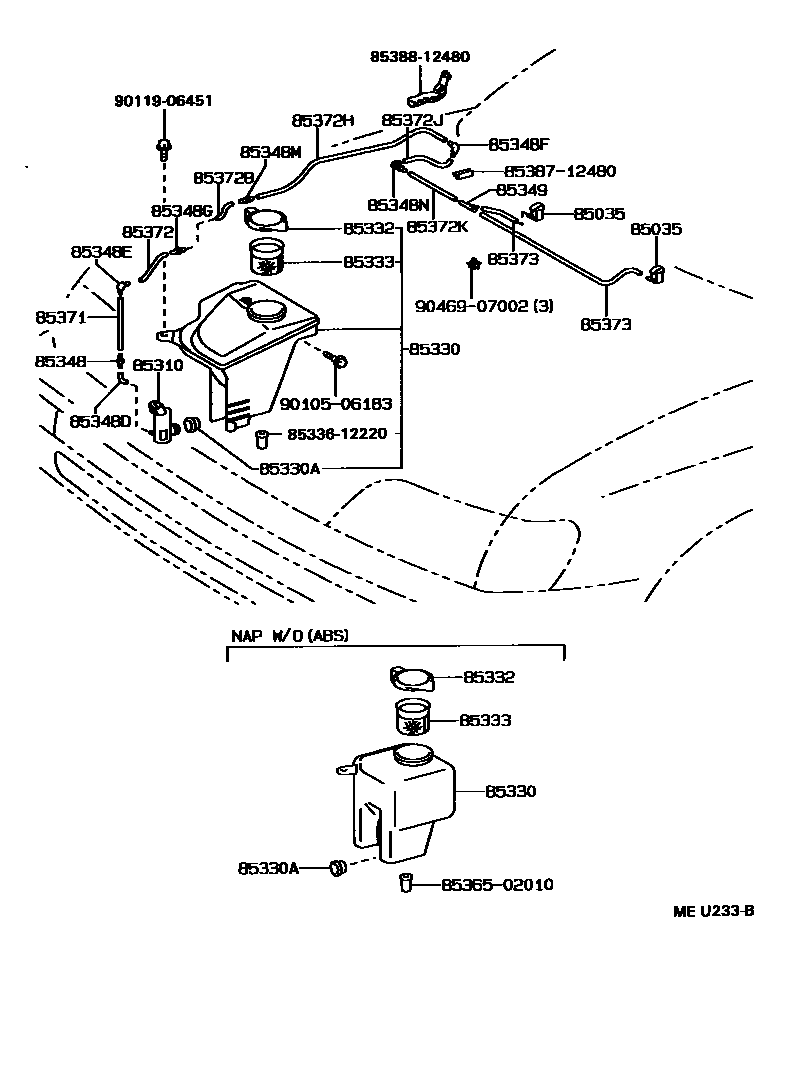

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12030 · 85381-12090 |
| 85310 | Windshield washer motor and pump assembly | 85310-20190 · 85310-20210 · 85330-12280 · 85330-33010 |
| 85330 | Windshield washer fluid tank assembly | 85315-12220 · 85315-12390 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-20300 · 85316-20340 |
| 85333 | Windshield washer fluid tank filter | 85312-33010 |
| 85348 | Windshield washer hose connector No. 1 | 85375-10260 |
| 85348D | No. 1 windshield washer elbow joint | 85336-12230 · 85336-12410 |
| 85348E | No. 2 windshield washer elbow joint | 85317-12230 · 85317-12410 |
| 85348F | No. 3 windshield washer elbow joint | 85317-12230 |
| 85348G | Windshield washer hose connector No. 2 | 85317-12220 · 85319-12410 |
| 85348M | No. 3 windshield washer hose connector | 85334-22470 · 85375-10260 |
| 85348N | No. 4 windshield washer hose connector | 85378-12480 |
| 85349 | Windshield washer hose connector No. 1 | 85348-14390 |
