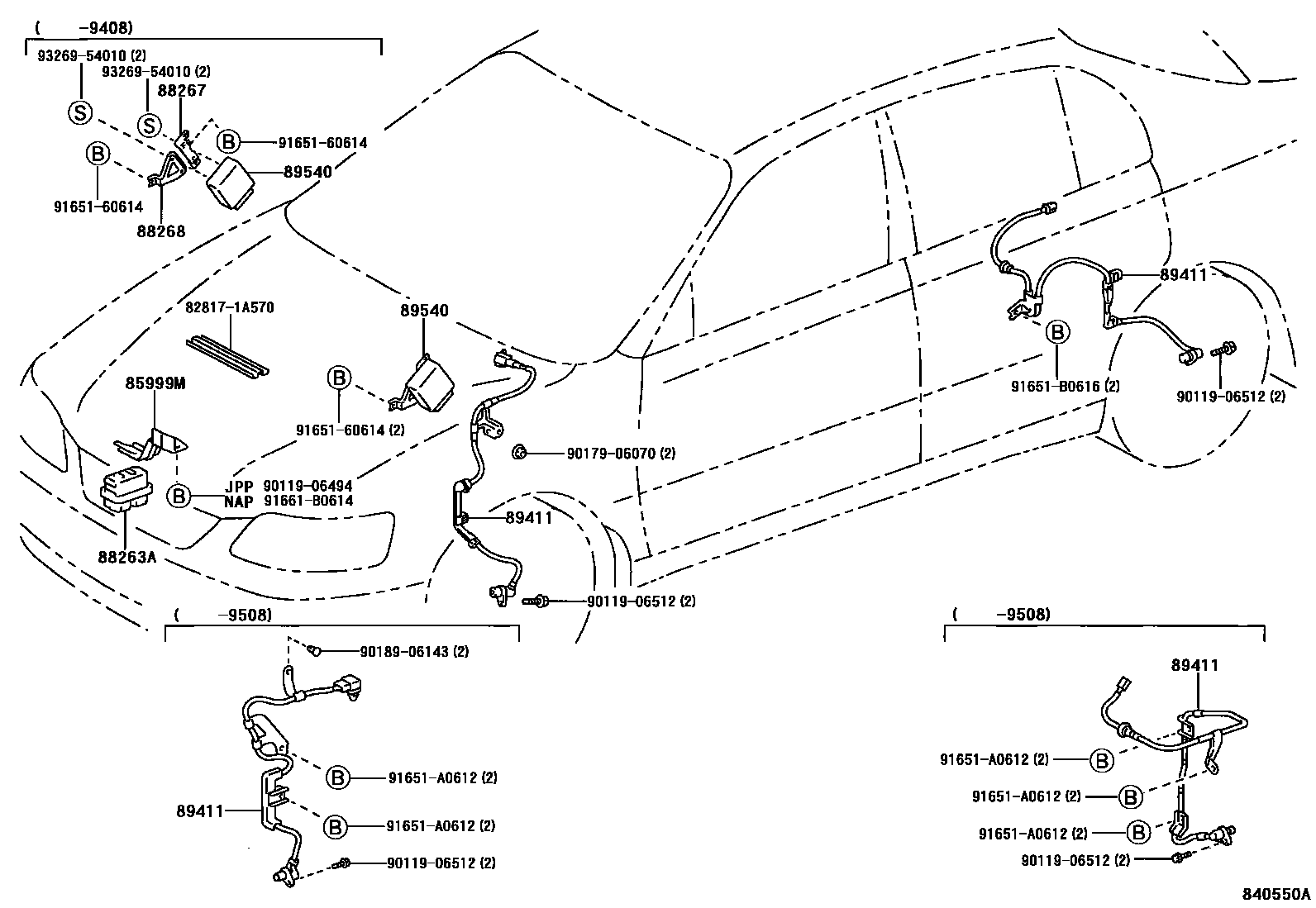

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85999M | Relay bracket | 85999-12170 · 85999-12320 |
| 88263A | Anti-skid control relay | 88263-12070 · 88263-12090 · 88263-32060 |
| 88267 | No. 1 anti-skid control ECU bracket | 88267-12090 |
| 88268 | No. 2 anti-skid control ECU bracket | 88268-12090 |
| 89411 | Speed sensor | 89542-12020 · 89542-12040 · 89543-12020 · 89543-12040 · 89545-12020 · 89545-12040 · 89546-12020 · 89546-12040 |
| 89540 | Anti-skid control ECU assembly | 89540-12190 · 89540-12250 · 89541-12070 |
