Toyota COROLLA 巡航控制(自动行驶) — Figure 8408

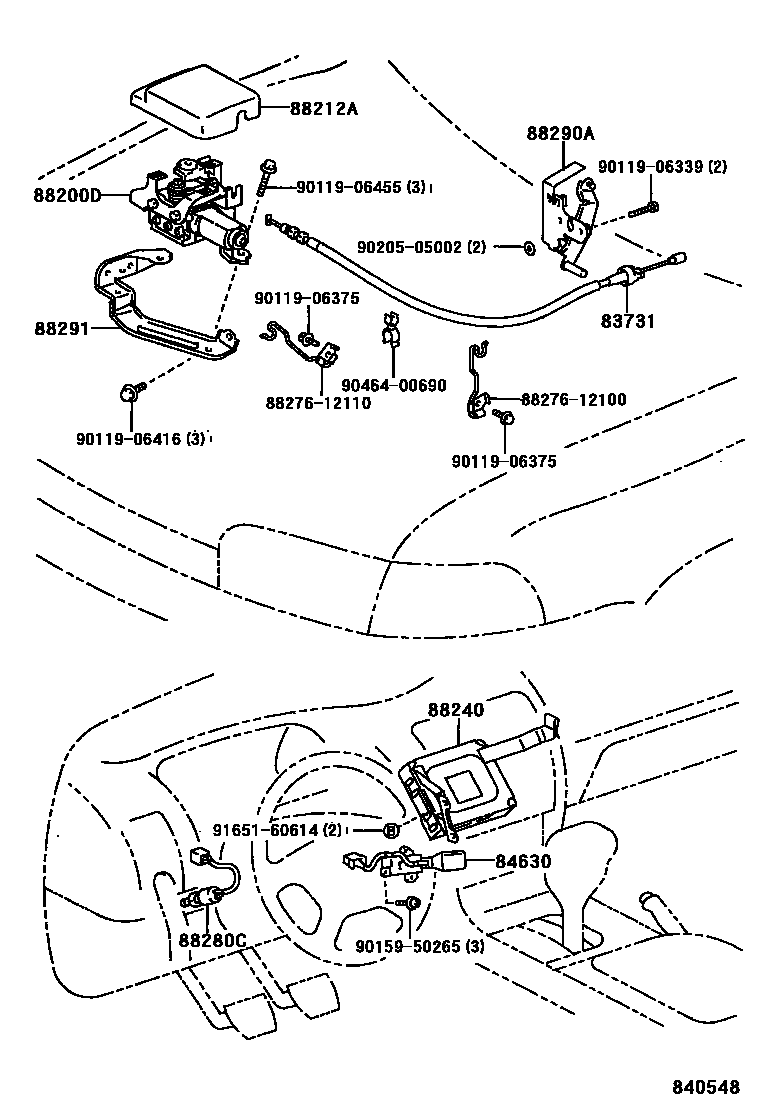

Toyota COROLLA EPC diagram 8408, 巡航控制(自动行驶), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83731 | cruise control cable | 83731-12040 |
| 84630 | Cruise control main switch assembly | 84630-33010 |
| 88200D | Cruise control actuator assembly | 88200-12120 |
| 88212A | cruise control actuator cover | 88212-12080 |
| 88240 | Cruise control ECU assembly | 88240-12160 · 88240-12170 |
| 88280C | Clutch switch assembly | 88280-12020 |
| 88290A | Cruise control right angle lever assembly | 88290-12030 |
| 88291 | No. 1 cruise control (automatic driving) bracket | 88291-12130 |
