Toyota COROLLA 后组合灯 — Figure 8111

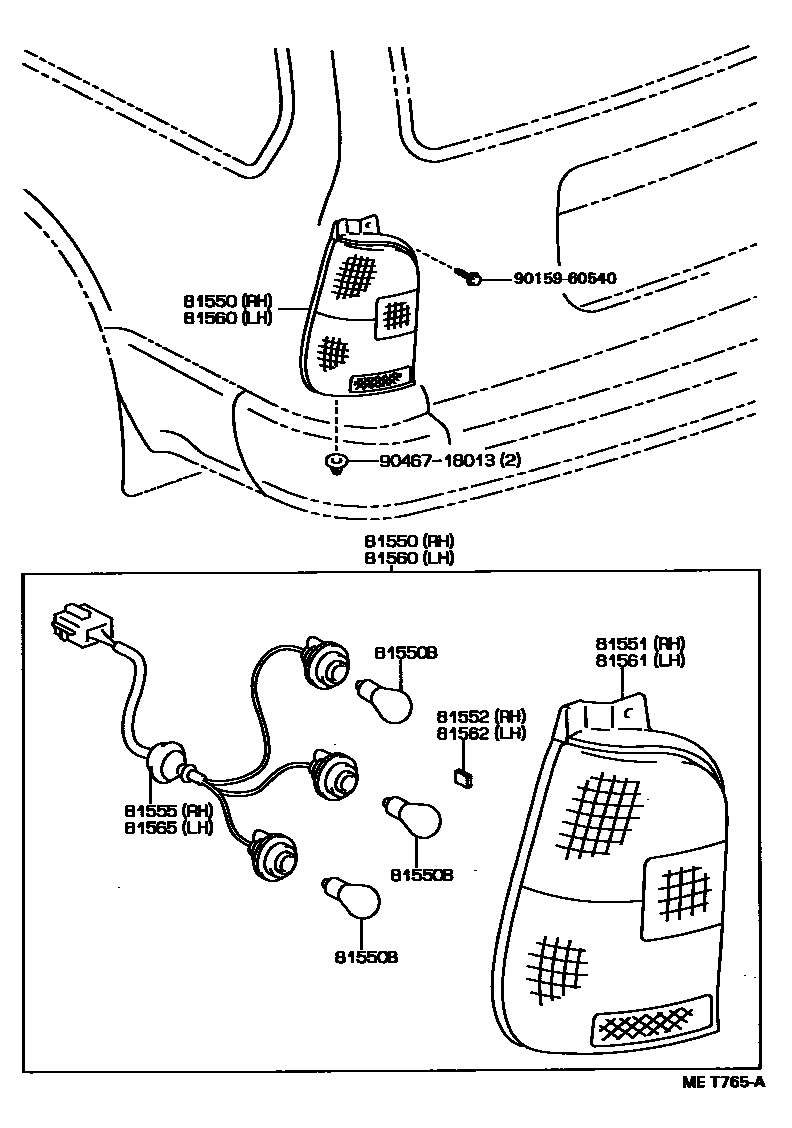

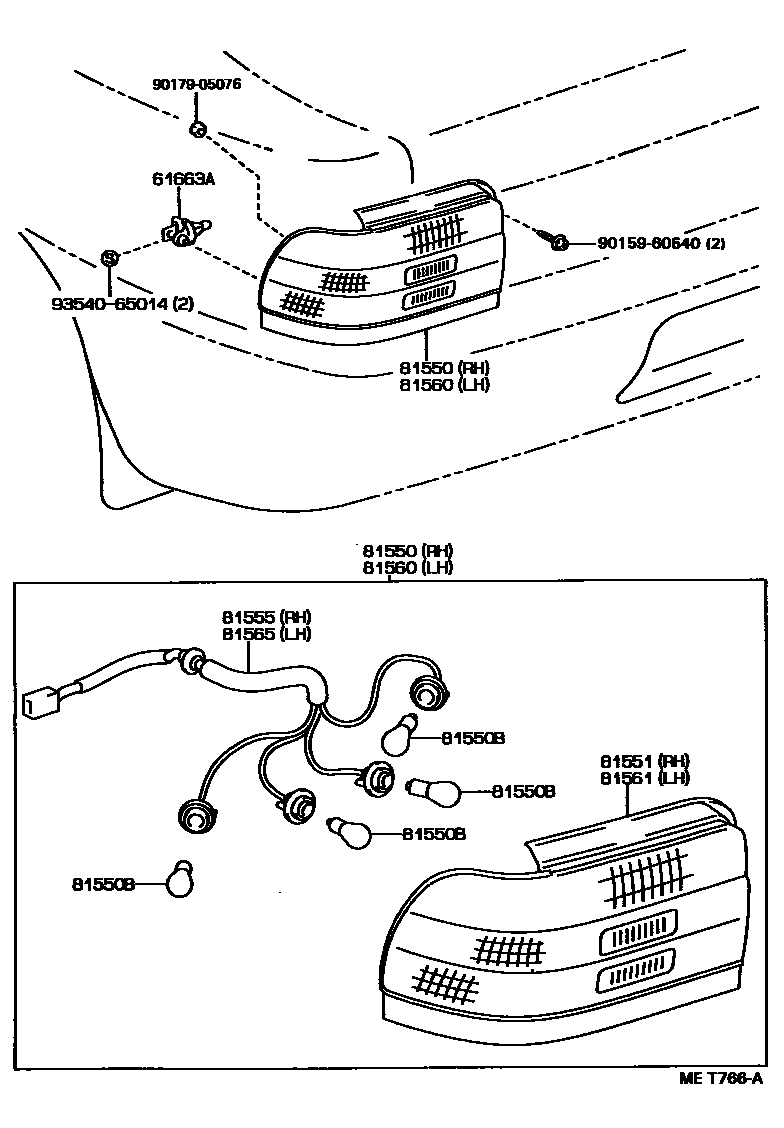

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61663A | Rear combination light mounting bracket | 61663-12010 |
| 81550 | Right rear combination light assembly | 81550-02060 · 81550-13340 · 81550-1A830 |
| 81550B | Bulb (for rear combination lights) | 90080-81057 · 90081-81003 · 90081-81004 · 99132-11270 · 99132-21270 |
| 81551 | Right rear combination lamp shade | 81551-02060 · 81551-13340 · 81551-1A830 |
| 81552 | Right rear combination lamp shade gasket | 81552-13320 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02060 · 81555-13320 · 81555-13340 · 81555-1A830 |
| 81560 | Left rear combination light assembly | 81560-02060 · 81560-13340 · 81560-1A790 |
| 81561 | Left rear combination lamp shade | 81561-02060 · 81561-13340 · 81561-1A790 |
| 81562 | Left rear combination lamp shade gasket | 81552-13320 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02060 · 81555-13320 · 81555-13340 · 81555-1A830 |
