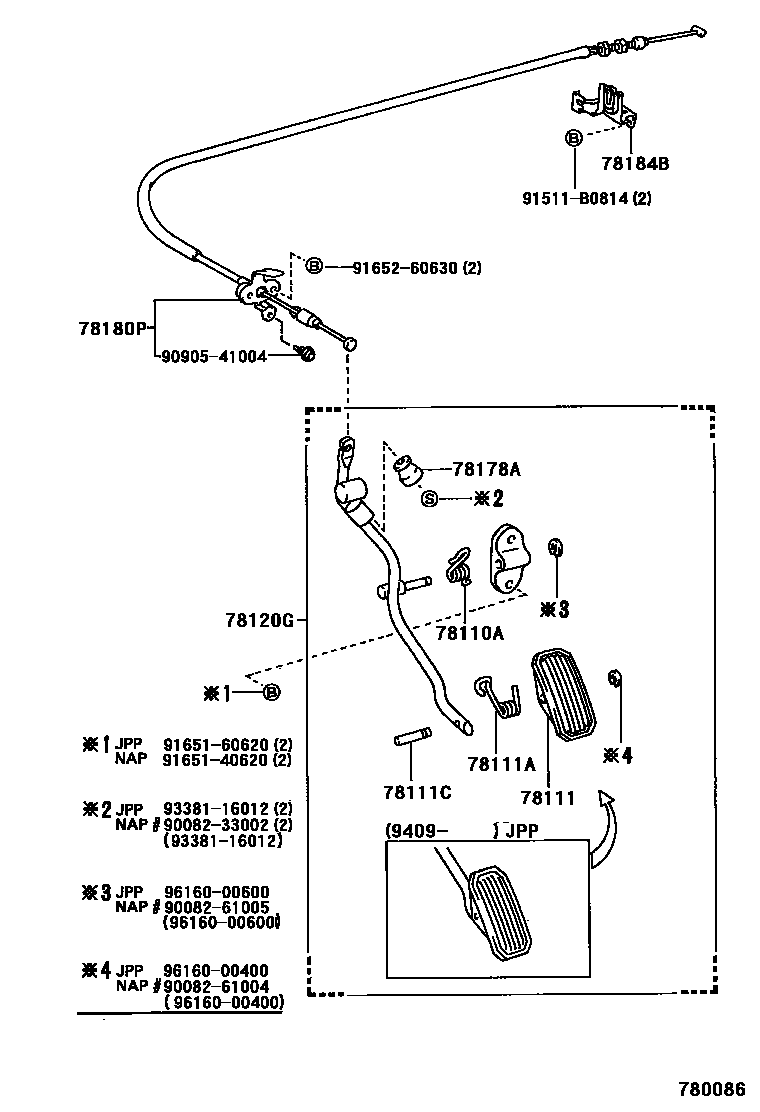

Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-26036 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-18050 · 90959-03040 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78120G | Accelerator pedal lever assembly | 78120-12180 · 78120-12190 · 78120-12210 · 78120-12230 |
| 78178A | Accelerator pedal lever dynamic damper | 78178-12030 |
| 78180P | Accelerator pedal control cable assembly | 78180-02030 · 78180-1A520 |
| 78184B | Throttle pedal control cable bracket | 78024-12040 · 78024-12041 |
