Toyota COROLLA 后防护条 — Figure 7504

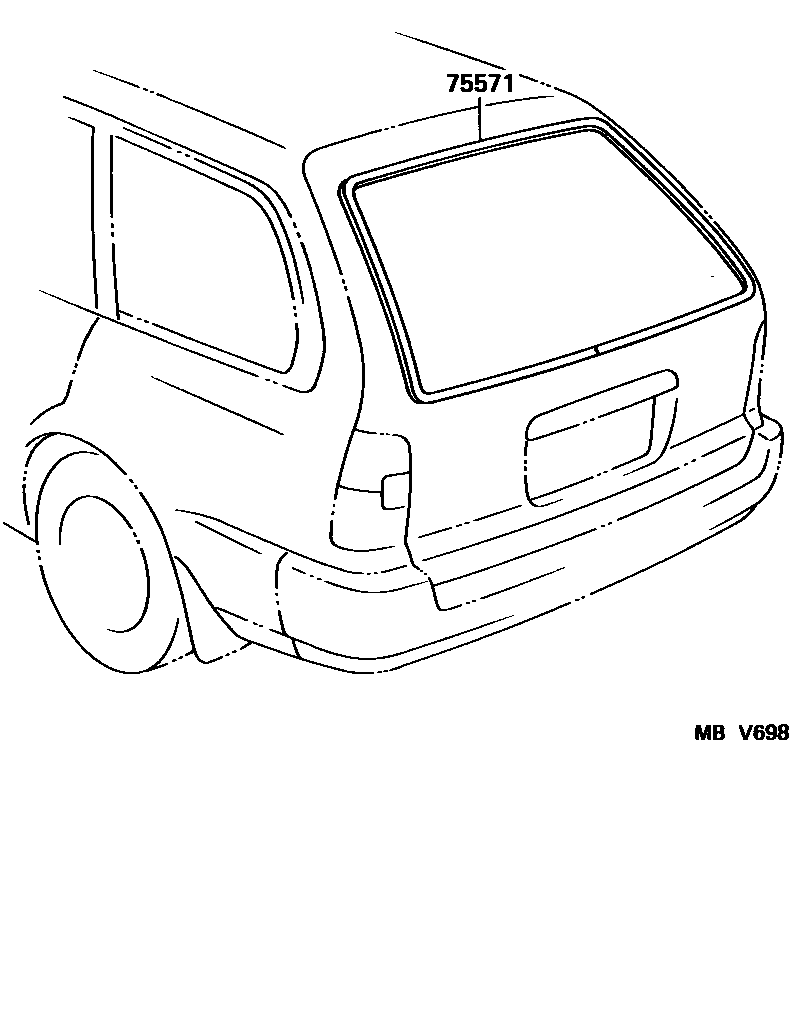

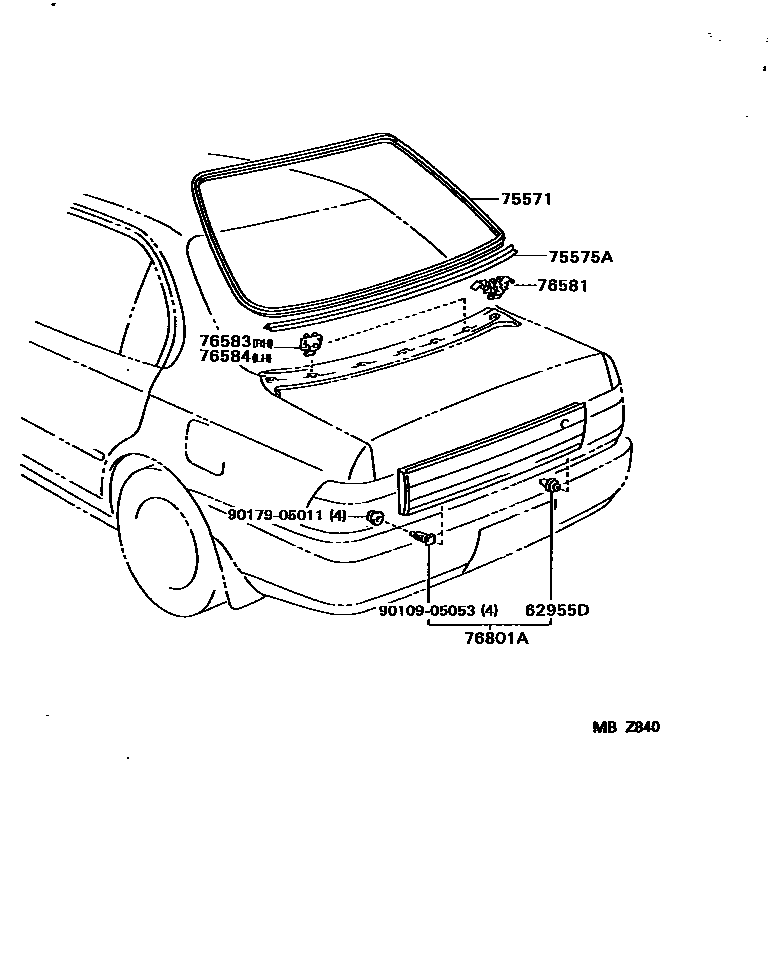

Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62955D | Trunk door trim strip fasteners | 62955-12040 |
| 75571 | Protective strips on the outside of the rear window | 75571-12570 · 75571-13040 |
| 75575A | Lower protective strip on the outside of the rear window | 75575-12360 |
| 76581 | Rear window protective strip fixings | 76581-12080 |
| 76583 | Fixing piece for the lower right protective strip outside the rear window | 76583-12080 |
| 76584 | Lower left protective strip fixing piece on the outer side of the rear window | 76584-12050 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-02070 · 76801-02080 · 76801-12370 · 76801-12420 |
