Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 5 PNC and OE references.

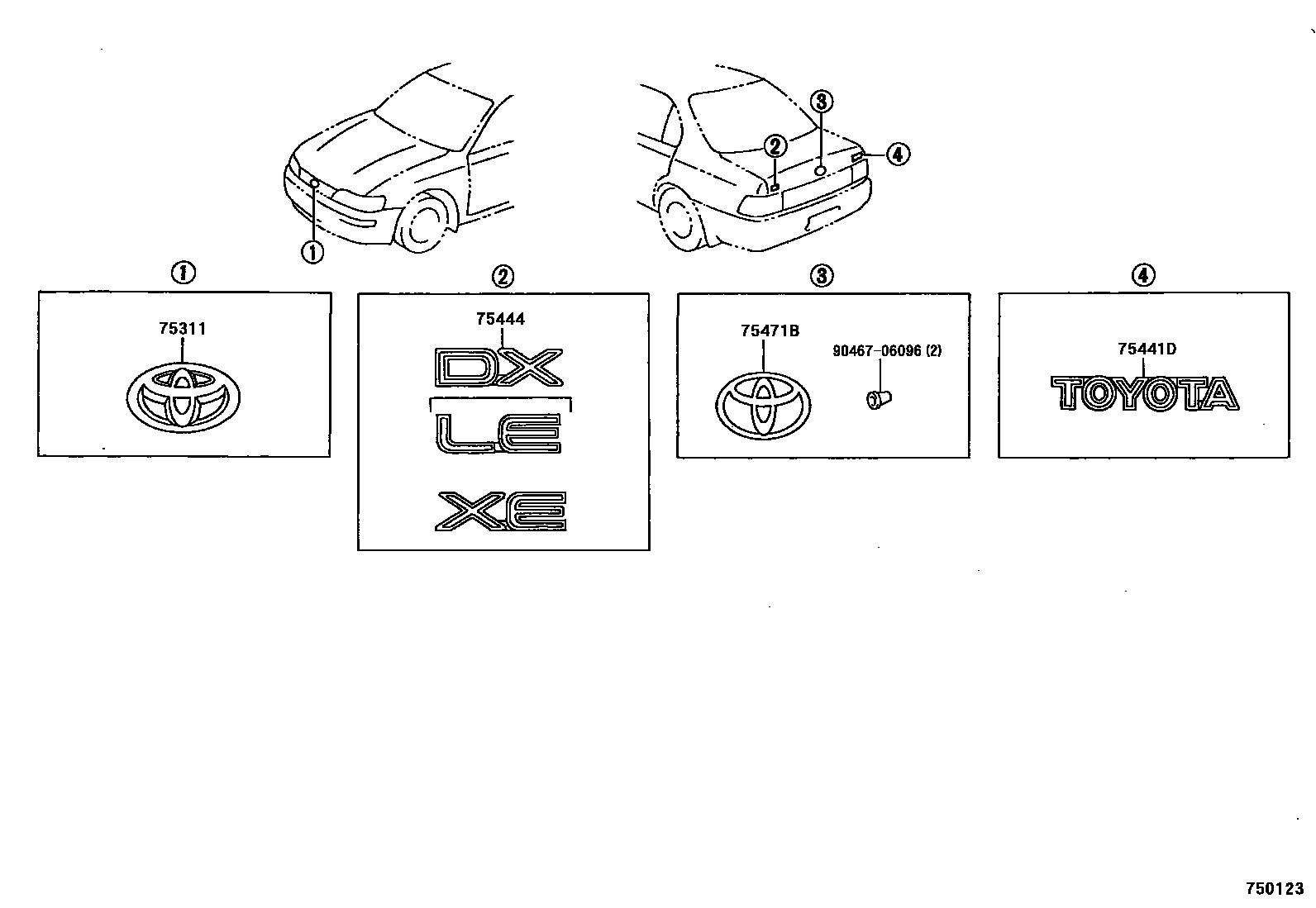

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 750123
丰田徽标和铭牌(车外和车内) — 750123 (199206 – 999999)

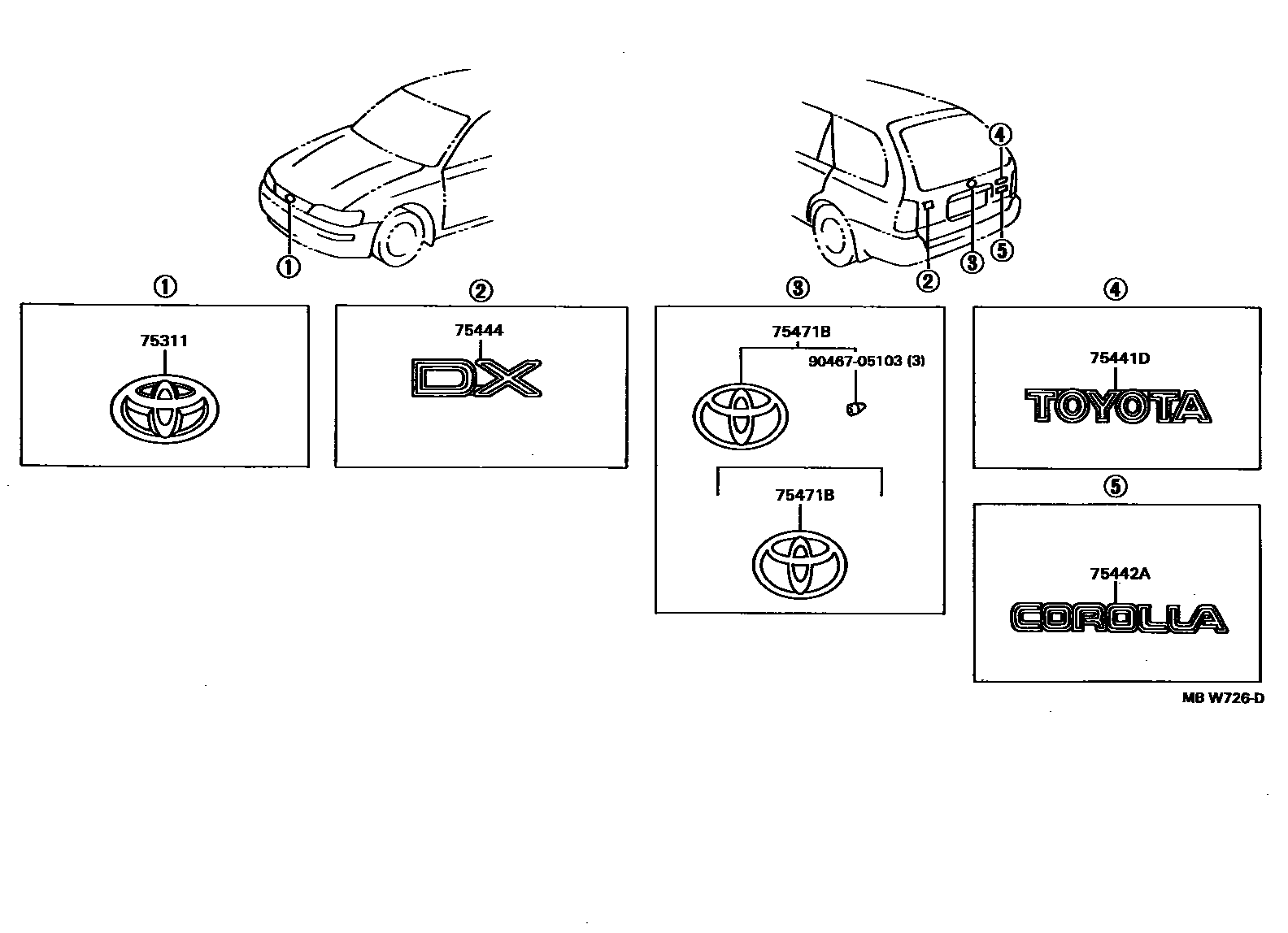

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — MBW726D
丰田徽标和铭牌(车外和车内) — MBW726D (199206 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-1A730
75441DTrunk door No. 1 name plate75441-12650
75442ANo. 2 nameplate on back door75442-1A180
75444Trunk door No. 4 nameplate75444-12550 · 75444-12700
75471BNo. 1 nameplate on rear body75471-12020 · 75471-13040 · 75471-13041
