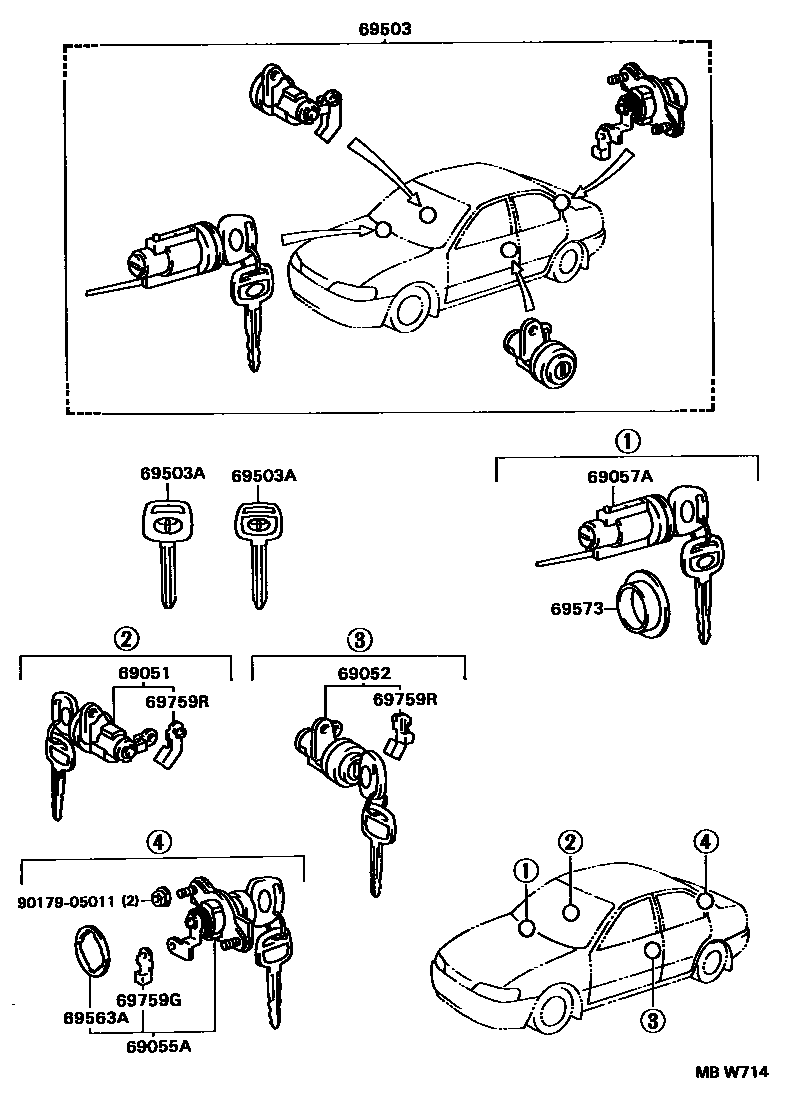

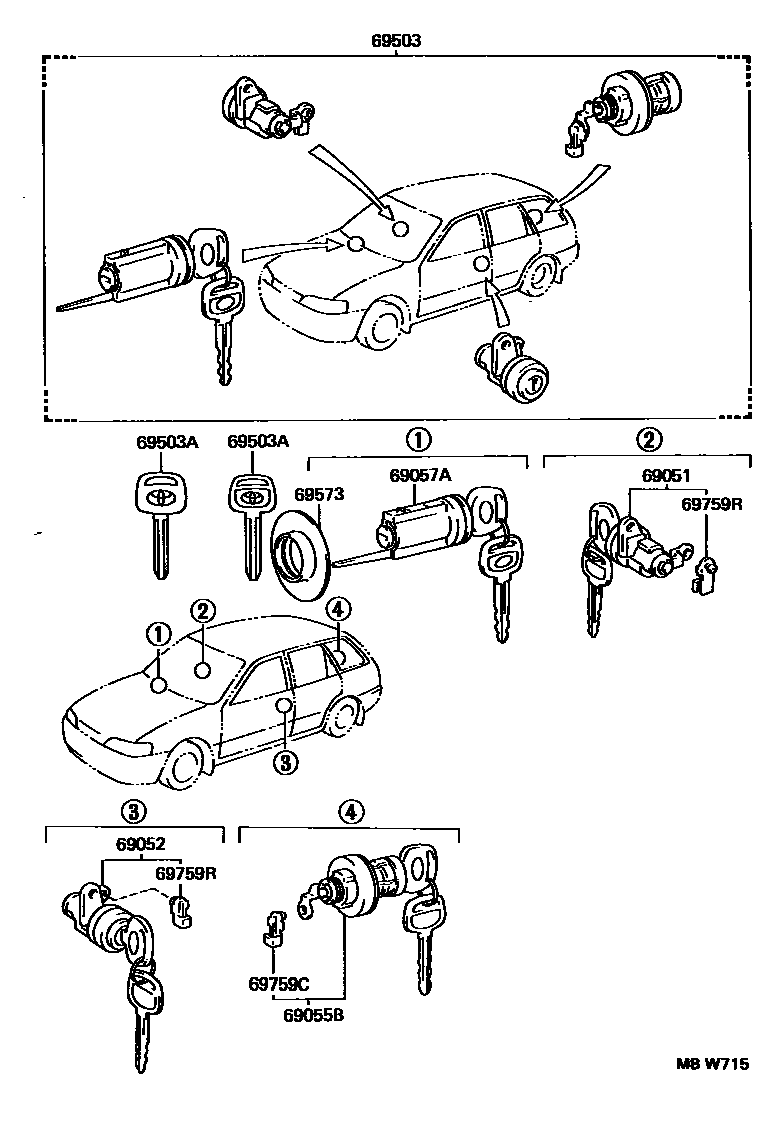

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12340 · 69051-12370 · 69051-13150 · 69051-13160 |
| 69052 | Left door lock cylinder and key assembly | 69052-12340 · 69052-12370 · 69052-13150 · 69052-13160 |
| 69055A | Luggage lock cylinder and key assembly | 69055-12710 · 69055-12810 · 69055-1A170 · 69055-1A180 |
| 69055B | Rear door lock cylinder and key assembly | 69055-13160 · 69055-13170 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12200 · 69057-12250 · 69057-13140 · 69057-13160 |
| 69503 | Door lock cylinder components | 69005-13240 · 69005-13280 · 69005-13310 · 69005-13320 · 69005-1A370 · 69005-1A630 · 69005-1A640 · 69005-1E030 · 69005-1E040 · 69005-1E050 |
| 69503A | external tooth key | 90999-00185 · 90999-00186 · 90999-00188 · 90999-00192 · 90999-00193 |
| 69563A | Trunk door lock cylinder lining | 69563-12070 |
| 69573 | Ignition switch lock cylinder gasket | 69573-12010 |
| 69759C | Back door lock cylinder buckle | 69759-24080 |
| 69759G | Trunk door lock core buckle | 69759-24090 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 |
