Toyota COROLLA 背门板和背门玻璃 — Figure 6708

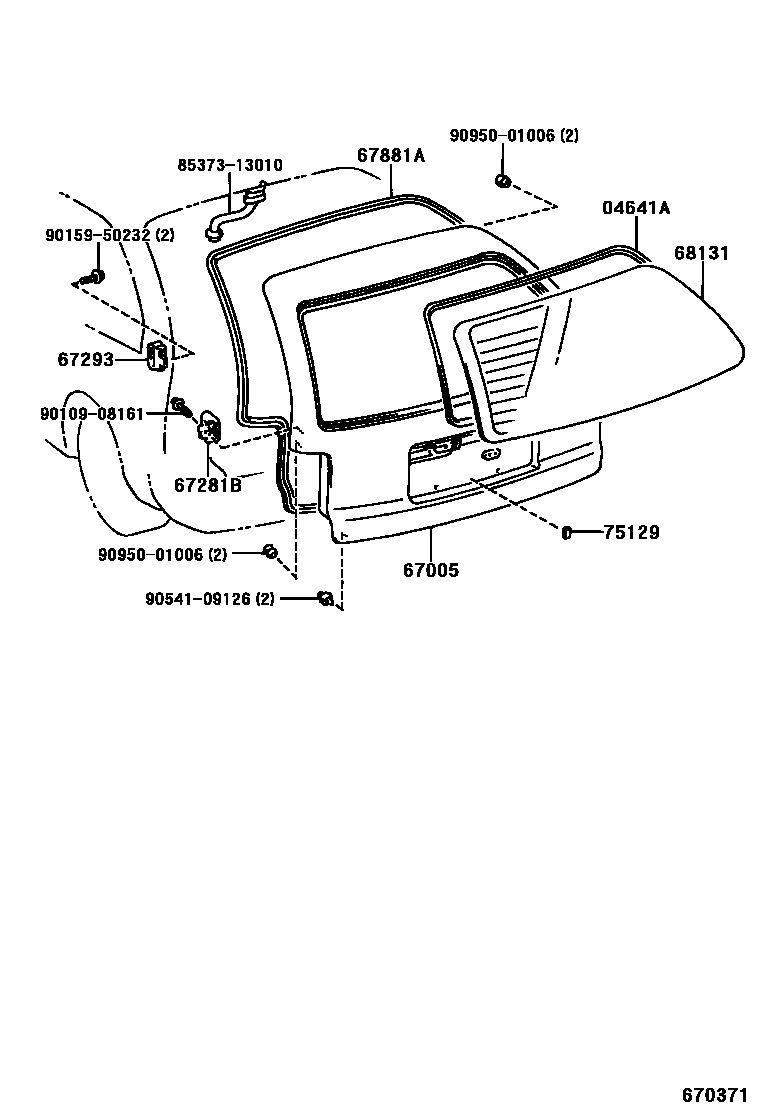

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641A | Rear window glass adhesive sealing strip assembly | 68294-13010 · 68294-13031 |
| 67005 | Rear door panel sub-assembly | 67005-1F170 · 67005-1F171 · 67005-1F270 · 67005-1F271 |
| 67281B | Back door lower block | 67281-13060 |
| 67293 | Back door lower block cushion | 67293-13020 |
| 67881A | Back door seal | 67881-13190 |
| 68131 | back door glass | 68131-13250 · 68131-13270 |
| 75129 | rear license plate cushion | 75129-13010 · 75129-13020 |
