Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

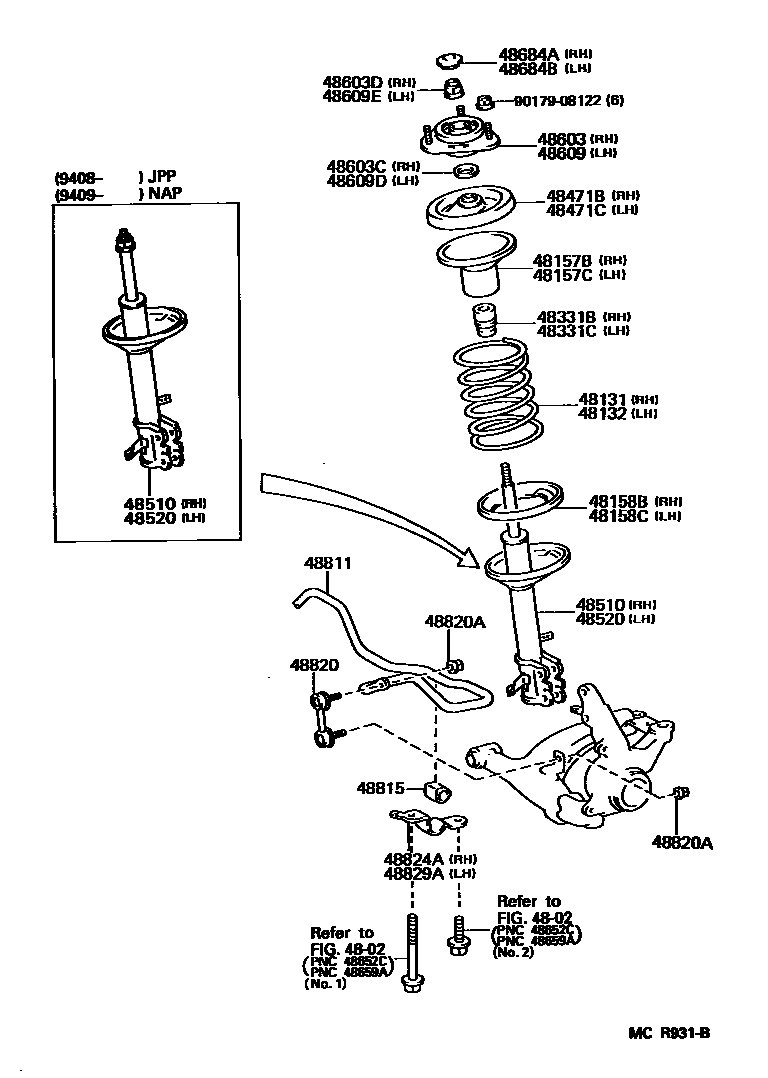

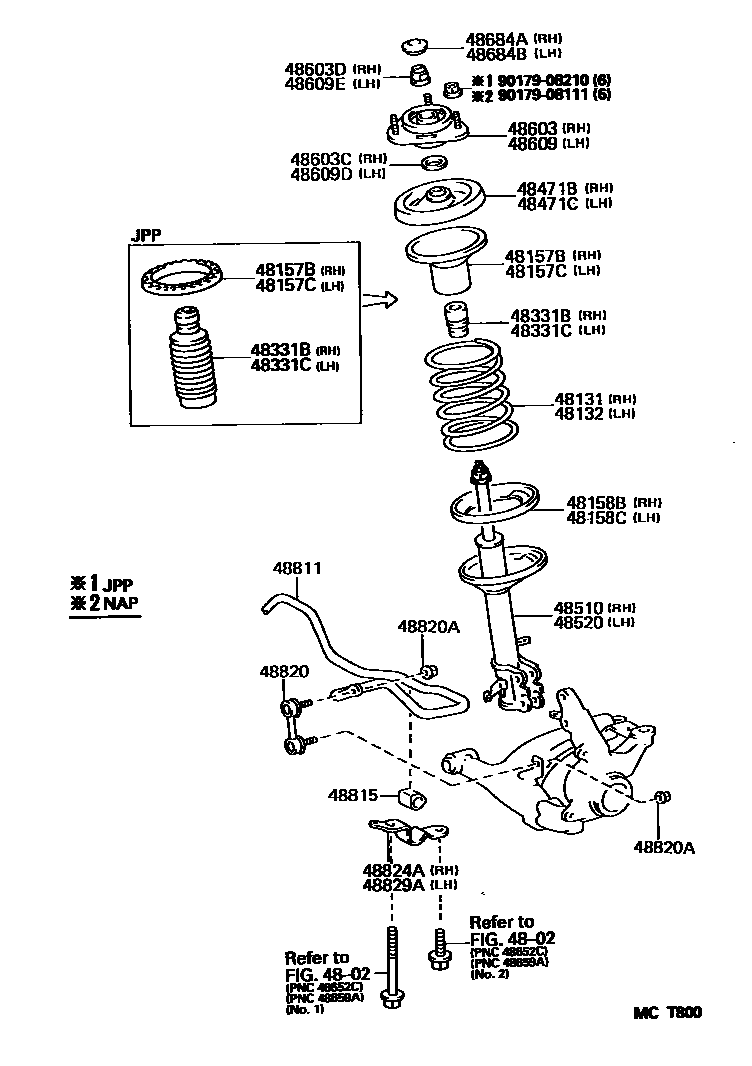

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-1K380 · 48131-1K400 · 48131-1K530 · 48131-1K540 · 48131-1L270 · 48131-1L290 · 48131-1L320 · 48131-1L540 |
| 48132 | Left front coil spring | 48131-1K380 · 48131-1K400 · 48131-1K540 · 48131-1K790 · 48131-1L270 · 48131-1L290 · 48131-1L320 · 48131-1L340 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-12060 · 48157-12070 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-12060 · 48157-12070 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-12030 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-12030 |
| 48331B | Right front spring buffer block | 48331-12120 · 48331-12140 |
| 48331C | Left front spring buffer block | 48331-12120 · 48331-12140 |
| 48471B | Front coil spring upper right seat | 48044-01020 · 48044-12090 |
| 48471C | Front coil spring upper left seat | 48044-01020 · 48044-12090 |
| 48510 | Right front shock absorber assembly | 48510-02030 · 48510-09140 · 48510-12870 |
| 48520 | Left front shock absorber assembly | 48520-02030 · 48520-09110 · 48520-12740 |
| 48603 | Right front suspension bearing sub-assembly | 48609-12270 · 48609-12330 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22049 |
| 48603D | Nut (for front mount to right front shock absorber) | 94182-11400 |
| 48609 | Left front suspension bearing sub-assembly | 48609-12270 · 48609-12330 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22049 |
| 48609E | Nut (for front mount to left front shock absorber) | 94182-11400 |
| 48684A | Right front suspension support dust cover | 48684-12070 · 48684-32010 |
| 48684B | Left front suspension support dust cover | 48684-12070 · 48684-32010 |
| 48811 | front stabilizer bar | 48811-12720 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-12220 |
| 48820 | Front stabilizer bar connecting rod assembly | 48820-33010 |
| 48820A | Nut (for front stabilizer bar link) | 90179-10183 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-12130 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48829-12060 |
