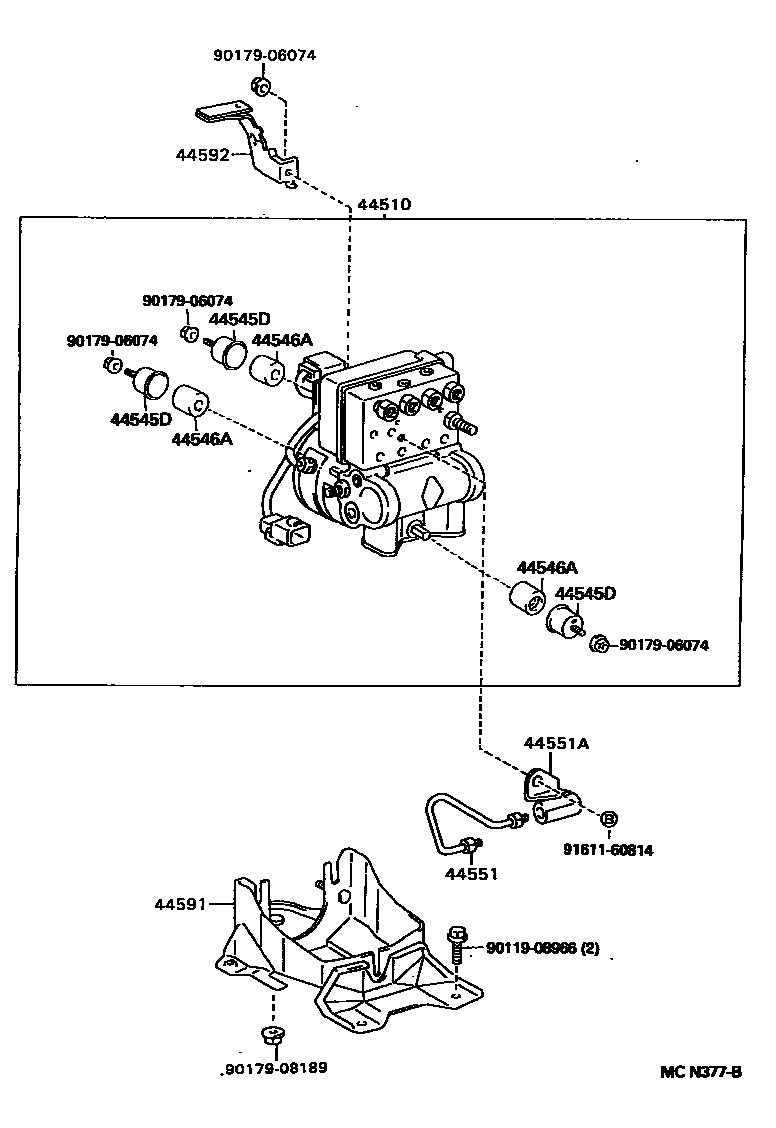

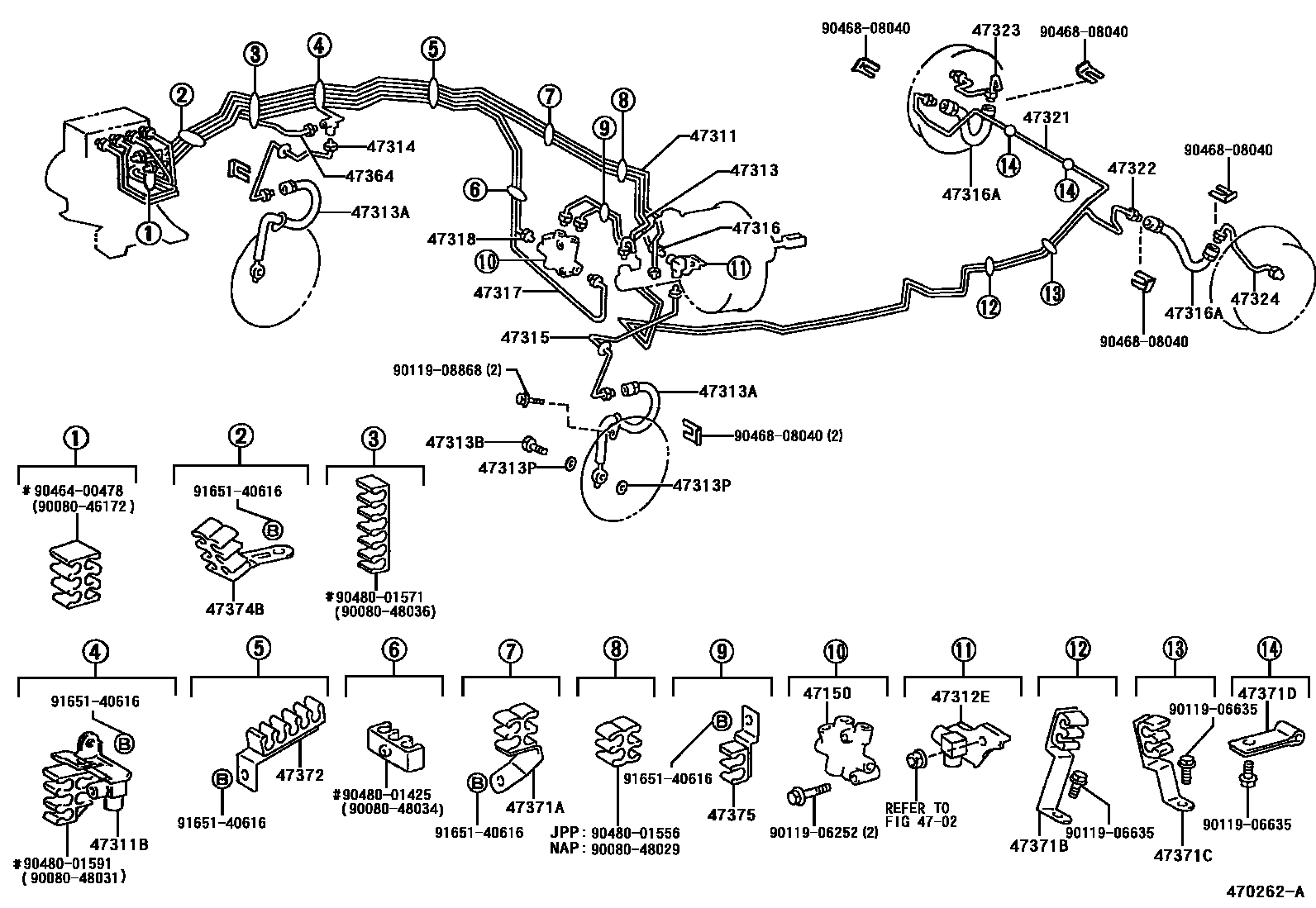

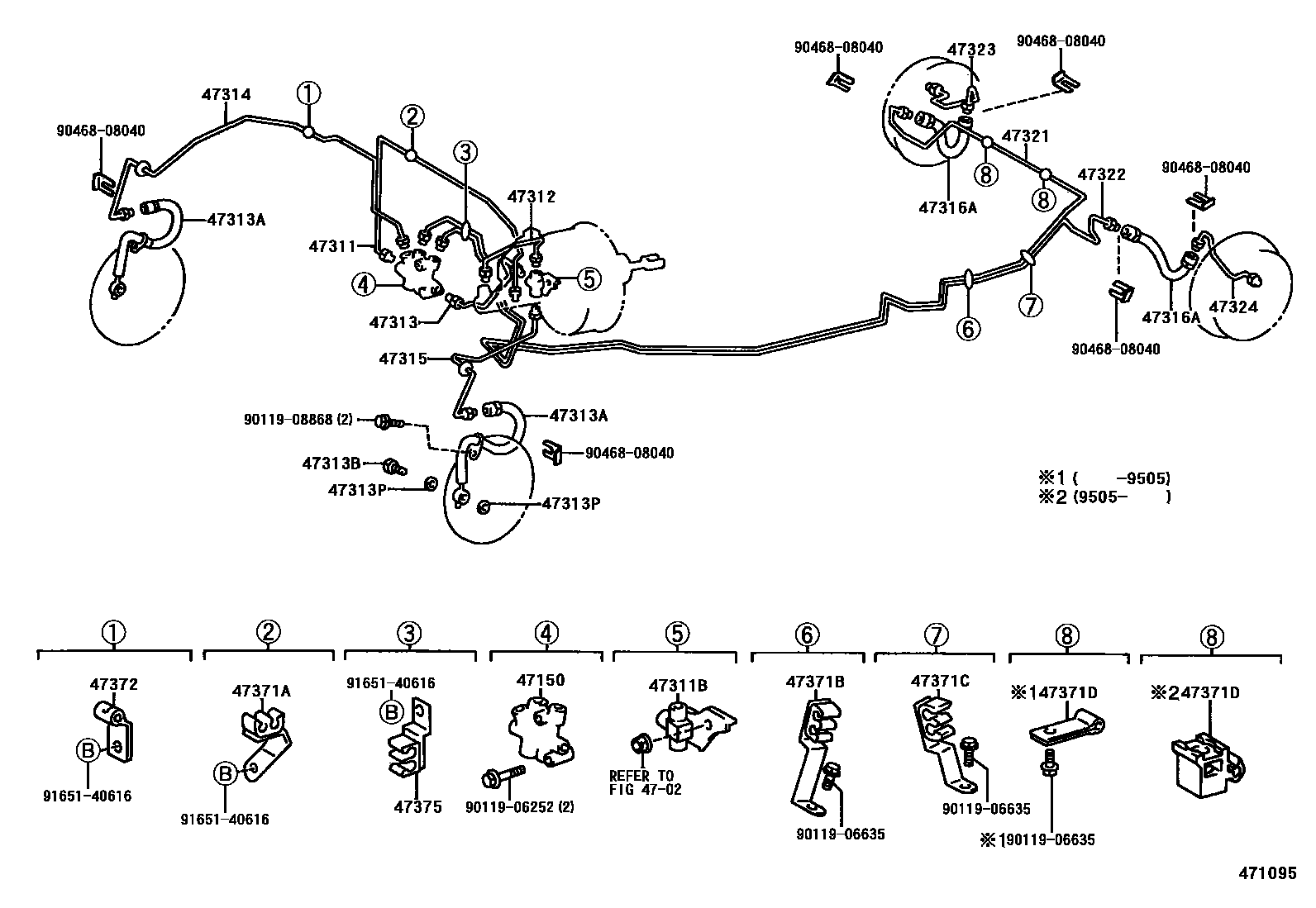

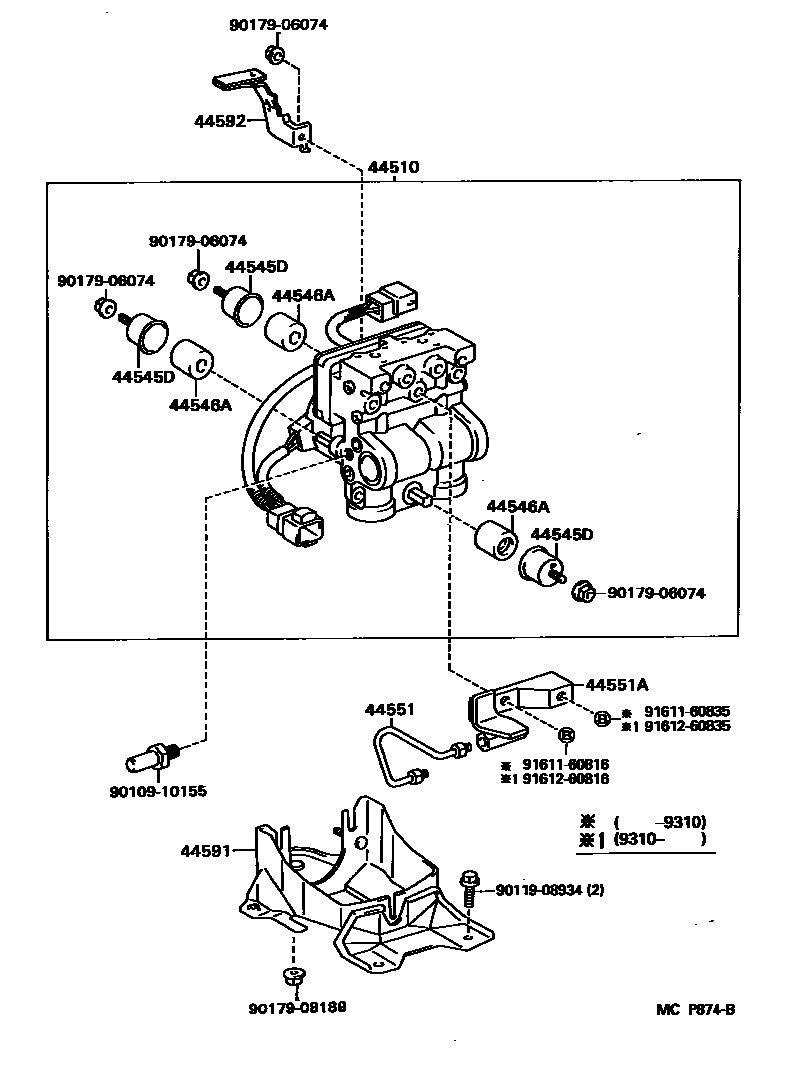

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 4 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44510-12070 · 44510-12090 · 44510-12110 · 44510-12160 |
| 44545D | Brake actuator bolt mount | 44545-12020 · 44545-12090 |
| 44546A | Brake actuator bolt cushion | 44546-12010 · 44546-12090 |
| 44551 | No. 1 brake actuator pipe | 44551-12040 |
| 44551A | Pipe joint No. 1 (for brake actuator) | 90412-10197 · 90904-12006 |
| 44591 | No. 1 brake actuator bracket | 44590-12010 · 44591-12030 · 44591-12031 |
| 44592 | No. 2 brake actuator bracket | 44592-12020 · 44594-12010 |
| 47150 | Proportional valve assembly | 47150-12150 · 47150-12240 |
| 47311 | No. 1 front brake pipe | 47311-12400 · 47311-12490 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10207 · 90413-10159 |
| 47312 | No. 2 front brake pipe | 47312-12260 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10208 |
| 47313 | No. 3 front brake pipe | 47313-12210 · 47313-12211 · 47313-12300 |
| 47313A | No. 1 front flexible hose | 90947-02659 · 90947-02660 · 90947-02798 · 90947-02799 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-12350 · 47314-12370 |
| 47315 | No. 5 front brake pipe | 47315-12420 · 47315-12480 |
| 47316 | No. 6 front brake pipe | 47316-12220 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02657 · 90947-02783 · 90947-02809 |
| 47317 | No. 7 front brake pipe | 47317-12070 |
| 47318 | No. 8 front brake pipe | 47318-12210 |
| 47321 | No. 1 rear brake pipe | 47321-12120 · 47321-12150 · 47321-12190 |
| 47322 | No. 2 rear brake pipe | 47322-12270 · 47322-12300 · 47322-12340 |
| 47323 | No. 3 rear brake pipe | 47323-12250 |
| 47324 | No. 4 rear brake pipe | 47324-12210 |
| 47364 | No. 13 front brake pipe | 47364-12050 |
| 47371A | No. 1 brake pipe clamp | 47371-12110 · 47371-12120 |
| 47371B | No. 6 brake pipe clamp | 47375-12010 · 47375-12040 |
| 47371C | No. 7 brake pipe clamp | 47375-12020 · 47375-12060 |
| 47371D | No. 8 brake pipe clamp | 47371-12150 · 90461-08687 |
| 47372 | No. 2 brake pipe clamp | 47372-12040 · 90461-08652 |
| 47374B | No. 4 brake pipe clamp | 47374-12020 |
| 47375 | No. 5 brake pipe clamp | 47375-12030 |
