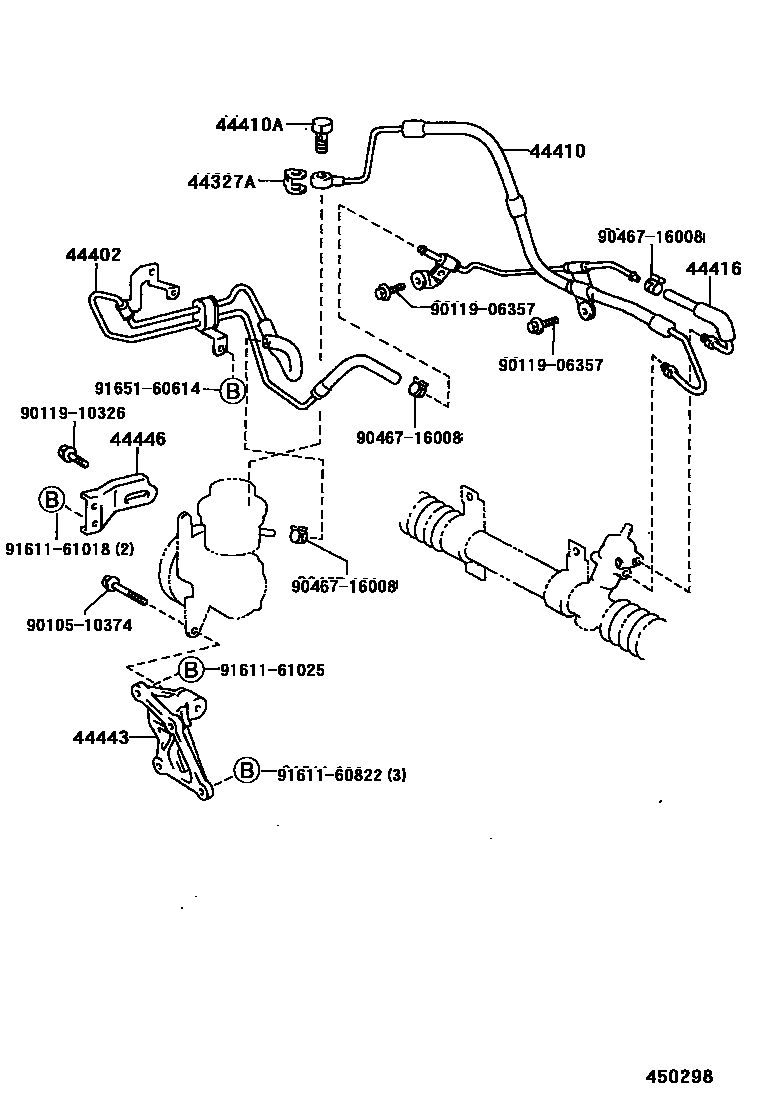

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-12140 |
| 44410 | Pressure supply pipe assembly | 44410-12492 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16012 |
| 44416 | Oil return pipe (for steering gear outlet) | 44406-12160 |
| 44443 | pump bracket | 44443-12100 |
| 44446 | Adjust the stand | 44446-12060 · 44446-12090 |
