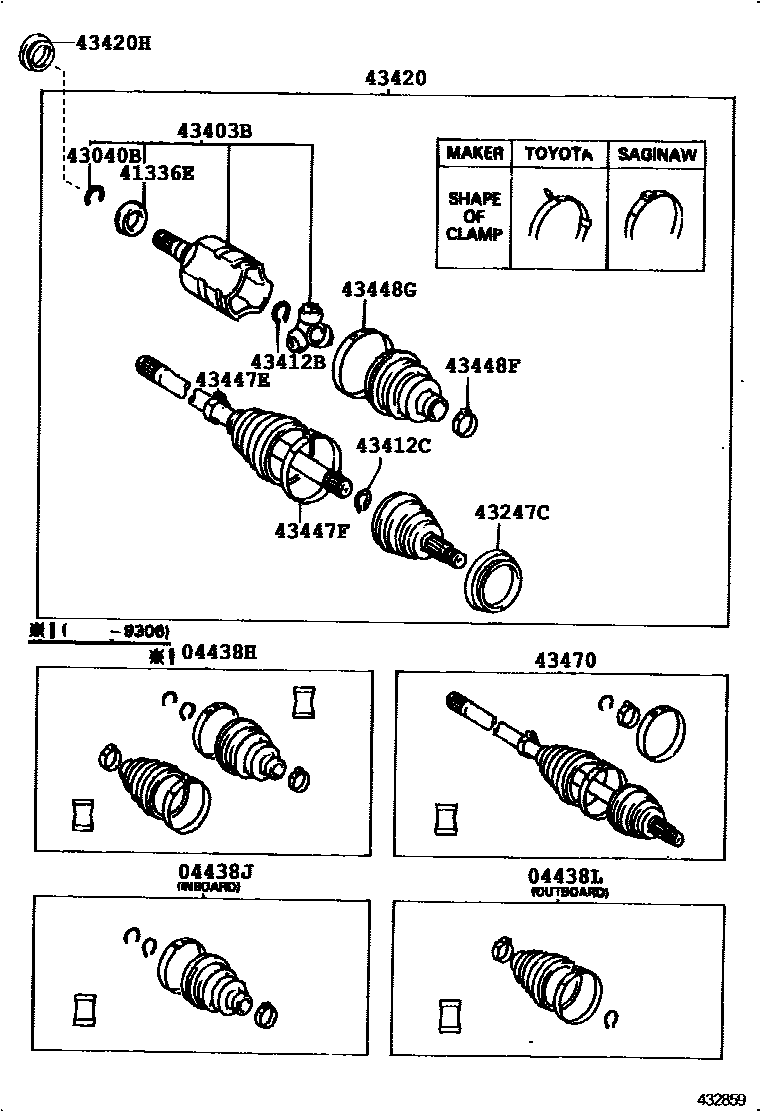

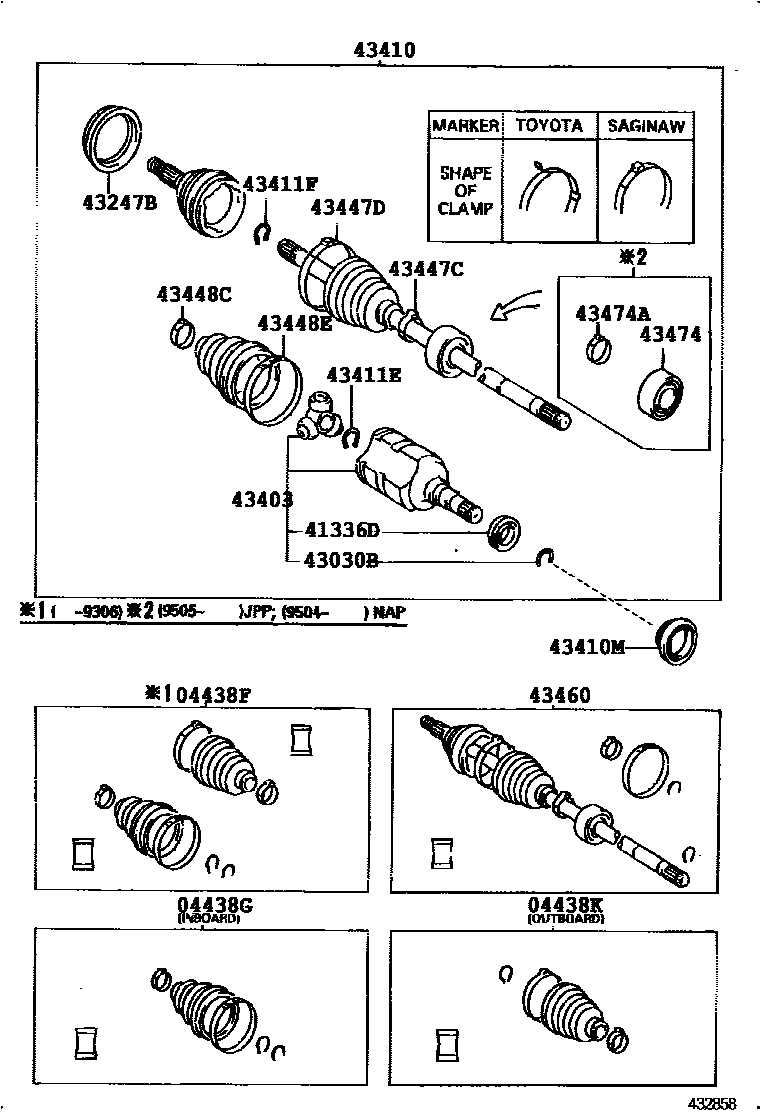

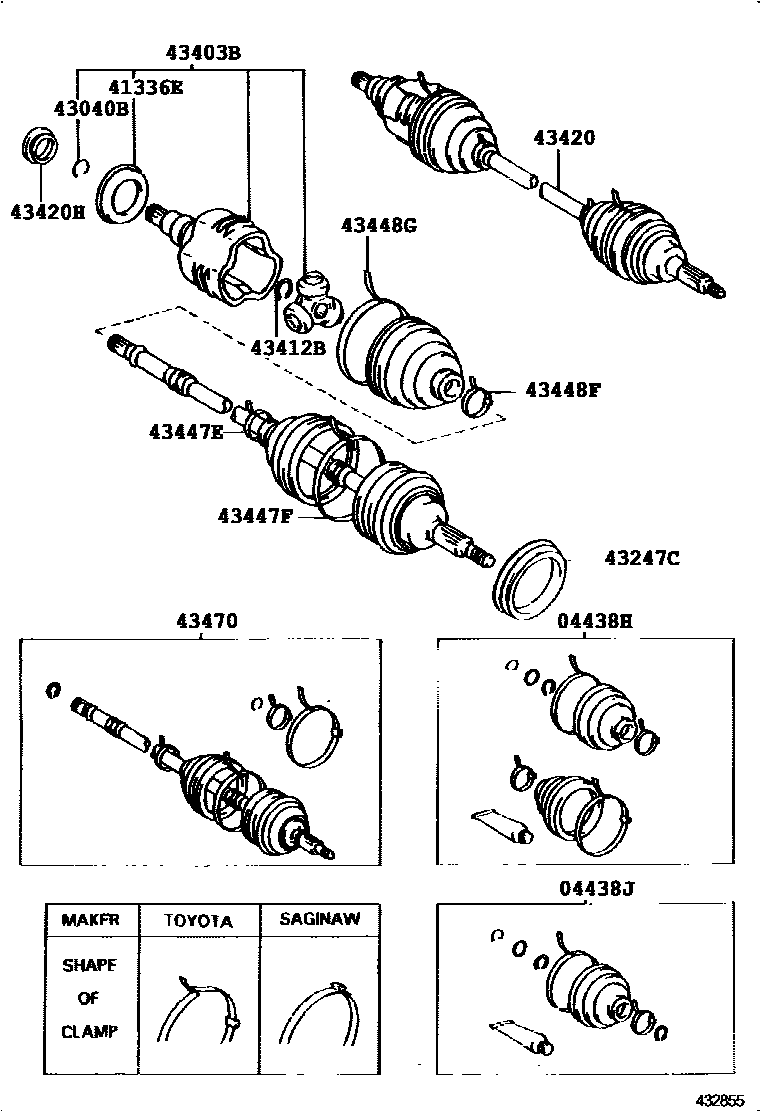

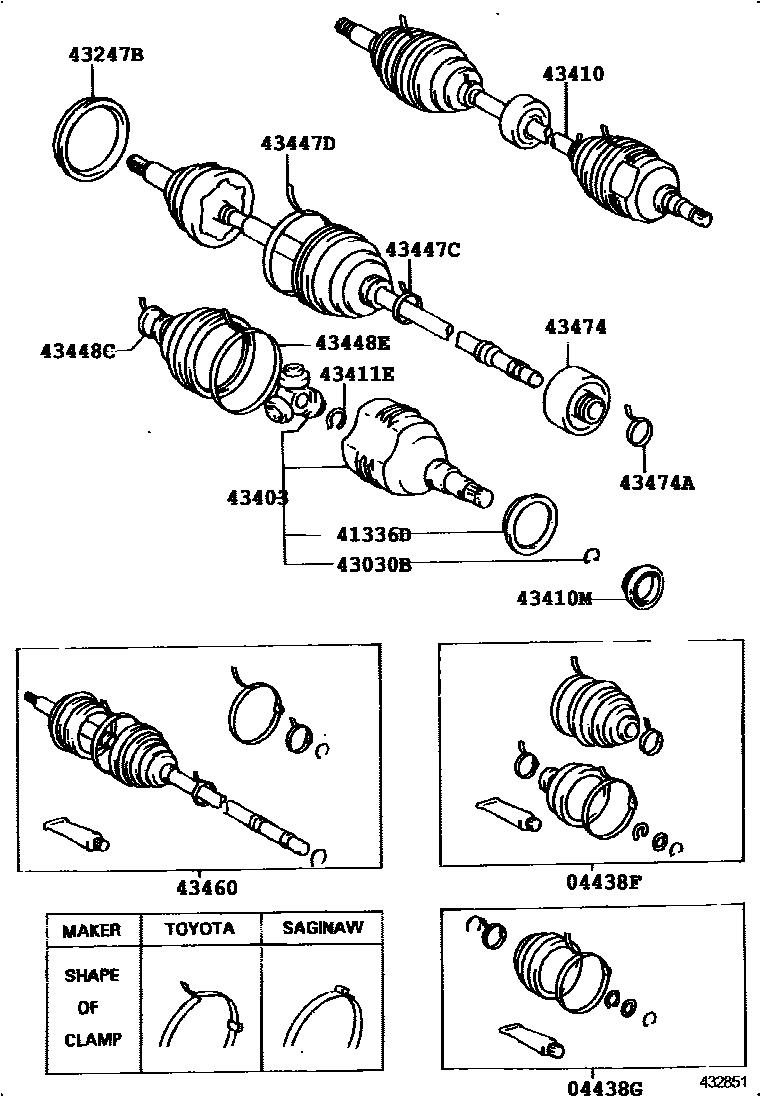

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 4 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-02060 · 04438-12172 · 04438-20110 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-02050 · 04438-12162 · 04438-12410 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-02060 · 04438-12172 · 04438-12300 · 04438-32172 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-02050 · 04438-12162 · 04438-12410 · 04438-32161 · 04438-32230 |
| 04438K | Right front drive shaft outer universal joint dust boot assembly | 04438-02070 · 04438-02071 |
| 04438L | Left front drive shaft outer universal joint dust boot assembly | 04438-02070 · 04438-02071 |
| 41336D | Right front driveshaft dust cover | 41336-01010 · 41336-12010 |
| 41336E | Left front driveshaft dust cover | 41336-01010 · 41336-12010 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90080-52015 · 90521-26004 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90080-52015 · 90521-26004 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-02020 · 43247-02030 · 43247-12010 · 43247-33010 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-02020 · 43247-02030 · 43247-12010 · 43247-33010 |
| 43403 | Right front axle inner universal joint assembly | 43047-02030 · 43403-12040 |
| 43403B | Left front axle inner universal joint assembly | 43047-02030 · 43403-12040 |
| 43410 | Right front driveshaft assembly | 43410-02030 · 43410-02031 · 43410-02040 · 43410-02041 · 43410-02070 · 43410-02080 · 43410-20420 · 43410-20440 · 43410-20450 · 43410-20460 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-34012 · 90311-34016 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90080-52008 · 90520-22005 |
| 43411F | Outer shaft snap ring (for right front axle inner drive shaft) | 90080-52004 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90080-52008 · 90520-22005 |
| 43412C | Outer shaft snap ring (for left front axle inner drive shaft) | 90080-52004 |
| 43420 | Left front drive shaft assembly | 43420-02030 · 43420-02031 · 43420-02040 · 43420-02041 · 43420-02070 · 43420-02071 · 43420-02080 · 43420-12310 · 43420-12330 · 43420-20111 · 43420-20281 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-34012 · 90311-34013 · 90311-34017 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-14010 · 42345-16010 · 90080-46147 · 90949-01078 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-16020 · 42345-16040 · 90080-46149 · 90949-01076 · 90949-01080 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-14010 · 42345-16010 · 90080-46147 · 90949-01078 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-16020 · 42345-16040 · 90080-46149 · 90949-01076 · 90949-01080 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-16010 · 90080-46148 · 90949-01078 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-16040 · 90080-46150 · 90949-01076 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-16010 · 90080-46148 · 90949-01078 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-16040 · 90080-46150 · 90949-01076 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09050 · 43460-09051 · 43460-09060 · 43460-09061 · 43460-09190 · 43460-09200 · 43460-29098 · 43460-29117 · 43460-29167 · 43460-29197 · 43460-29198 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09100 · 43470-09101 · 43470-09110 · 43470-09111 · 43470-09280 · 43470-09290 · 43470-19715 · 43470-29107 · 43470-29237 · 43470-29345 |
| 43474 | drive shaft damper | 43474-02041 · 43474-20050 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-14010 · 42345-16030 · 90080-46148 |
