Toyota COROLLA 前桥壳和差速器 — Figure 4301

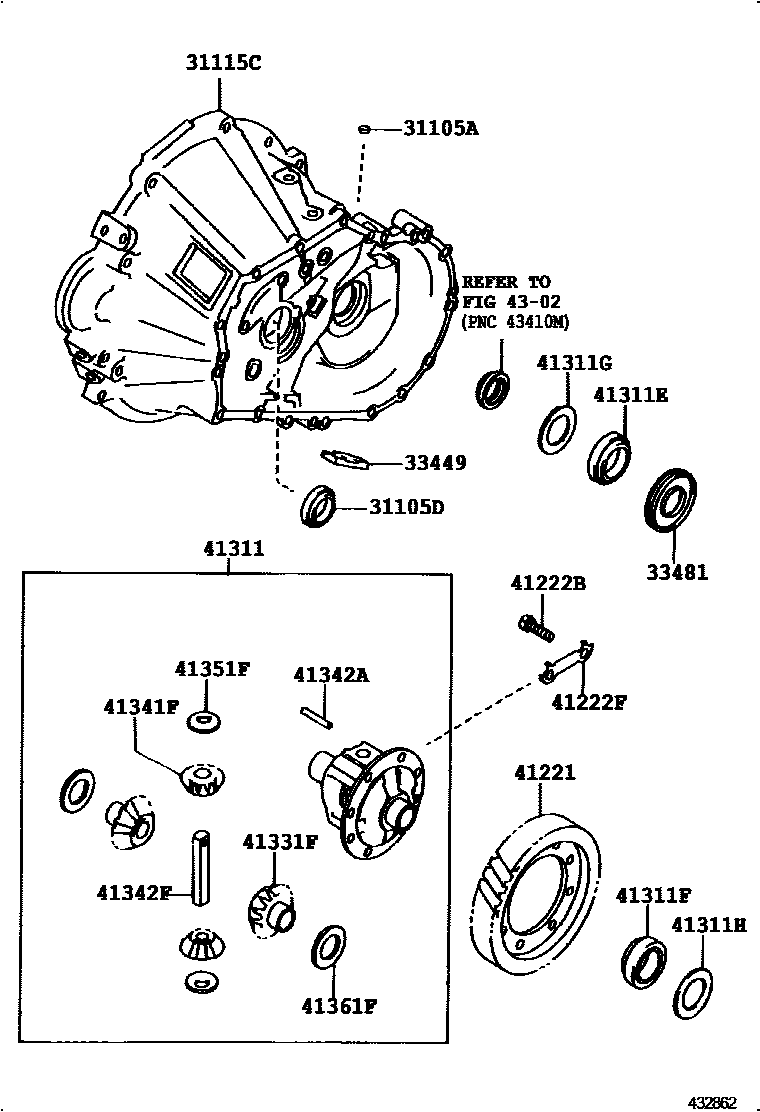

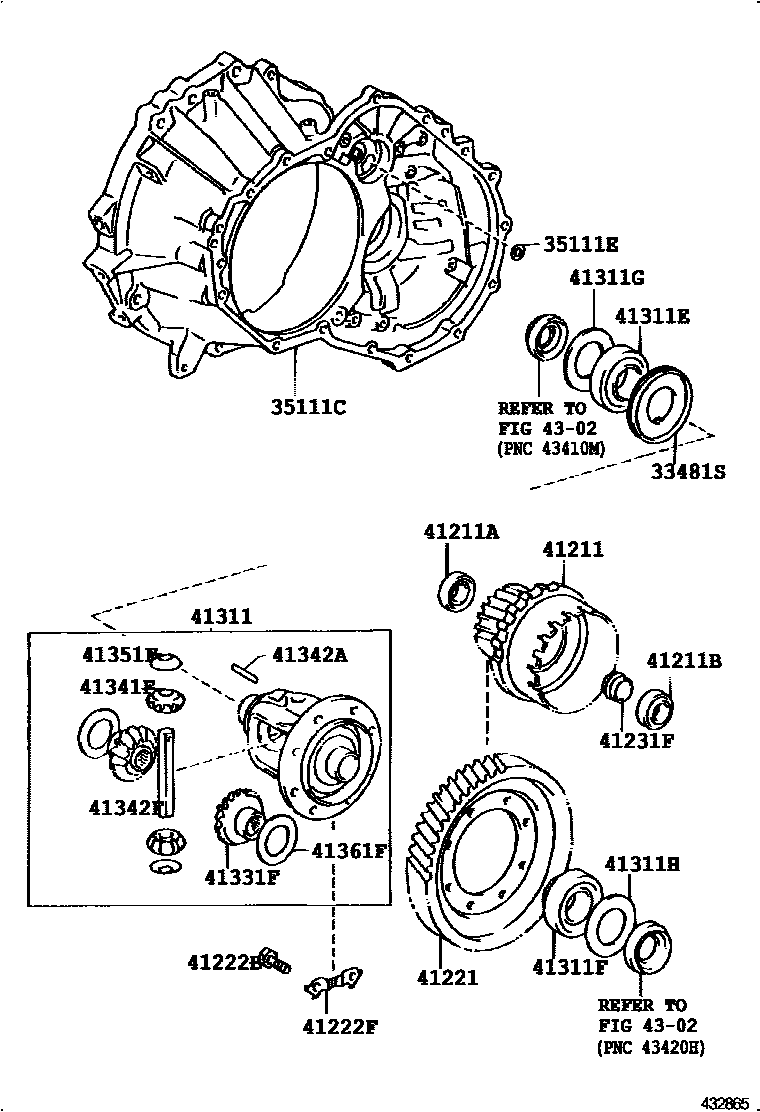

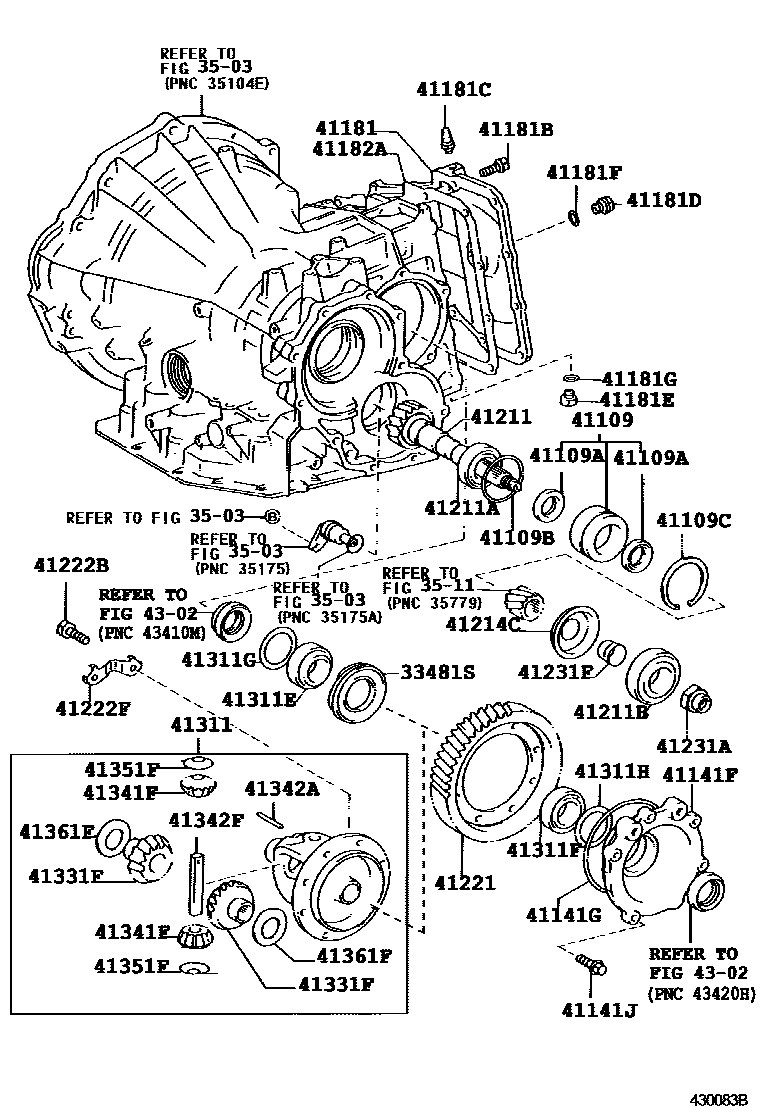

Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 3 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25016 |
| 31115C | Front transmission axle housing (MTM) | 31115-12040 · 31115-16040 · 31115-16041 |
| 33449 | derailleur magnet | 33449-12020 |
| 33481 | Speedometer driving gear (MTM) | 33481-12040 |
| 33481S | Speedometer driving gear (ATM) | 33481-12040 · 33481-12050 |
| 35111C | Transmission axle housing | 35105-12050 |
| 35111E | Gasket (for front transaxle housing) | 90210-13002 |
| 41109 | Differential driving pinion bearing cover sub-assembly | 41109-20011 · 41109-32010 |
| 41109A | Oil seal (for differential drive pinion bearing housing) | 90310-34005 |
| 41109B | O-ring (for differential drive pinion bearing housing) | 90301-65003 |
| 41109C | Hole snap ring (for differential drive pinion bearing housing) | 90521-76002 |
| 41141F | Front differential side bearing retainer | 41141-12020 |
| 41141G | O-ring (for front differential side bearing retainer) | 90301-99026 |
| 41141J | Bolt (for front differential side bearing retainer) | 91611-60825 |
| 41181 | front differential case cover | 41181-12020 |
| 41181B | Bolts (for securing front differential case cover) | 90119-08369 |
| 41181C | Breather plug (for front differential case cover) | 90930-03031 |
| 41181D | Plug (for front differential oil fill port) | 90341-18006 · 90341-18038 · 90341-18049 |
| 41181E | Screw plug (for front differential drain port) | 90341-18021 |
| 41181F | Gasket (for front differential oil plug) | 90430-18008 |
| 41181G | Gasket (for front differential drain plug) | 90430-18008 |
| 41182A | Differential case cover gasket | 41182-12010 |
| 41211 | Differential drive pinion | 41206-12030 · 41211-12160 · 41211-20200 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-30020 · 90366-35013 · 90366-35050 · 90366-35082 · 90366-35084 · 90366-35090 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-30019 · 90366-40010 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-32010 |
| 41221 | Front differential ring gear | 41221-12190 · 41221-12310 · 41221-12360 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11353 · 90105-11040 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-12040 · 41222-12050 |
| 41231A | Drive pinion lock nut | 90179-20004 |
| 41231F | Front differential drive pinion bearing spacer | 41231-12030 · 41231-32010 |
| 41311 | front differential case | 41301-12040 · 41301-12041 · 41301-12051 · 41301-12101 · 41301-17021 · 41301-20150 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-38004 · 90366-38014 · 90368-38002 · 90368-38010 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-38014 · 90366-42001 · 90368-38002 · 90368-38010 |
| 41311G | Front flat washer (for front differential case) | 90201-41002 · 90201-41003 · 90201-41004 · 90201-41005 · 90201-41006 · 90201-41007 · 90201-41008 · 90201-41009 · 90201-41010 · 90201-41011 · 90201-41012 · 90201-41013 · 90201-41014 · 90201-41015 · 90201-41016 · 90201-41017 · 90201-41018 · 90201-41019 · 90201-41020 · 90201-41021 · 90201-41022 · 90201-41023 · 90201-41024 · 90201-41045 |
| 41311H | Rear flat washer (for front differential case) | 90201-41012 · 90201-41024 · 90201-41025 · 90201-41026 · 90201-41027 · 90201-41028 · 90201-41029 · 90201-41030 · 90201-41031 · 90201-41032 · 90201-41033 · 90201-41034 · 90201-41035 · 90201-41036 · 90201-41039 · 90201-41040 · 90201-41041 · 90201-41042 · 90201-41043 · 90201-41044 · 90201-41046 · 90201-41047 · 90201-41048 · 90201-41049 · 90201-41050 · 90201-41051 · 90201-41052 · 90201-41053 · 90201-41054 · 90201-41055 · 90201-41056 · 90201-41057 · 90201-41058 · 90201-41059 · 90201-41060 · 90201-41061 · 90201-41062 · 90201-41063 · 90201-41064 |
| 41331F | Front differential side gear | 41331-12011 |
| 41341F | Front differential planetary gear | 41341-12030 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-12140 · 41342-20060 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 |
