Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501

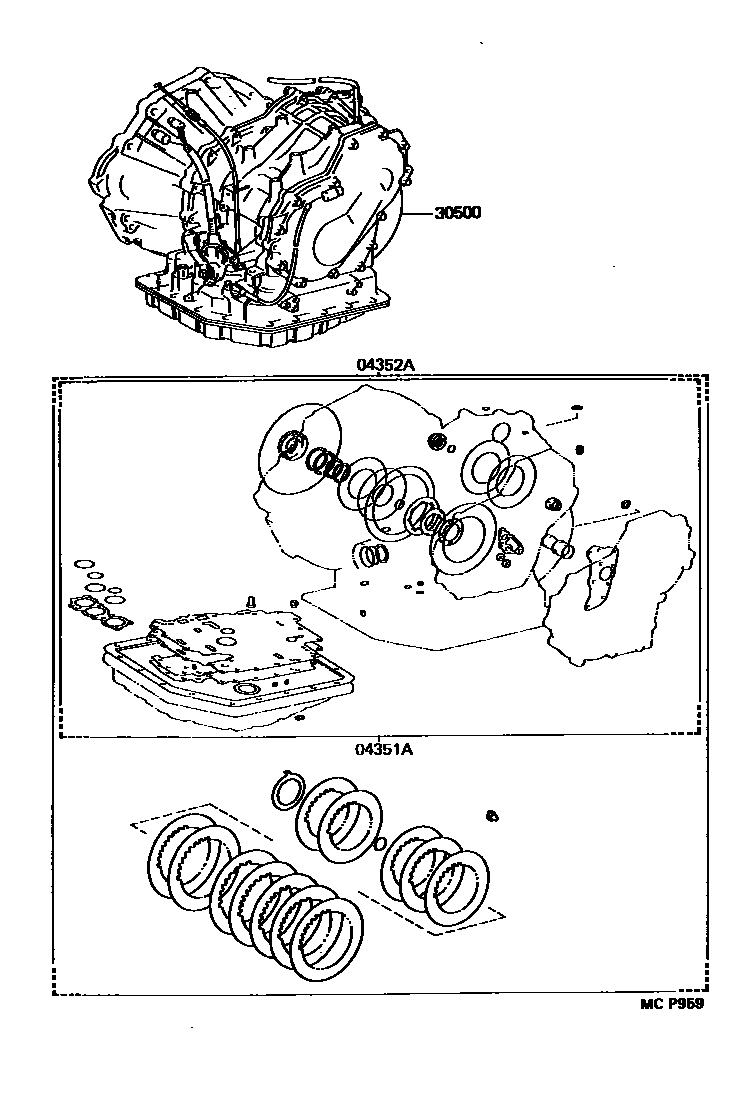

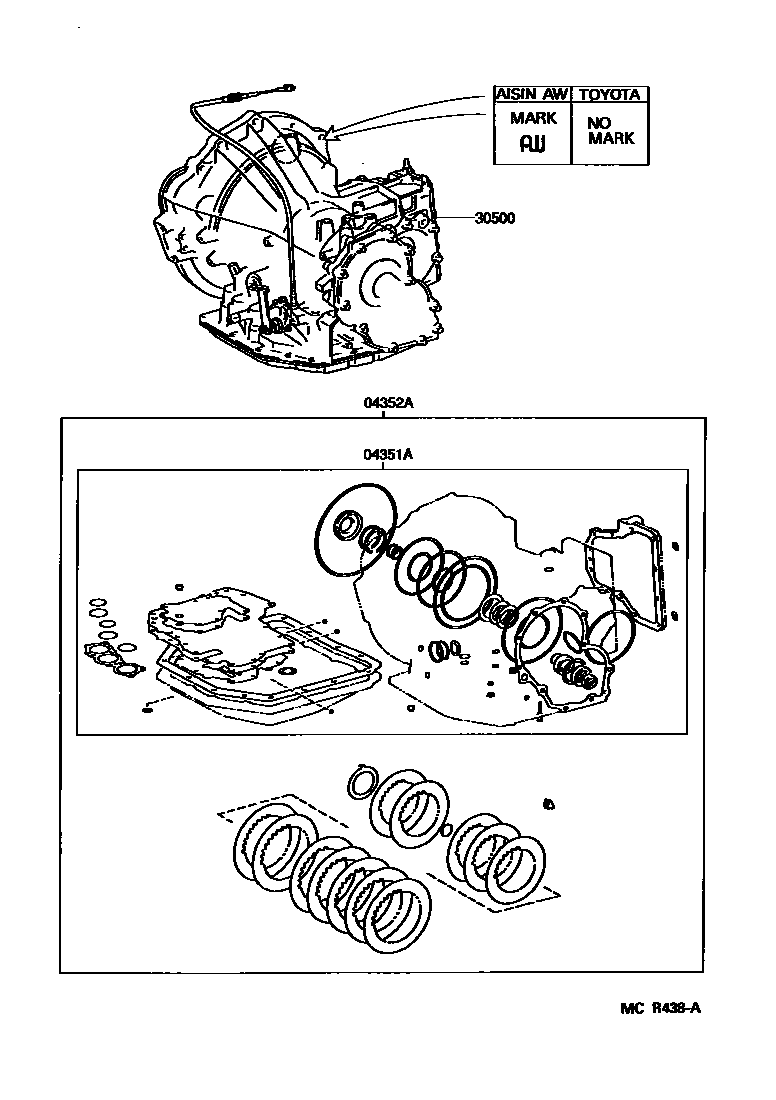

Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-12080 · 04351-12090 · 04351-12100 · 04351-12110 |
| 04352A | Transaxle Overhaul Kit (ATM) | 04352-12130 · 04352-12140 · 04352-12141 · 04352-12150 · 04352-12151 · 04352-12160 · 04352-12180 |
| 30500 | Automatic transmission axle assembly | 30500-12810 · 30500-12811 · 30500-12820 · 30500-12860 · 30500-12870 · 30500-1A070 · 30500-1A140 · 30500-1A270 |
