Toyota COROLLA Cylinder Head — Figure 1104

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 1 images and 24 PNC and OE references.

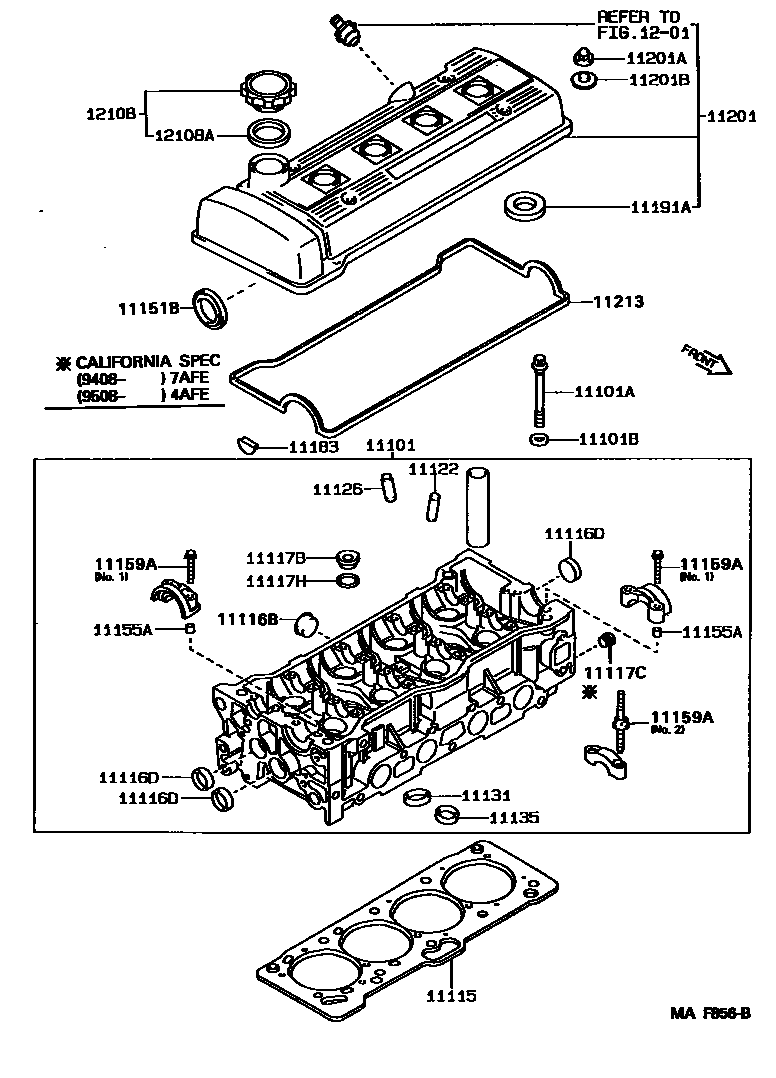

Toyota COROLLA Cylinder Head EPC diagram — MAF856B
Cylinder Head — MAF856B (199206 – 999999)

PNC and OE references

PNCPart nameOE numbers
11101CYLINDER HEAD SUB-ASSY11101-19375 · 11101-19405
11101ABOLT (FOR CYLINDER HEAD)90109-10058 · 90109-10059
11101BFlat Washer (for cylinder head assembly)90201-10344
11115GASKET, CYLINDER HEAD11115-16120 · 11115-16121 · 11115-16130 · 11115-16150
11116BNo. 2 sealing plug96411-42500
11116DNo. 4 sealing plug96411-42800
11117BNo. 2 headed tapered thread plug90341-20002
11117CNo. 3 headed tapered thread plug90344-53005
11117HGasket (for coolant hole)90430-20004
11122BUSH, INTAKE VALVE GUIDE11122-15030 · 11123-15030
11126BUSH, EXHAUST VALVE GUIDE11122-15030 · 11123-15030
11131intake valve seat11131-16040 · 11132-16040
11135Exhaust valve seat11135-15030 · 11136-15030
11151BOIL SEAL (FOR CAMSHAFT SETTING)90311-35013 · 90311-35022
11155APIN, RING W/HEAD90253-09001
11159ABOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90109-06080 · 90109-06222
11183PLUG, SEMICIRCULAR11183-15020
11191AGasket (for spark plug bushing)11193-15010
11201CYLINDER HEAD COVER SUB-ASSY11210-15070 · 11210-15071
11201ACap nut (for cylinder head cover)90176-06028
11201BGasket (for cylinder head cover)90210-06010
11213GASKET, CYLINDER HEAD COVER11213-15070
12108OIL FILLER CAP SUB-ASSY12180-15010 · 12180-15011 · 12180-16020 · 12180-75021
12108AGASKET (FOR OIL FILLER CAP)90430-37140
