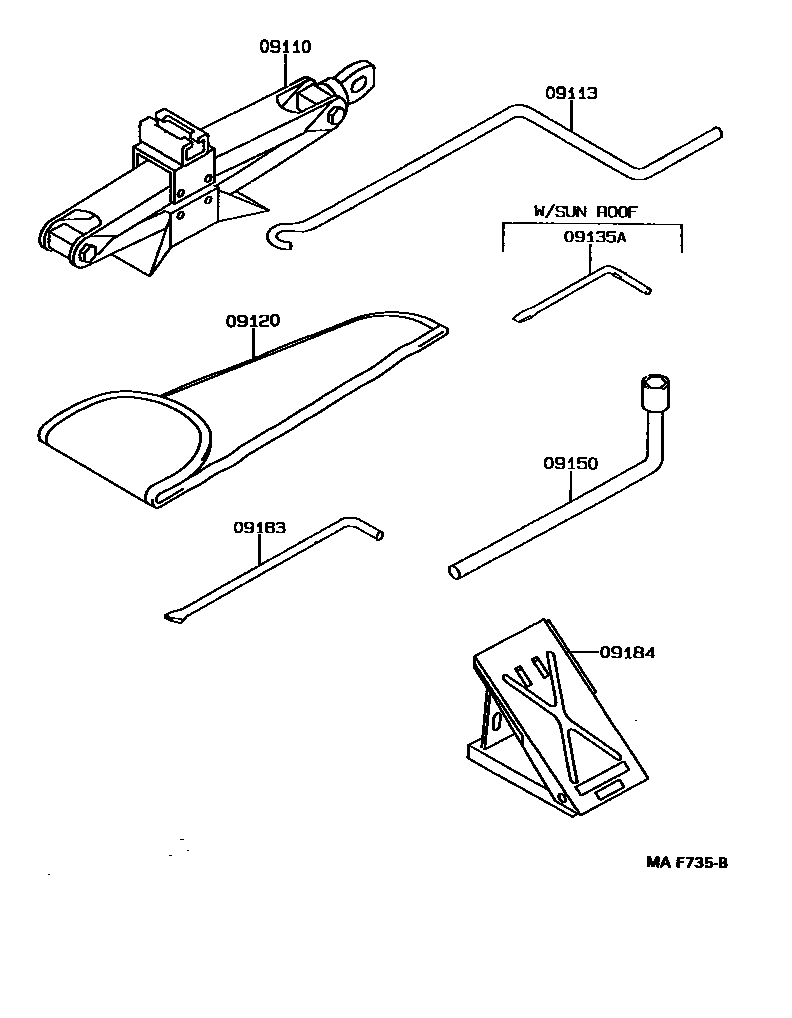

Toyota COROLLA Standard Tools — Figure 0901
Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-03011 · 09111-12090 · 09111-12100 · 09111-12130 · 09111-12140 |
| 09113 | Jack Handle | 09113-12010 · 09113-12020 |
| 09120 | Tool Bag | 09120-01020 · 09120-32010 |
| 09135A | screwdriver tip | 09135-00012 |
| 09150 | Wheel Nut Wrench | 09150-01010 · 09150-02020 · 09150-26010 · 09150-40010 |
| 09183 | Wheel Cap Remover | 09183-00010 · 09183-01020 |
| 09184 | Wheel Chock | 09184-00010 |
