Toyota COROLLA 车门电机和车门电磁阀 — Figure 8511

Toyota COROLLA EPC diagram 8511, 车门电机和车门电磁阀, with 2 images and 9 PNC and OE references.

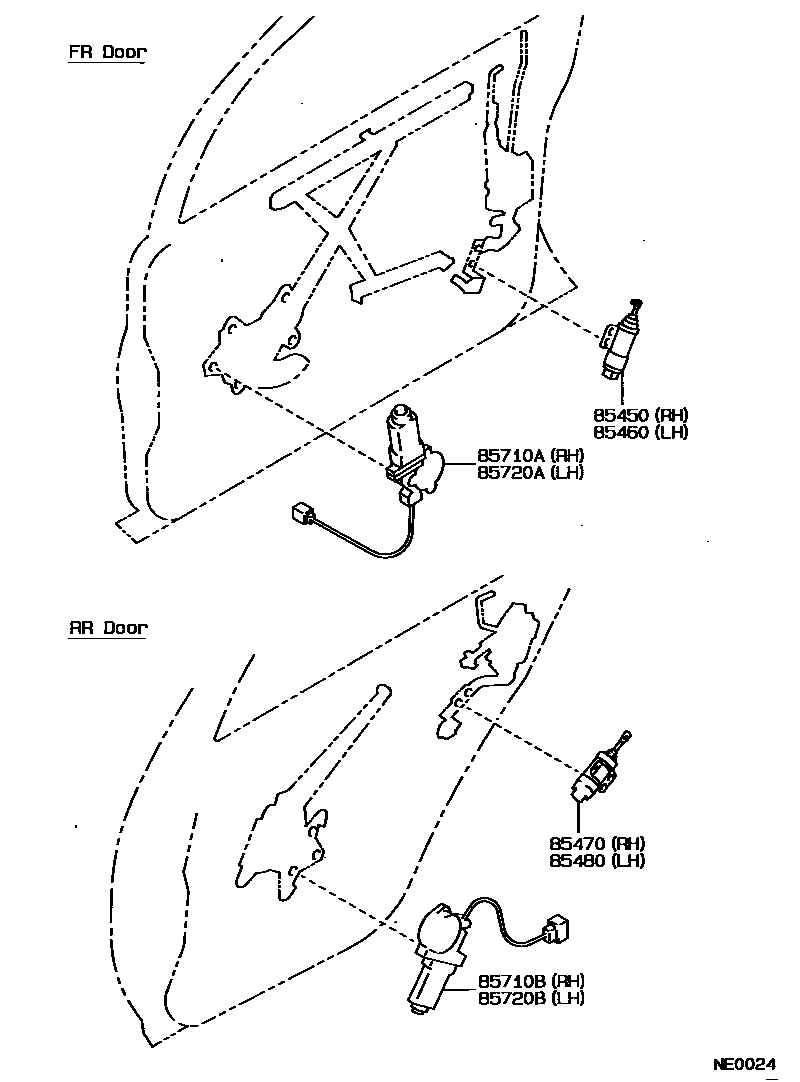

Toyota COROLLA 车门电机和车门电磁阀 EPC diagram — NE0024
车门电机和车门电磁阀 — NE0024 (198708 – 999999)
Toyota COROLLA 车门电机和车门电磁阀 EPC diagram — NE0904
车门电机和车门电磁阀 — NE0904 (198802 – 199009)

PNC and OE references

PNCPart nameOE numbers
85450Right front door control solenoid valve assembly85450-12220
85460Left front door control solenoid valve assembly85450-12230
85470Right rear door control solenoid valve assembly85450-12260
85480Left rear door control solenoid valve assembly85450-12270
85490Back door control solenoid valve assembly85450-12280
85710ARight front electric window lift motor assembly85710-12060
85710BRight rear electric window lift motor assembly85710-12080
85720ALeft front electric window lift motor assembly85720-12060
85720BLeft rear electric window lift motor assembly85720-12070
