Toyota COROLLA 后清洗器 — Figure 8504

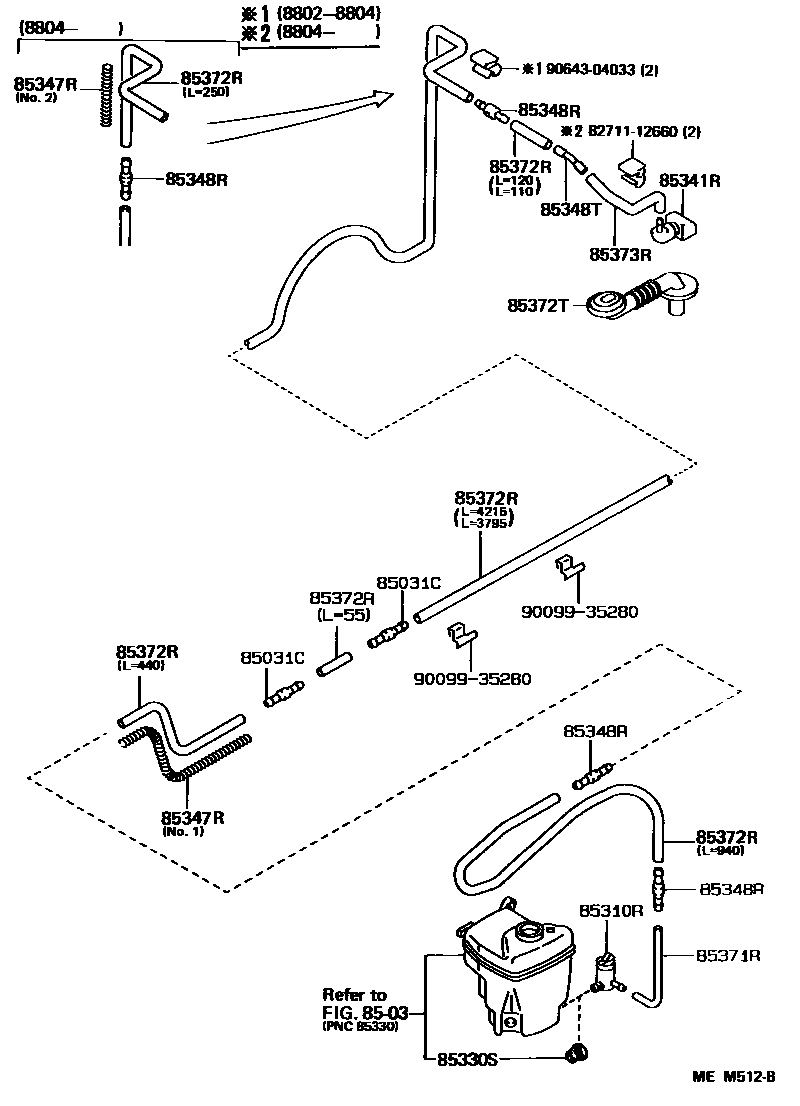

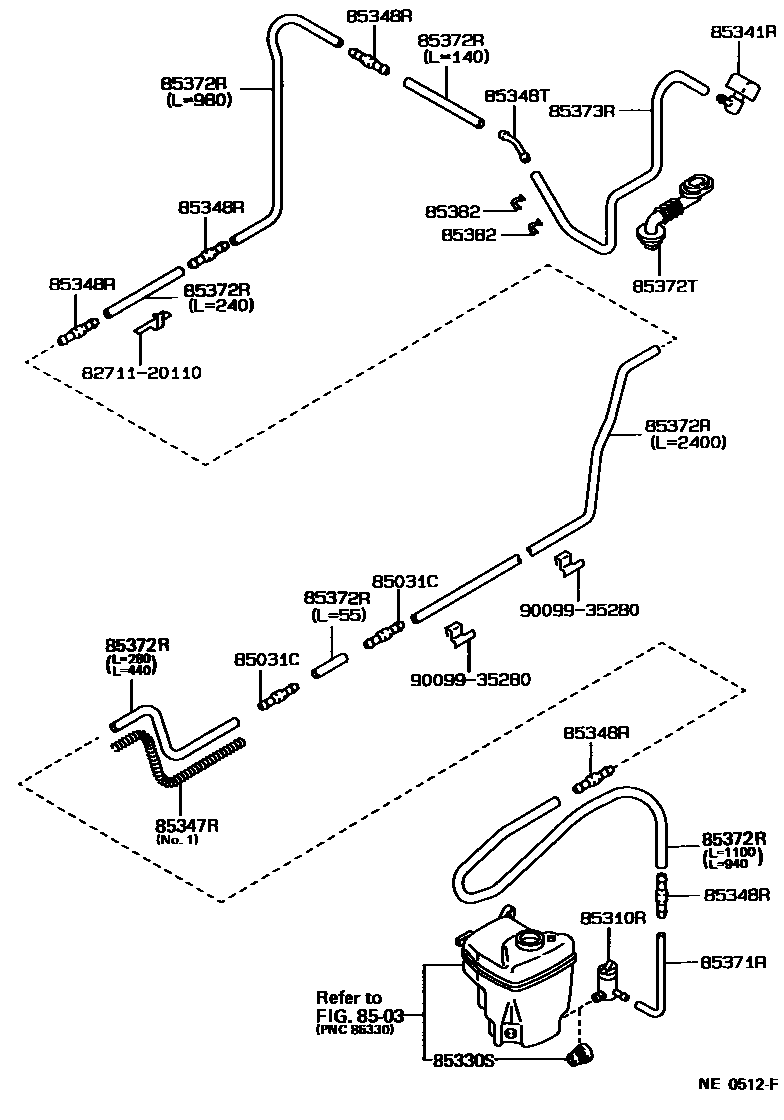

Toyota COROLLA EPC diagram 8504, 后清洗器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031C | Cleaner valve sub-assembly | 85031-30010 |
| 85310R | Rear washer motor assembly | 85310-12170 |
| 85330S | Rear washer fluid tank bushing | 90099-32089 |
| 85341R | Cleaner nozzle assembly | 85341-12240 · 85341-13030 |
| 85347R | spring | 85347-12150 · 85347-13100 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348T | No. 2 rear washer hose connector | 85355-20080 |
| 85371R | Rear washer hose (from motor to connector) | 90099-33299 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 90099-33080 · 90099-33185 · 90099-33299 · 90099-33410 · 90099-33420 · 90099-33435 · 90099-33533 · 90099-33852 · 90446-07001 |
| 85372T | Cleaner seal | 85372-12020 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-33080 · 90099-33299 |
| 85382 | Rear washer hose cover | 85382-13010 |
