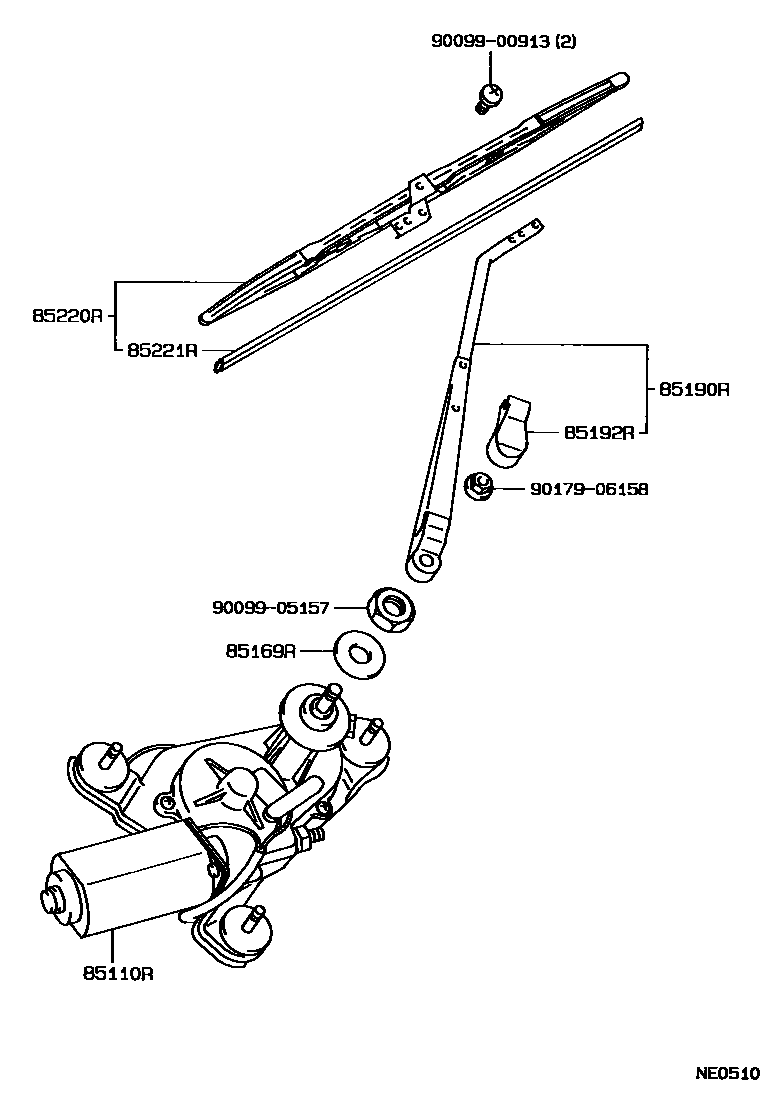

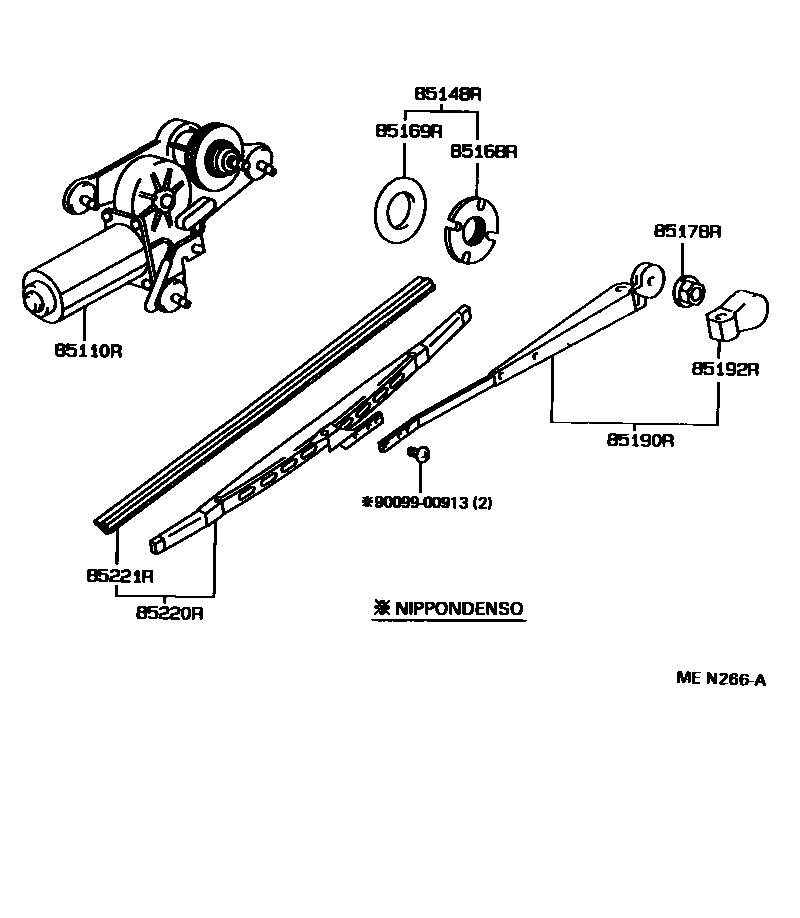

Toyota COROLLA 后刮水器 — Figure 8502
Toyota COROLLA EPC diagram 8502, 后刮水器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85110-12470 · 85110-13050 |
| 85148R | Rear wiper link pivot nut with gasket seal | 85148-12020 |
| 85168R | No. 1 rear wiper link pivot nut | 90179-22013 |
| 85169R | No. 1 rear wiper link pivot washer | 85179-16150 · 90210-28002 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85190R | Rear wiper arm assembly | 85190-12870 · 85190-13070 · 85190-13071 · 85190-1A060 · 85190-1A061 |
| 85192R | Rear wiper arm cover | 85192-12870 · 85192-13060 |
| 85220R | Rear wiper blade assembly | 85220-22530 · 85220-22531 · 85220-22620 · 85220-22621 · 85220-22640 |
| 85221R | Rear wiper blade | 85221-12160 · 85221-13010 · 85221-16070 |
