Toyota COROLLA 倒车灯 — Figure 8112

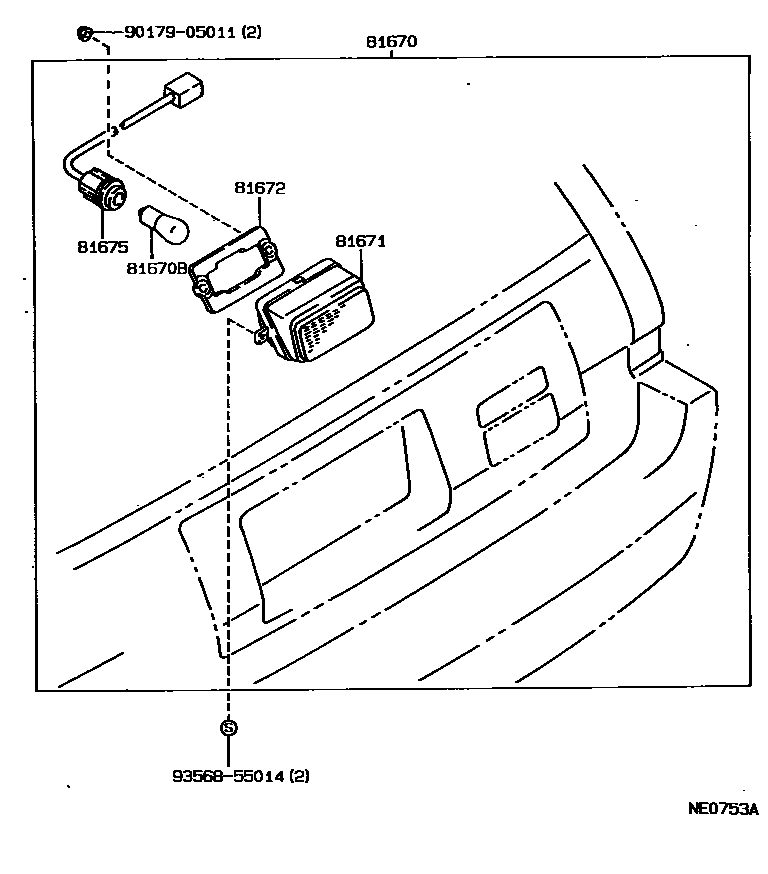

Toyota COROLLA EPC diagram 8112, 倒车灯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670 | Right reversing light assembly | 81670-12030 |
| 81670B | Bulb (for reversing lights) | 99132-11270 |
| 81671 | Right reversing light cover | 81671-12030 |
| 81672 | Right reversing light cover gasket | 81672-12010 |
| 81675 | Reversing light holder and wiring harness | 81675-12030 |
