Toyota COROLLA 后组合灯 — Figure 8111

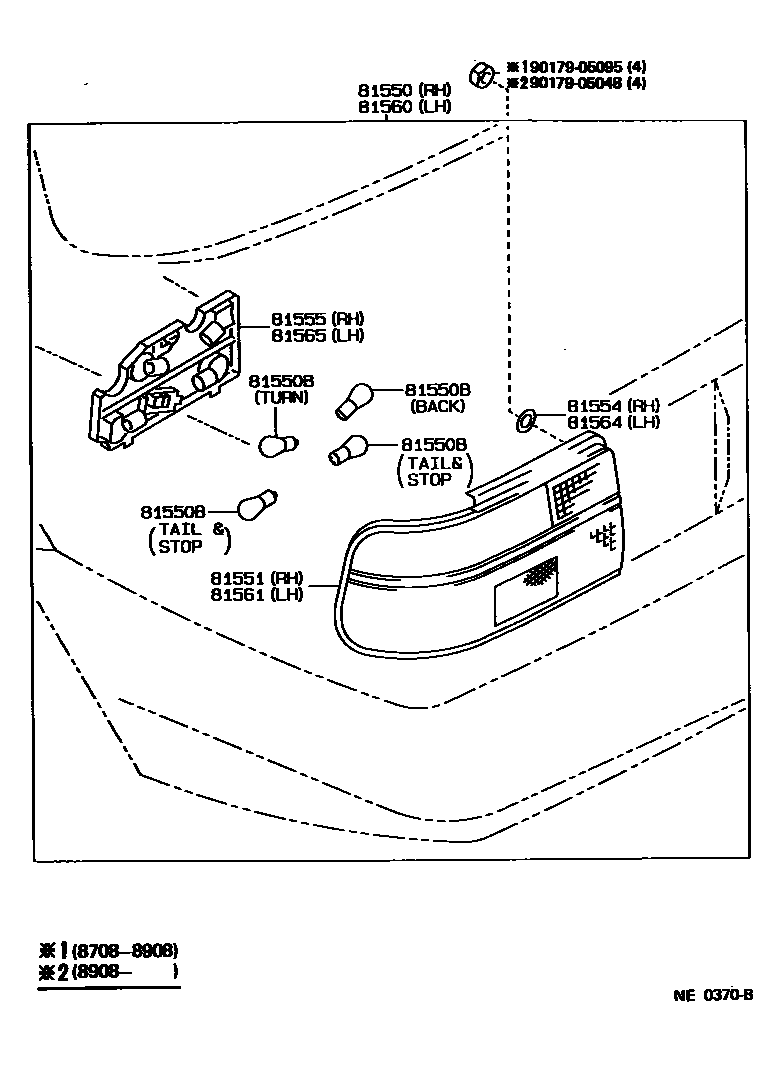

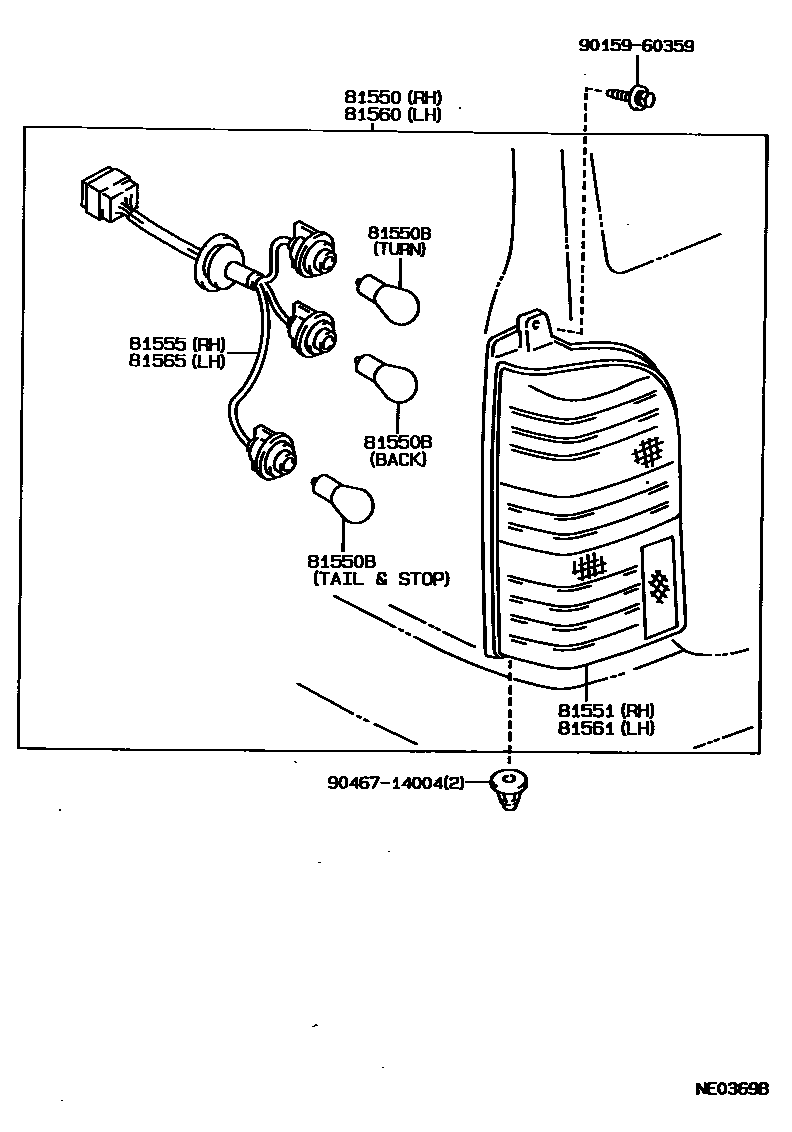

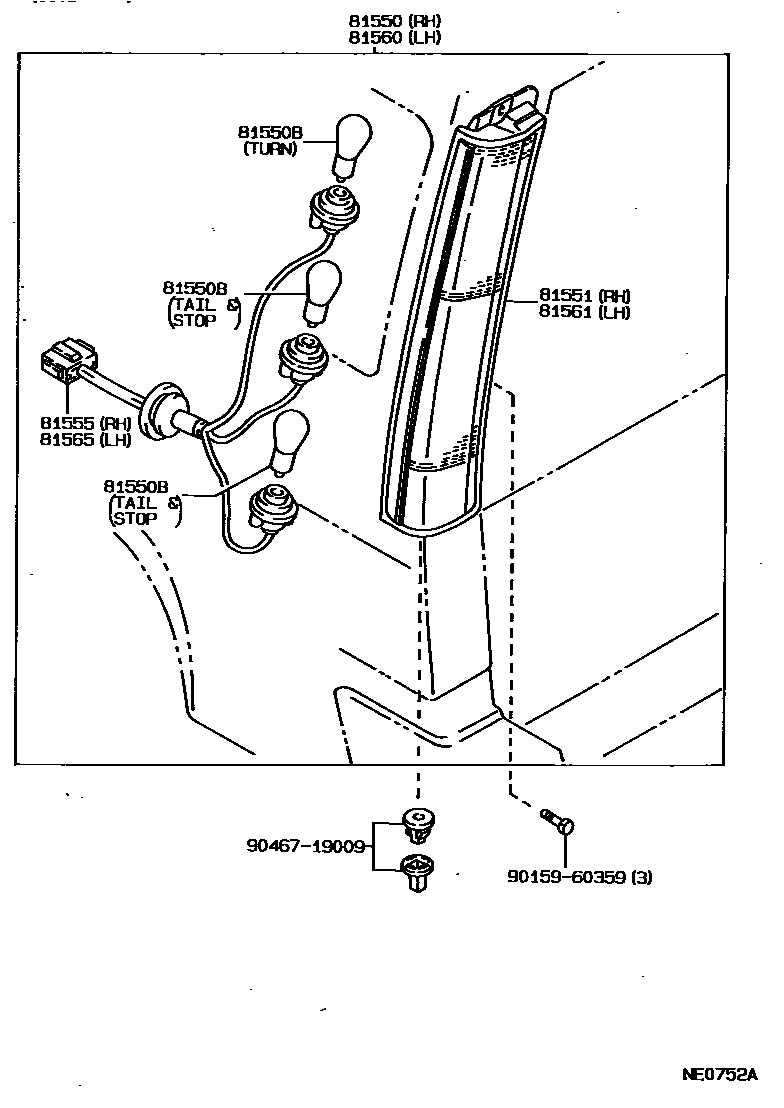

Toyota COROLLA EPC diagram 8111, 后组合灯, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-13310 · 81550-13311 · 81550-1A370 · 81550-1A440 · 81550-1A460 · 81550-1A461 · 81550-1A620 |
| 81550B | Bulb (for rear combination lights) | 99132-11270 · 99132-21270 |
| 81551 | Right rear combination lamp shade | 81551-13310 · 81551-1A370 · 81551-1A440 · 81551-1A450 · 81551-1A451 · 81551-1A620 |
| 81554 | Right rear combination lamp body gasket | 81554-1A370 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13310 · 81555-1A370 · 81555-1A460 · 81555-1A620 |
| 81560 | Left rear combination light assembly | 81560-13310 · 81560-13311 · 81560-1A060 · 81560-1A400 · 81560-1A430 · 81560-1A431 · 81560-1A450 |
| 81561 | Left rear combination lamp shade | 81561-13310 · 81561-1A060 · 81561-1A400 · 81561-1A420 · 81561-1A421 · 81561-1A450 |
| 81564 | Left rear combination lamp body gasket | 81554-1A370 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13310 · 81555-1A460 · 81565-1A060 · 81565-1A450 |
