Toyota COROLLA 前示宽灯 — Figure 8104

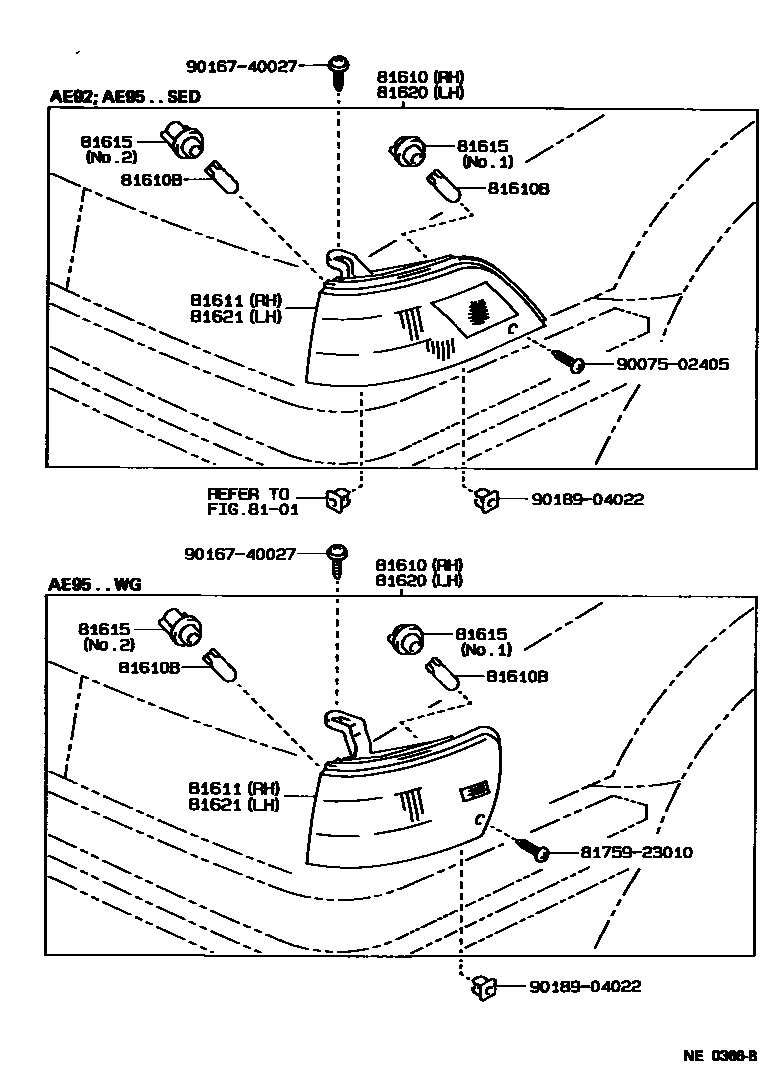

Toyota COROLLA EPC diagram 8104, 前示宽灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-12410 · 81610-12440 |
| 81610B | Bulbs (for parking lights and side lights) | 90981-11020 |
| 81611 | Right parking light and width indicator light cover | 81611-12410 · 81611-12440 |
| 81615 | Width light lamp holder and wiring harness | 90075-99003 · 90075-99007 |
| 81620 | Left parking light and width indicator light assembly | 81620-12410 · 81620-12440 |
| 81621 | Left parking light and width indicator light cover | 81621-12410 · 81621-12440 |
