Toyota COROLLA 前转向灯 — Figure 8103

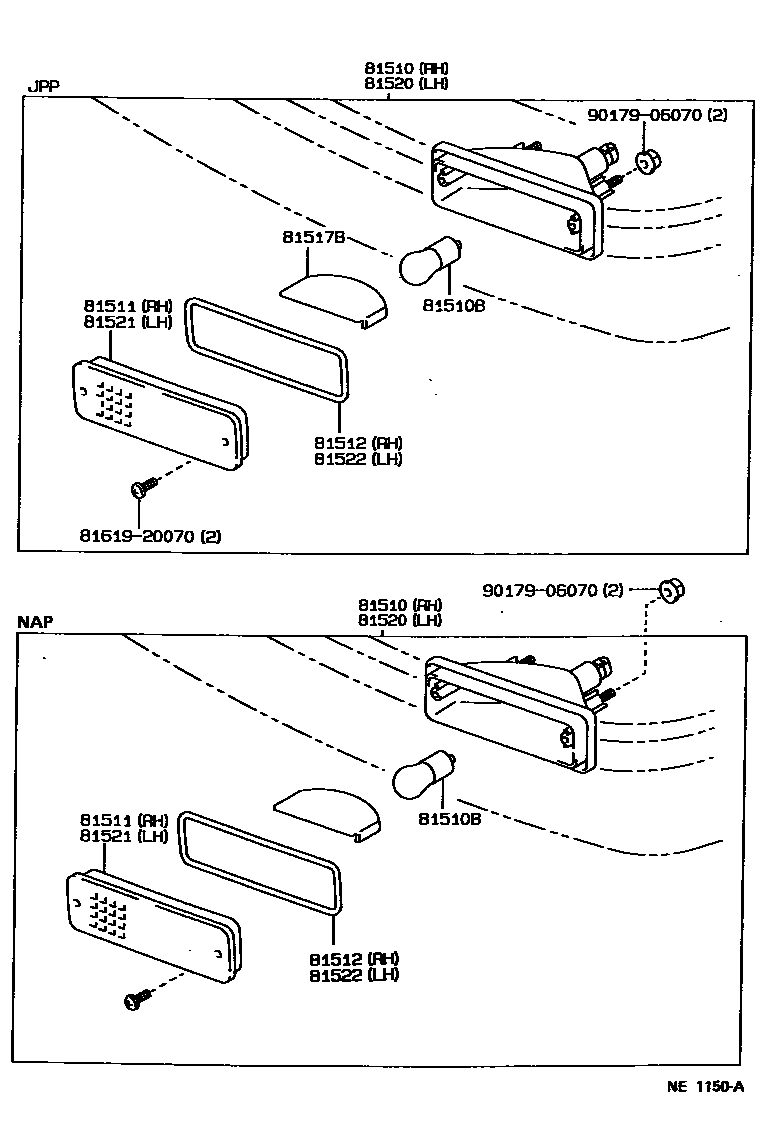

Toyota COROLLA EPC diagram 8103, 前转向灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-80055 · 81510-80081 |
| 81510B | Bulb (for front turn signal lamp) | 90080-81010 · 99132-11270 |
| 81511 | Right front turn signal lamp cover | 81511-12630 · 81511-12640 |
| 81512 | Right front turn signal lamp housing gasket | 81512-12630 |
| 81517B | Front turn signal lamp cover | 81517-22220 |
| 81520 | Left front turn signal lamp assembly | 81520-80055 · 81520-80081 |
| 81521 | Left front turn signal lamp cover | 81521-12510 · 81521-12630 |
| 81522 | Left front turn signal lamp housing gasket | 81512-12630 |
